Home >> Land Rover >> 2012 >> LR4 (LA) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Start / Stop Switch >> C2453SL Switch-Start-Stop
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

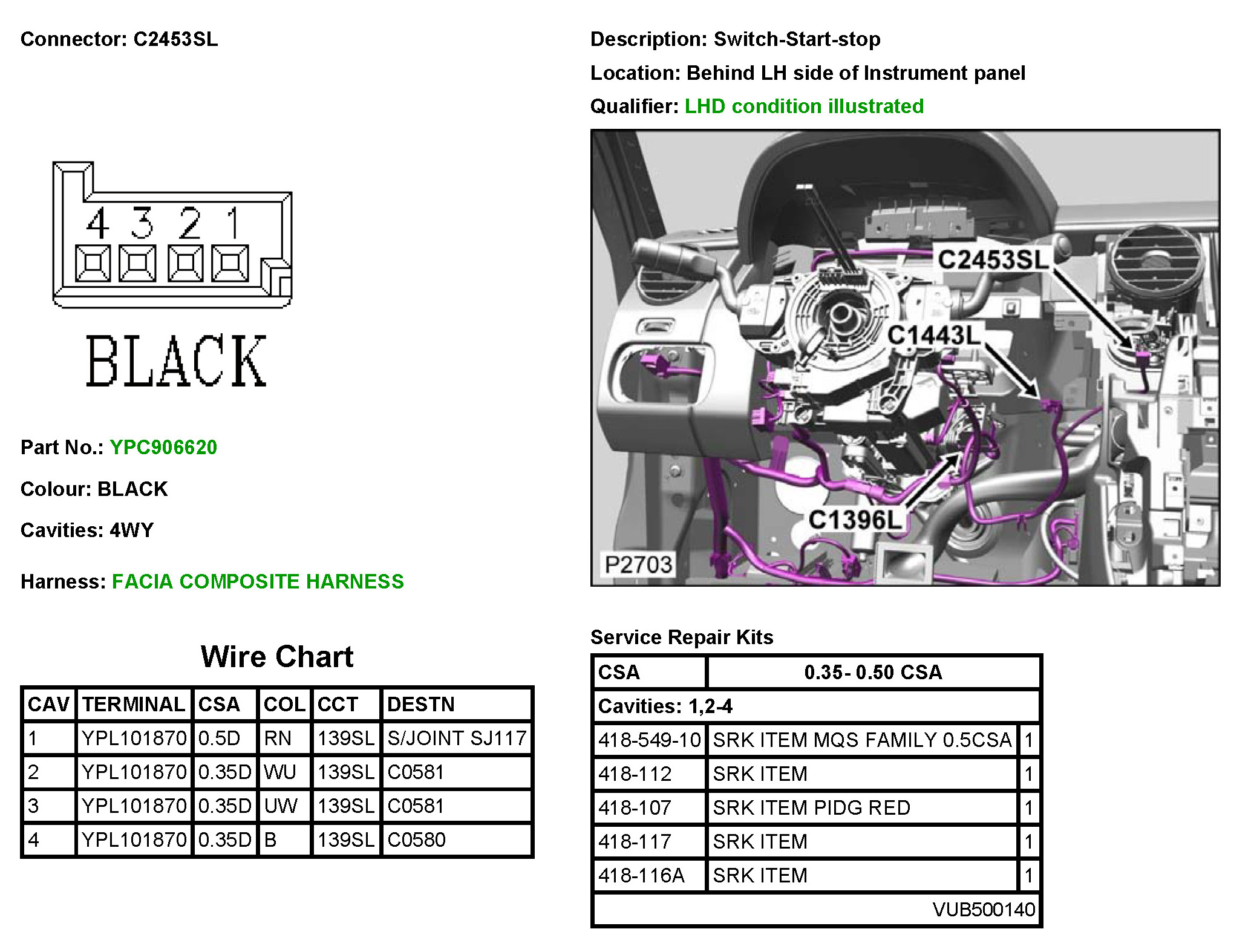

C2453SL Switch-Start-Stop



C2453SL
