Home >> Land Rover >> 2012 >> LR4 (LA) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Battery Control Module >> C3180R Module-Battery Monitoring System
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

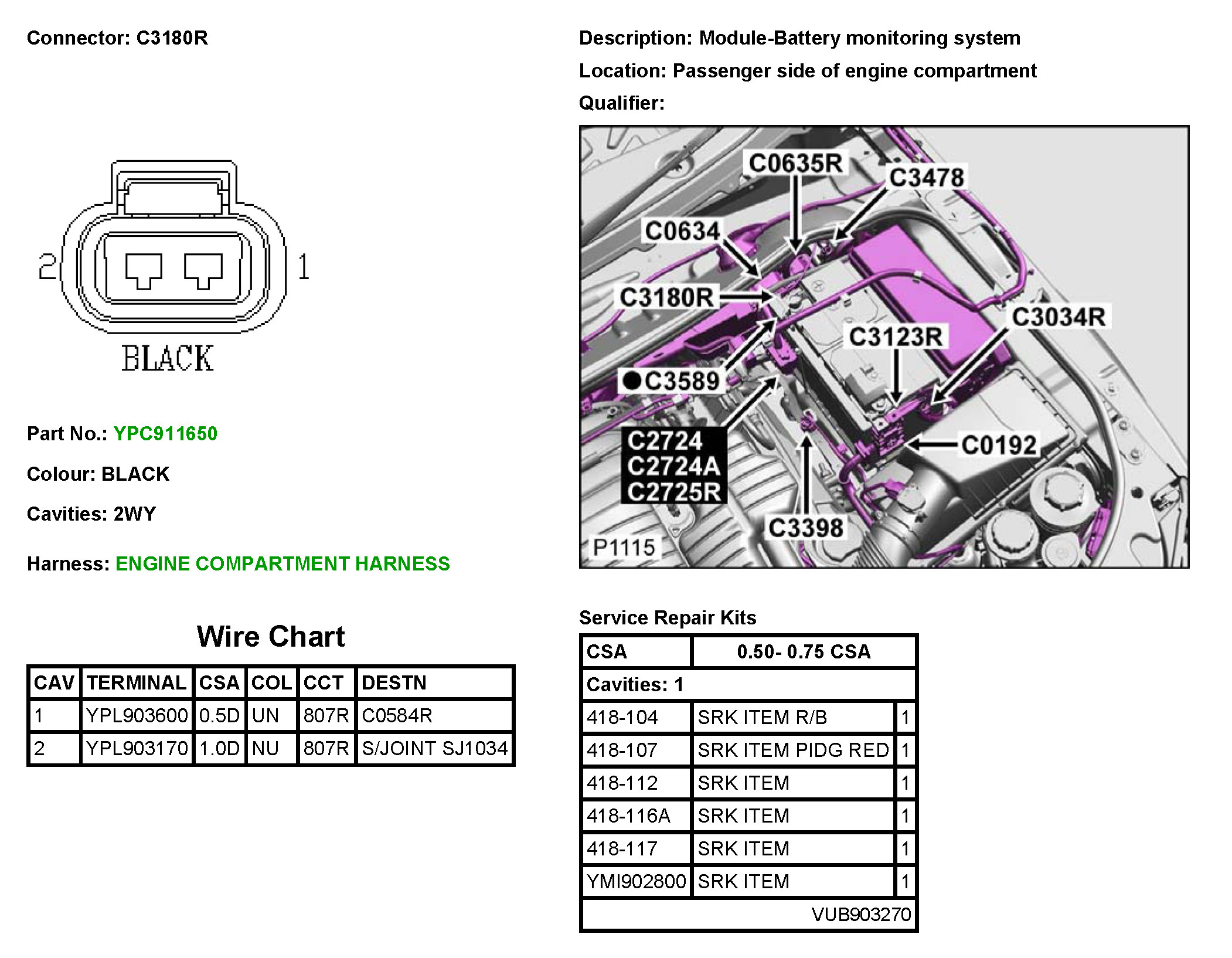

C3180R Module-Battery Monitoring System



C3180R
