Home >> Land Rover >> 2012 >> LR4 (LA) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> C0261R Module-Air Bag Passenger
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

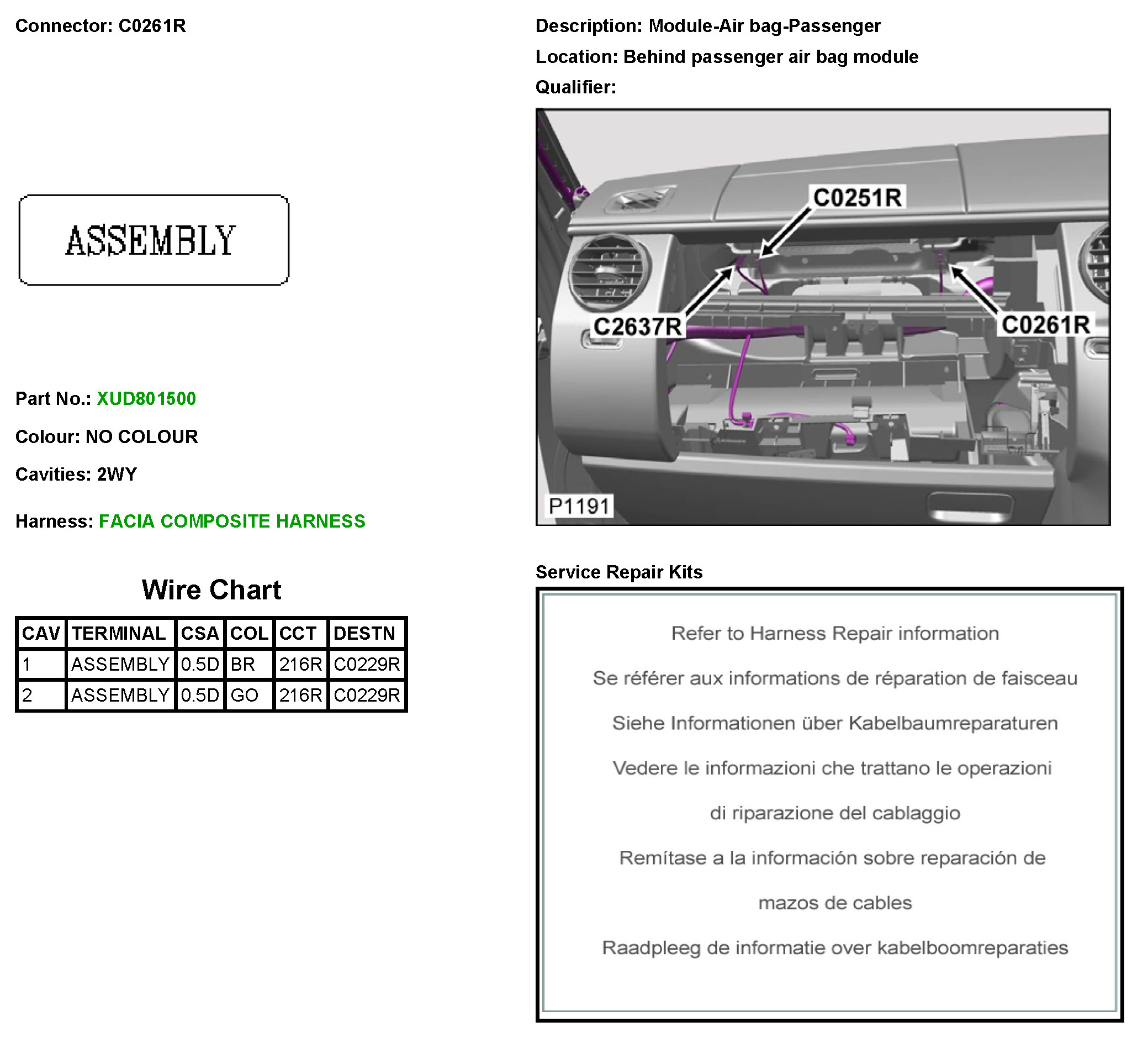

C0261R Module-Air Bag Passenger



C0261R
