Module Controlled Functions





Module Controlled Functions

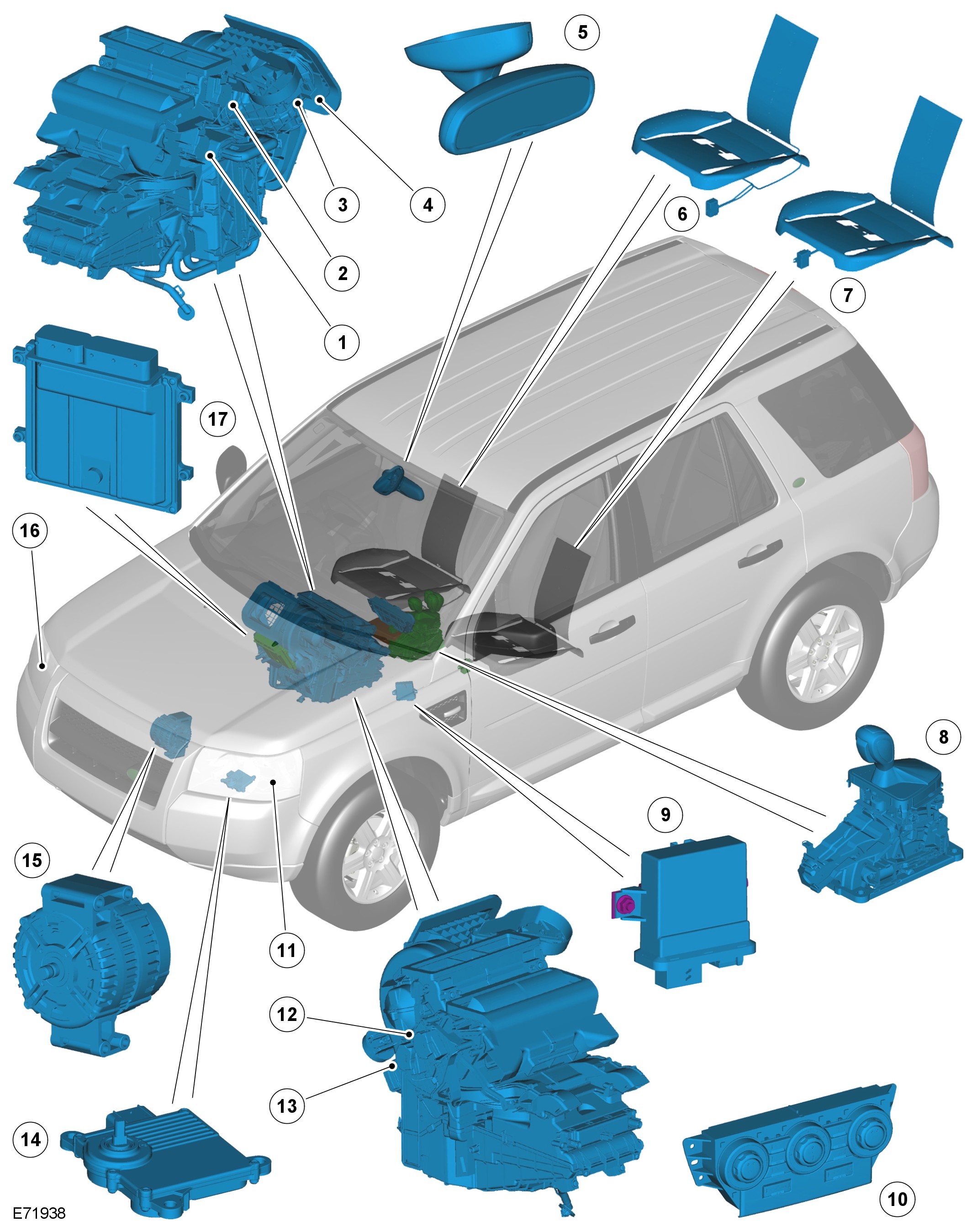

COMPONENT LOCATION - LIN BUS (SHEET 1 OF 2)

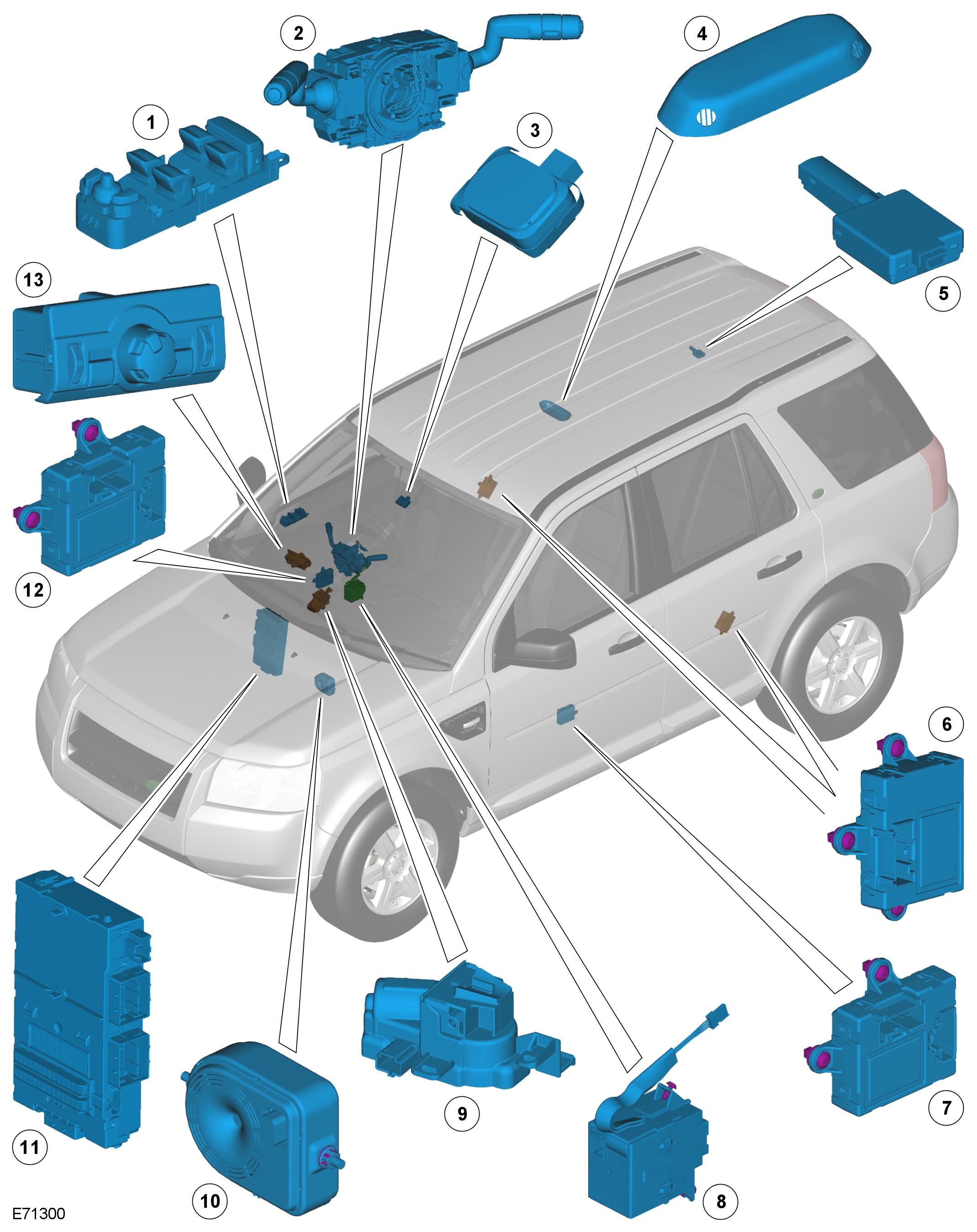

COMPONENT LOCATION - LIN BUS (SHEET 2 OF 2)

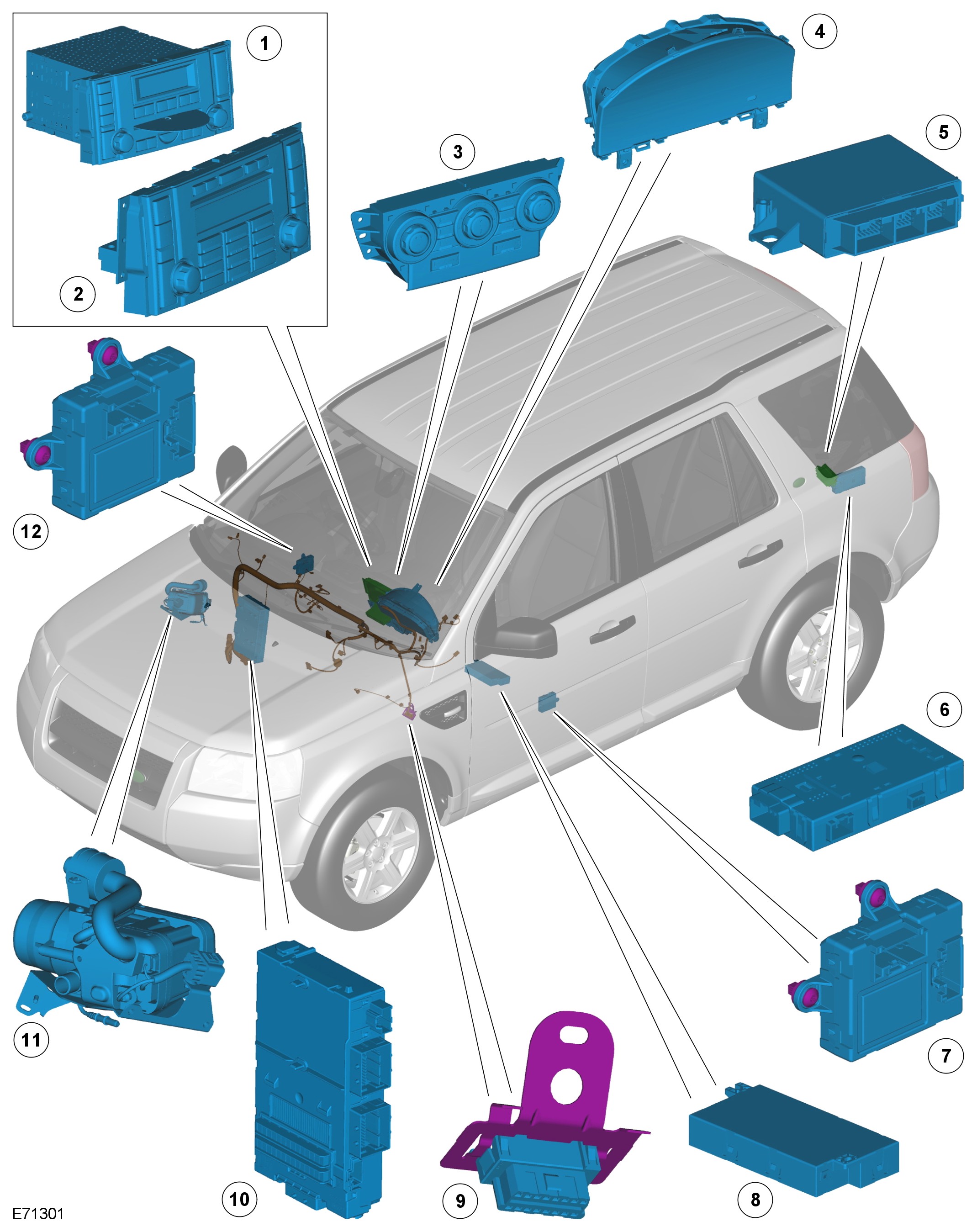

COMPONENT LOCATION - MEDIUM SPEED CAN BUS

NOTE:
NOTE: Left hand drive vehicle shown

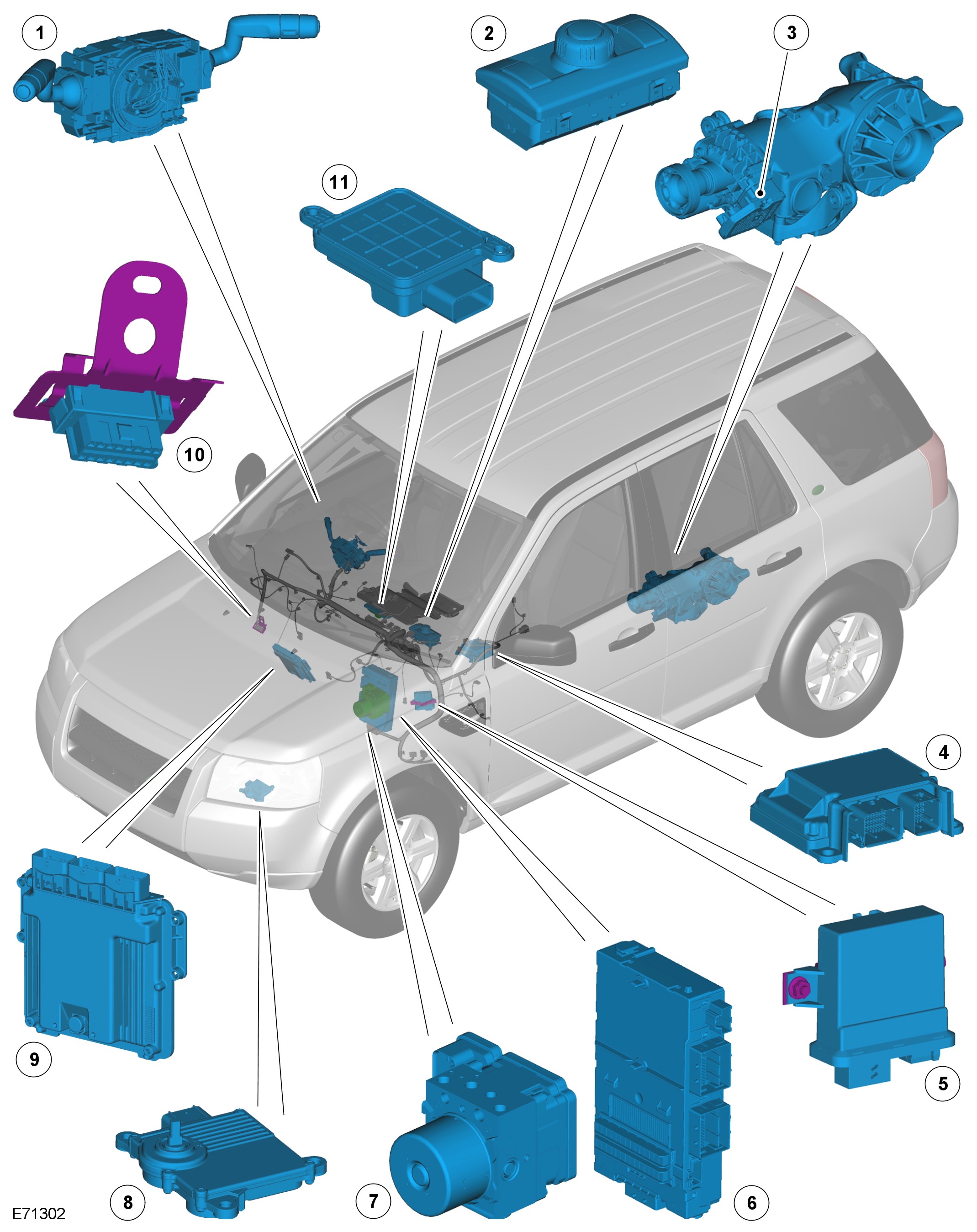

COMPONENT LOCATION - HIGH SPEED CAN BUS

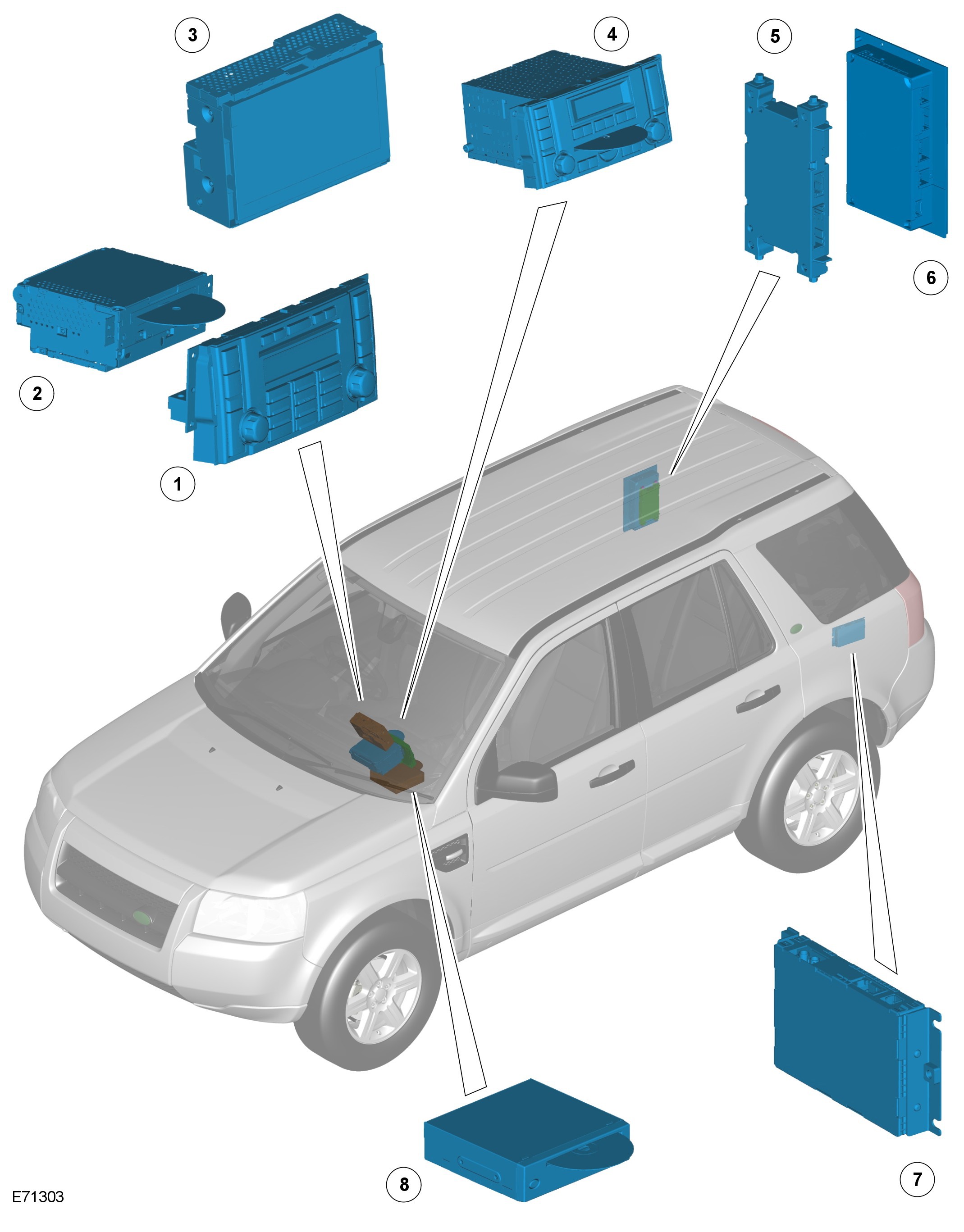

COMPONENT LOCATION - MOST









OVERVIEW
The vehicle electrical system comprises a number of control modules which are interconnected via several network systems.
The following network systems are used on the vehicle:
- High Speed Controller Area Network bus
- Medium speed CAN bus
- Local Interconnect Network (LIN) bus
- Media Orientated Systems Transport (MOST) system.
The CJB is the 'gateway' for the network systems which allows information to be exchanged between networks.
The entertainment system components are connected on a fiber optic MOST system. The MOST system can send and receive information to/from the other network systems via a 'gateway' in the Integrated Control Module.

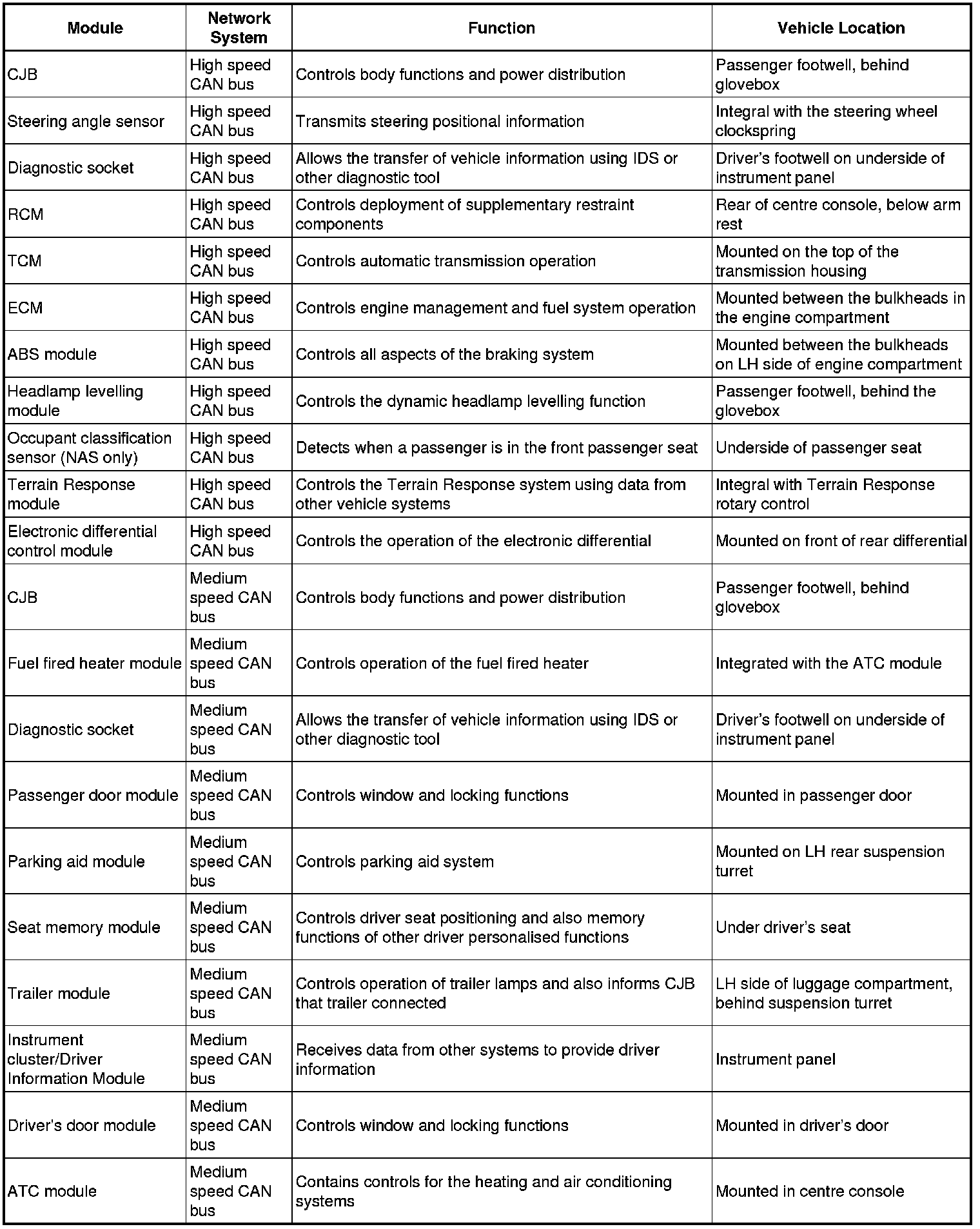

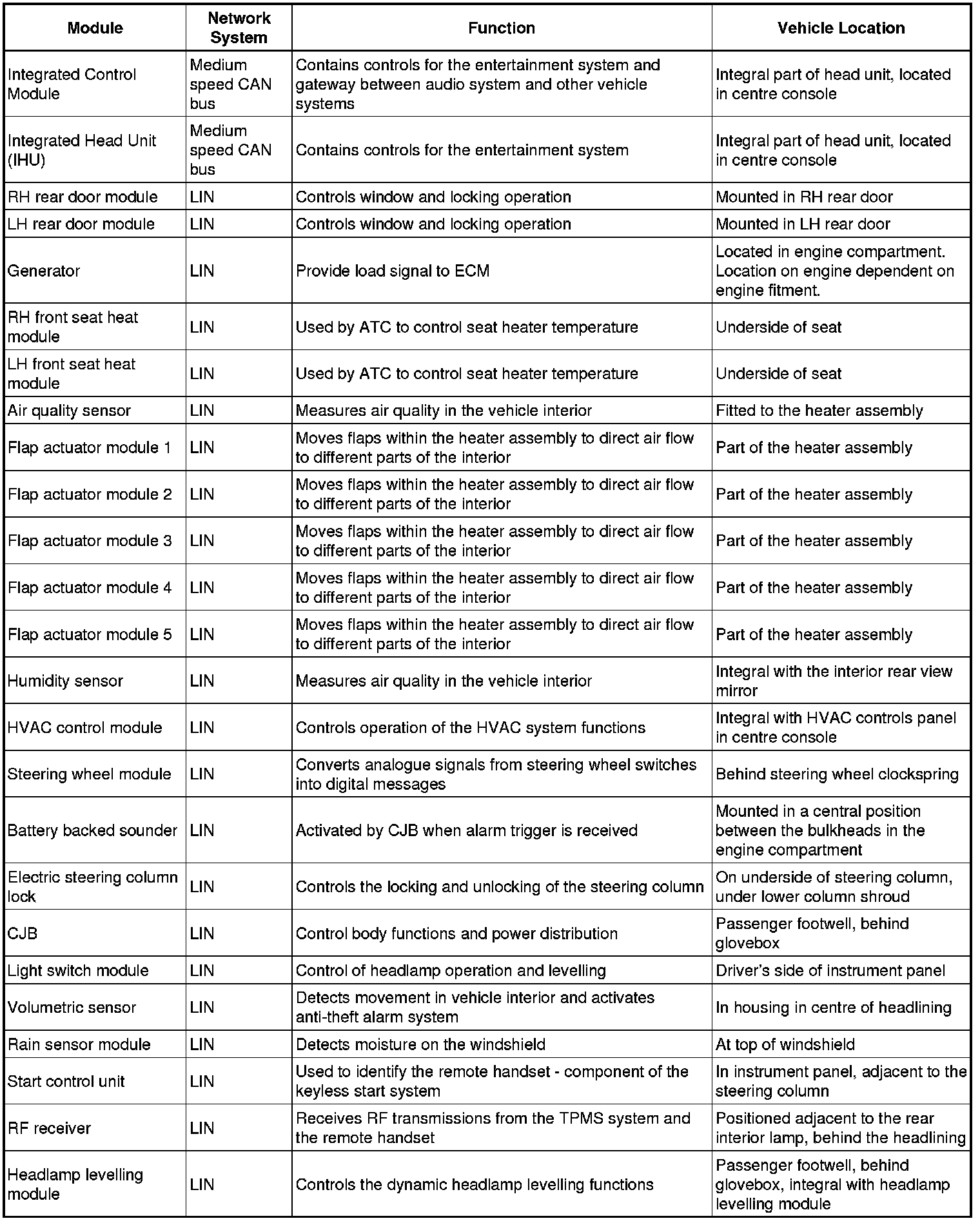

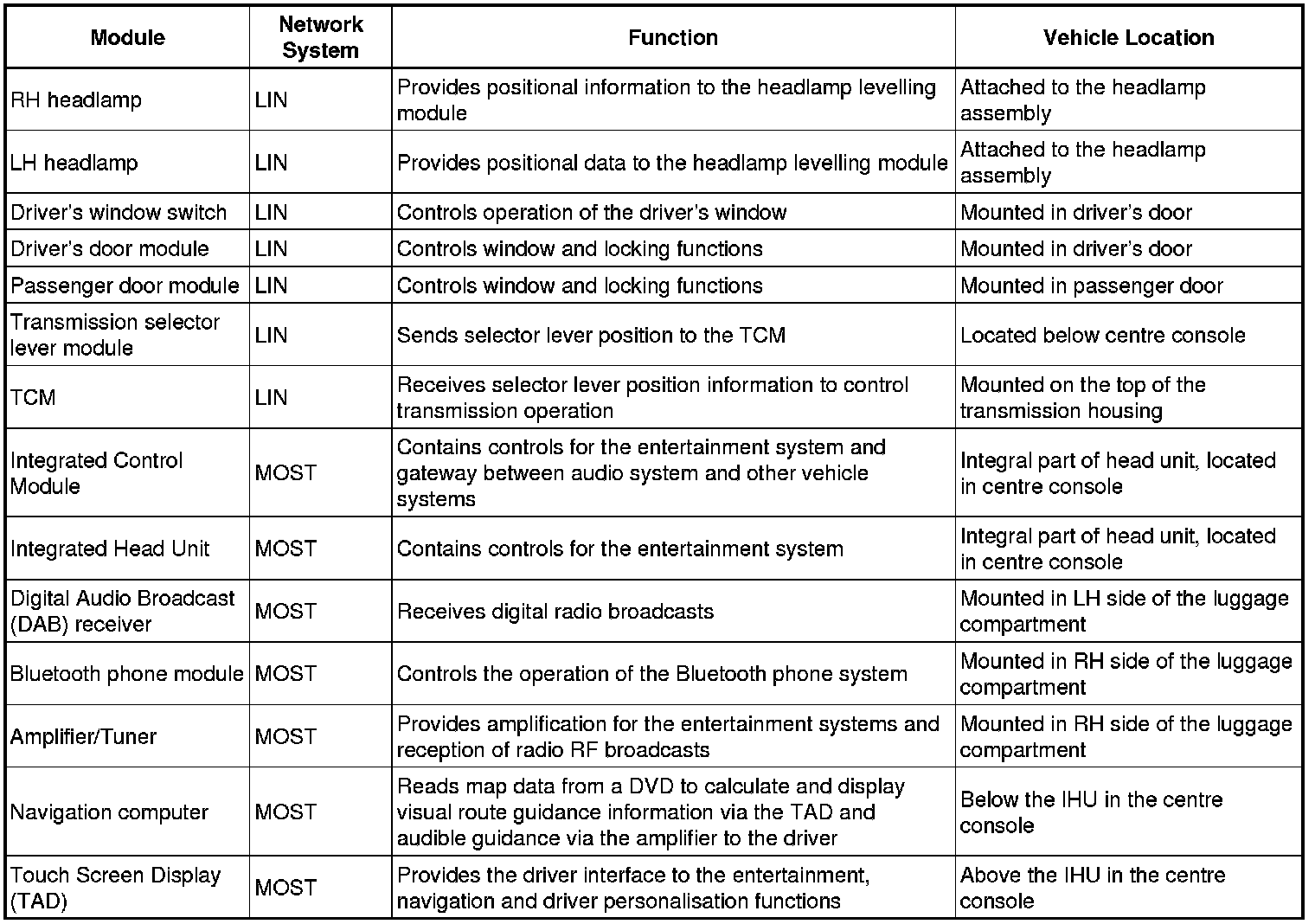

The following table shows each vehicle control module, the network system to which it is connected, its function and location in the vehicle.
