Engine

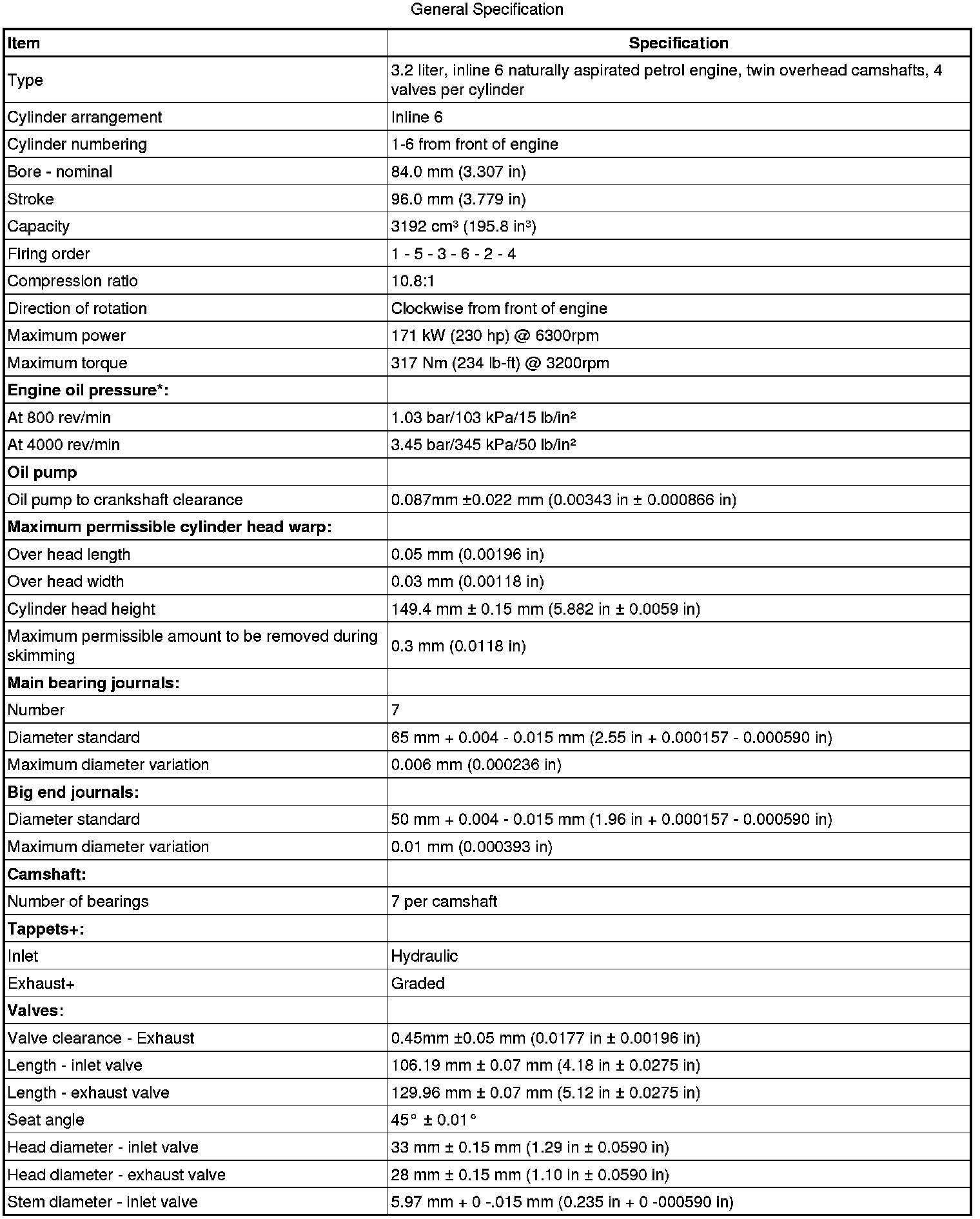

Specifications





The recommended oil change interval for ILSAC GF-3 is 5000 miles.













* Prior to checking the engine oil pressure, a road test of 6 miles (10 kilometers) must be carried out. Do not attempt to attain normal engine operating temperature by allowing the engine to idle.
+ There are 50 different thicknesses of graded tappet available ranging from 2.950mm to 3.685 mm (0.116 in to 0.145 in) rising in increments of 0.015 mm (0.0005 in).





* New nuts/bolts must be fitted

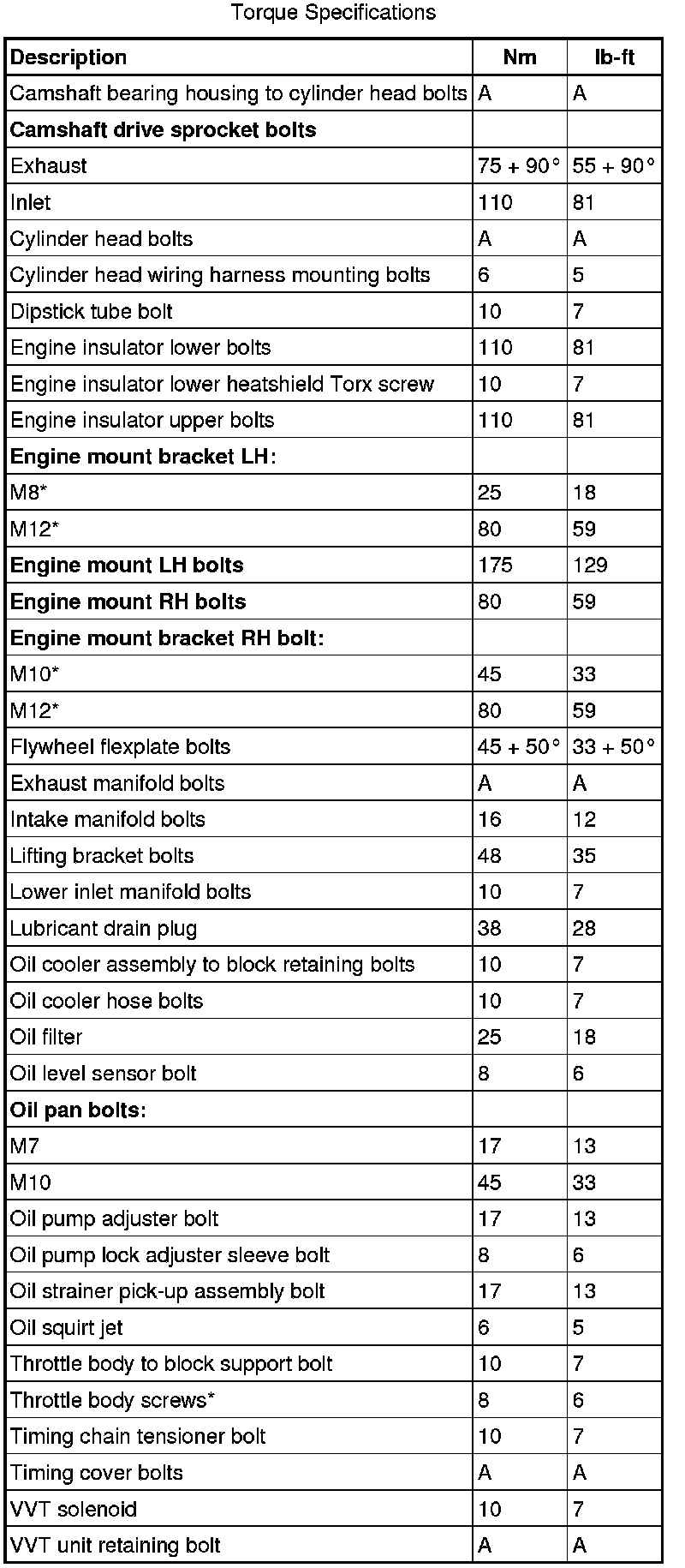

A = refer to procedure for correct torque sequence
