Component Location

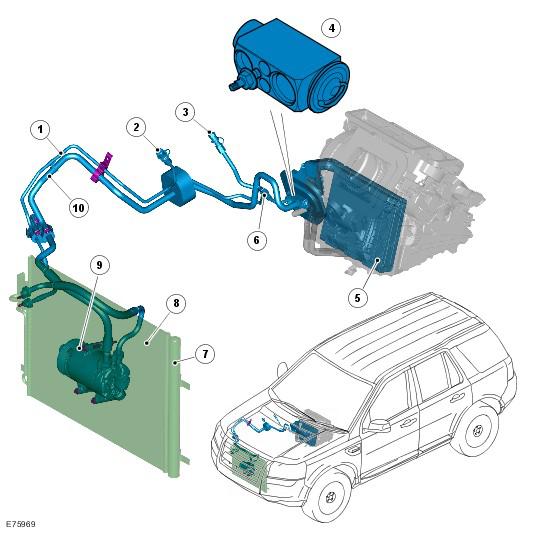

GJ0021344Courtesy of JAGUAR CARS, INC.
Item Number Description
1 High pressure line
2 High pressure servicing connection
3 Low pressure servicing connection
4 Thermostatic expansion valve
5 Evaporator
6 Refrigerant pressure sensor
7 Receiver/Drier
8 Condenser
9 Air Conditioning (A/C) compressor
10 Low pressure line
