Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Systems
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Memory Positioning Systems
Memory Control Module

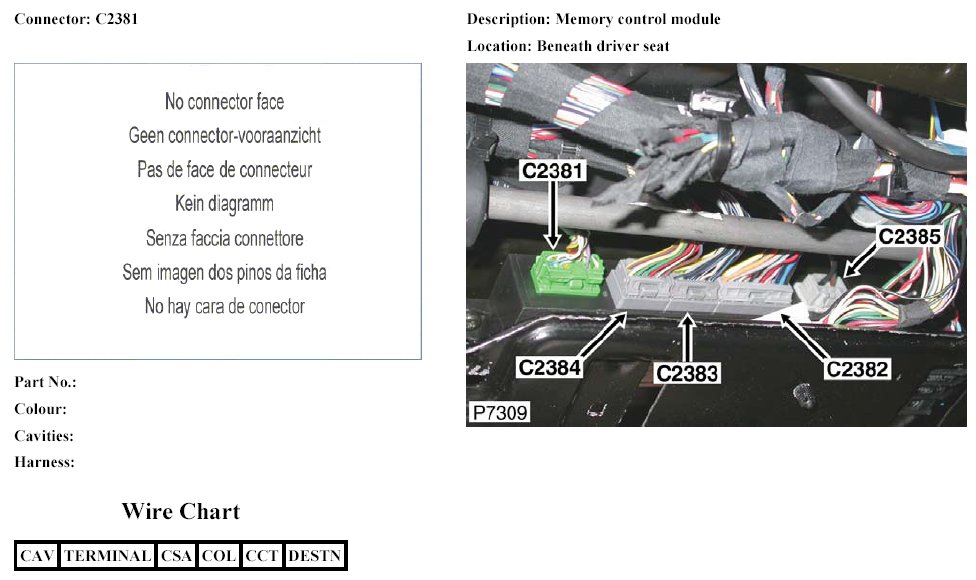

C2381:

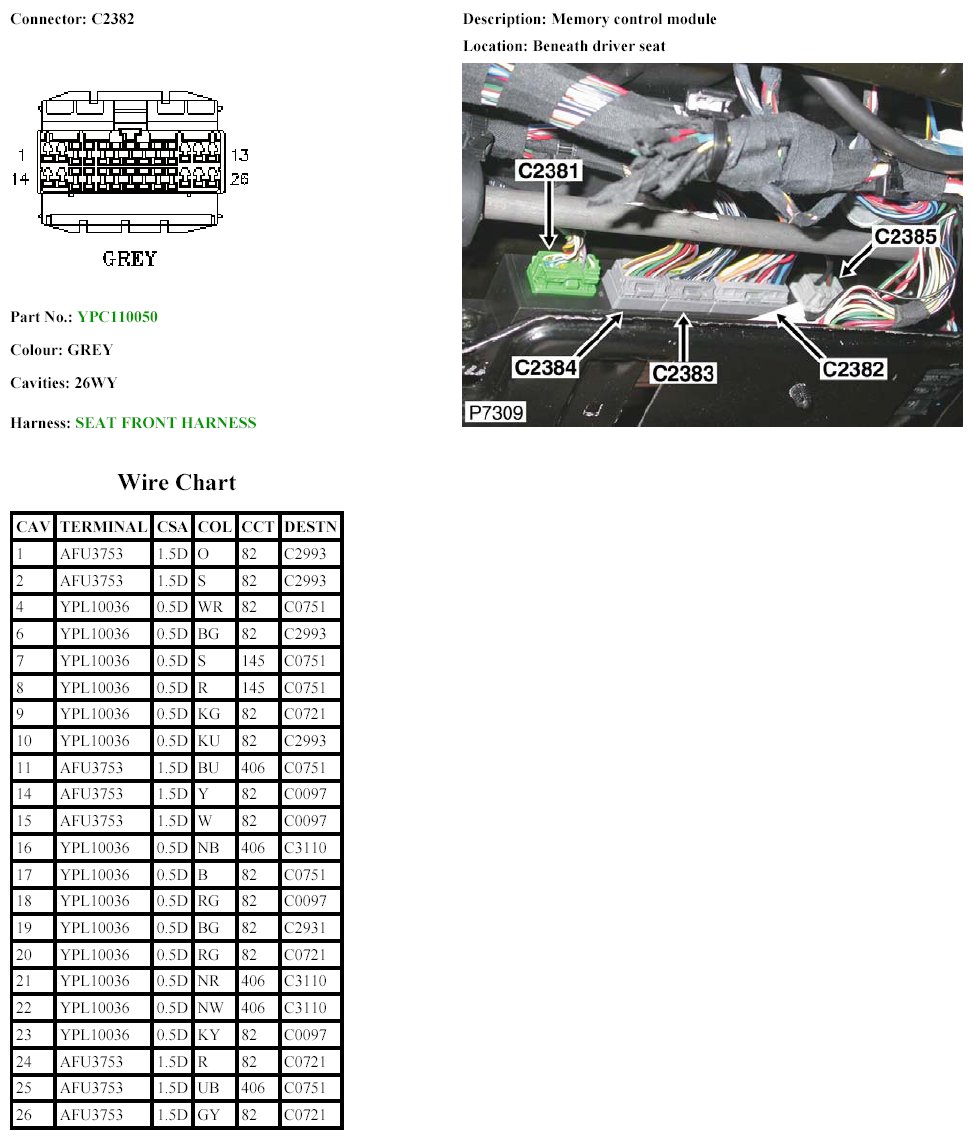

C2382:

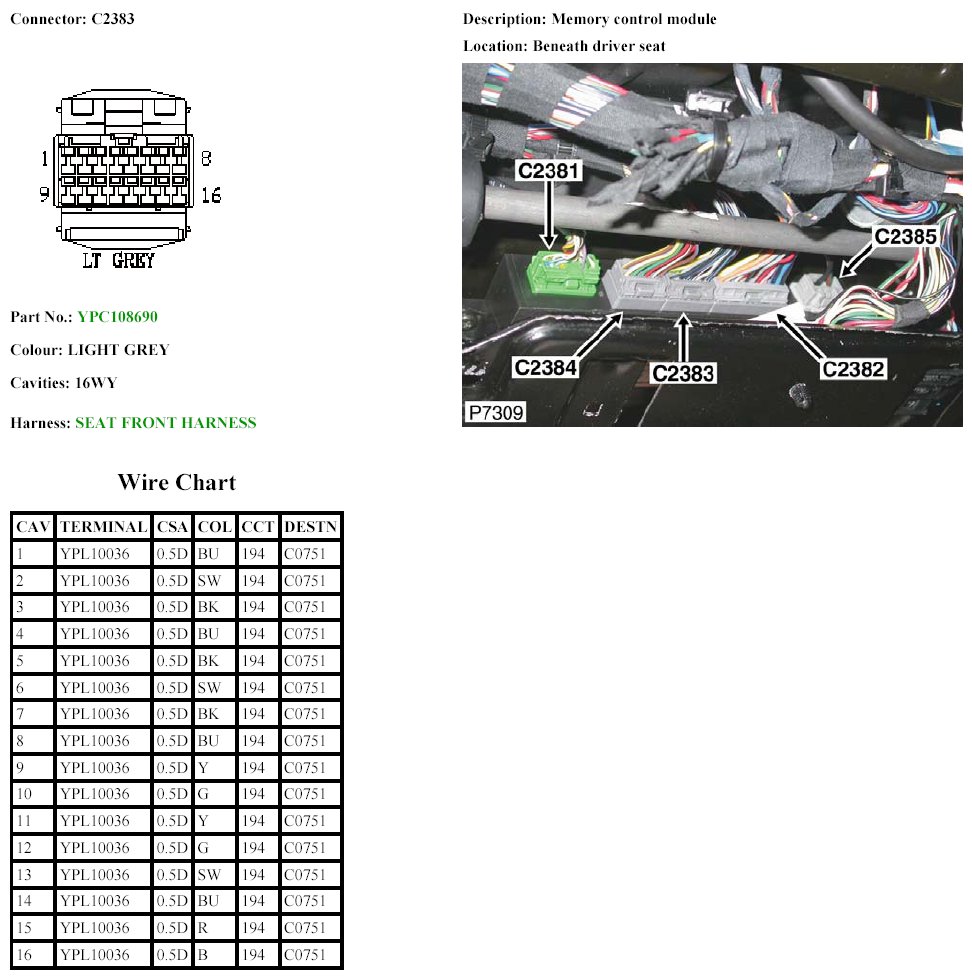

C2383:

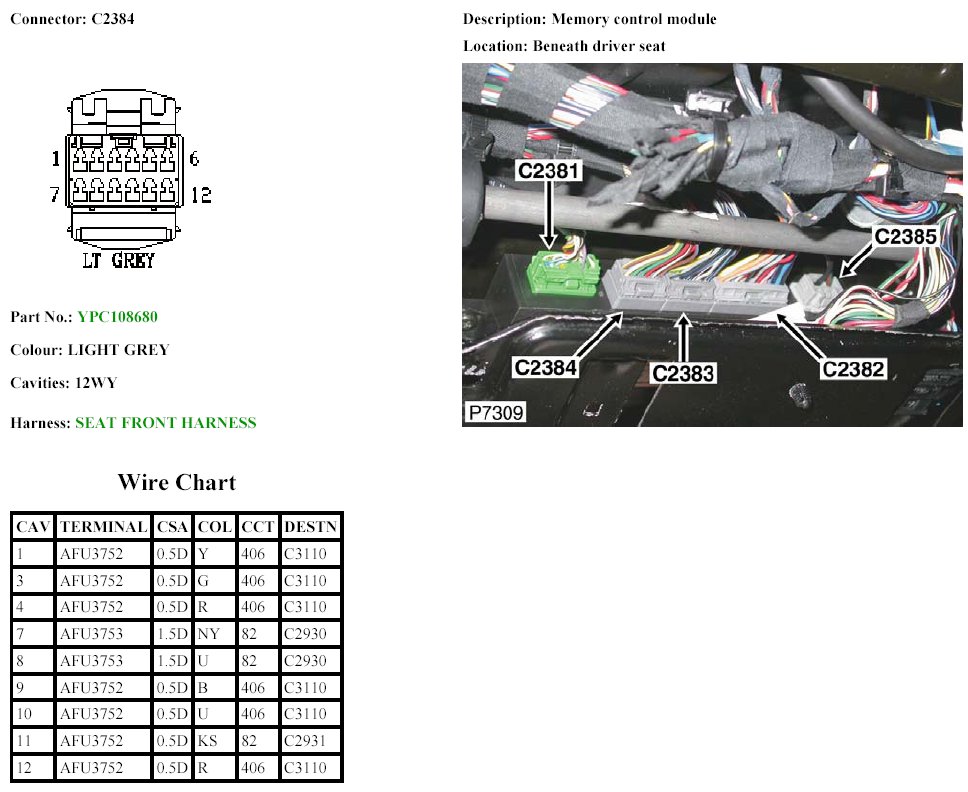

C2384:

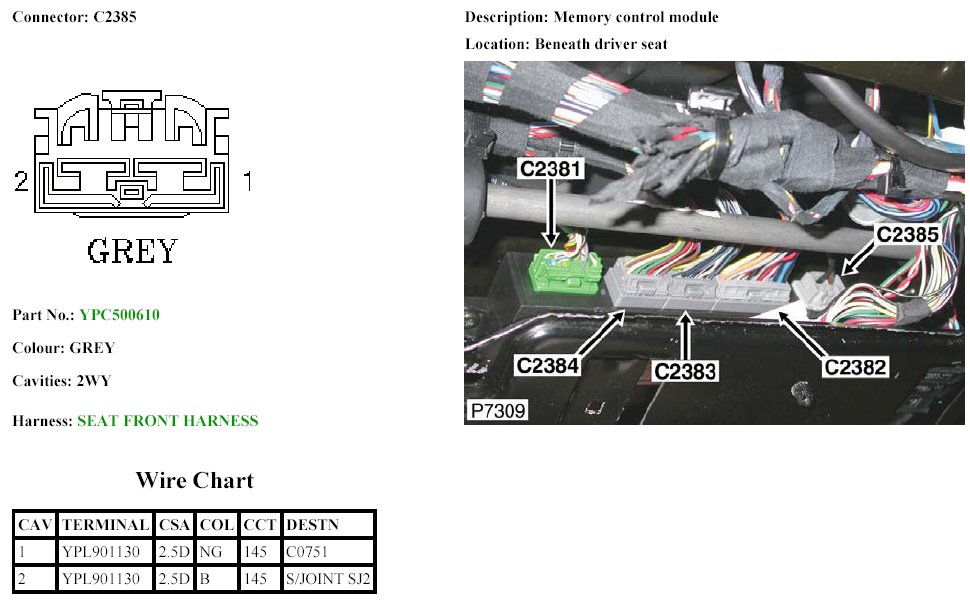

C2385:
