Home
>>
Land Rover
>>
2009
>>
Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump Control Unit
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

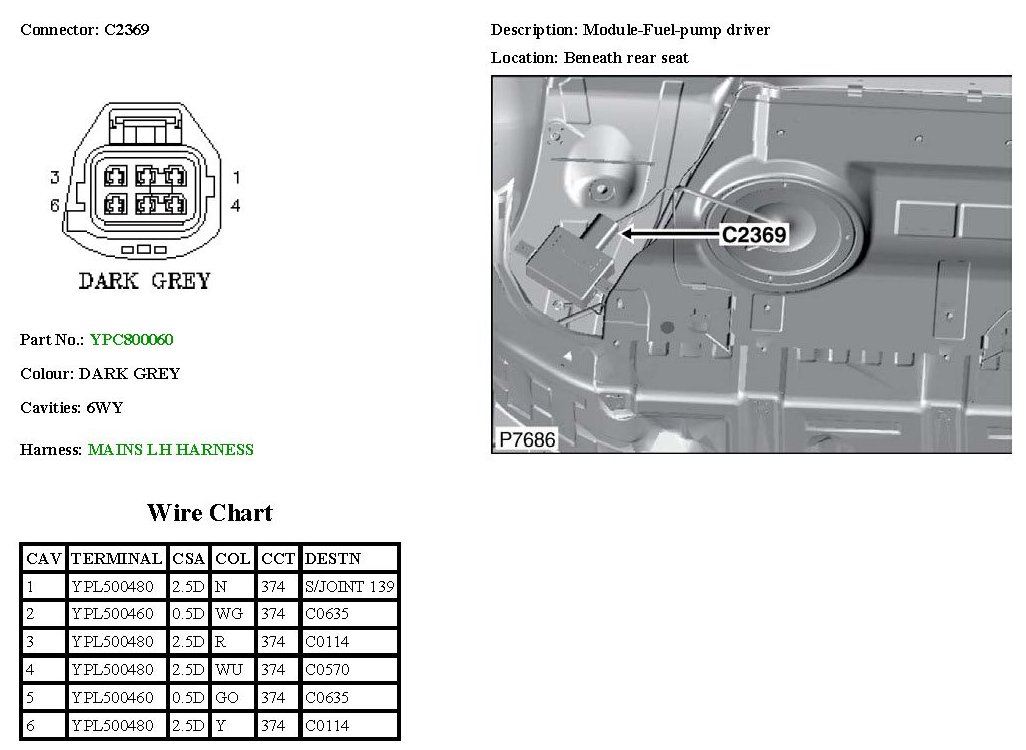

Fuel Pump Control Unit
C2369:
