Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>
Module-Passenger-Door
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Module-Passenger-Door

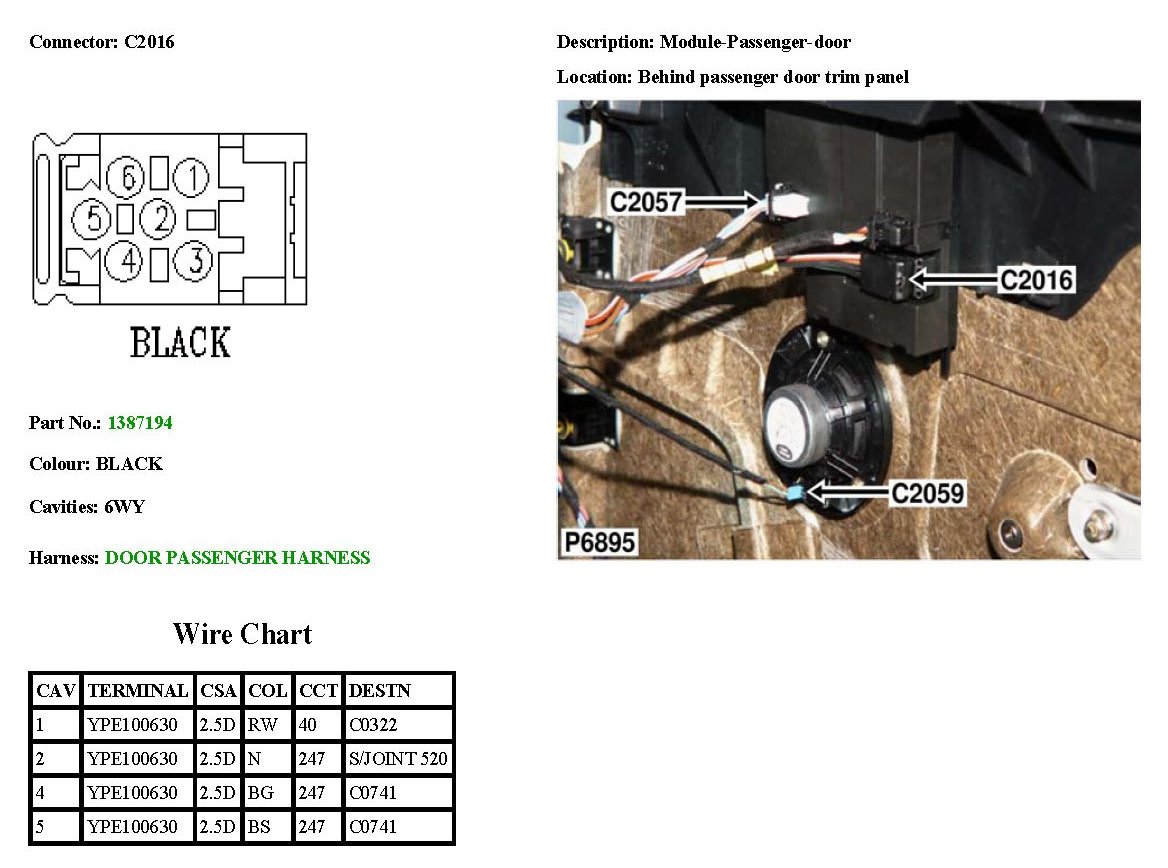

C2016:

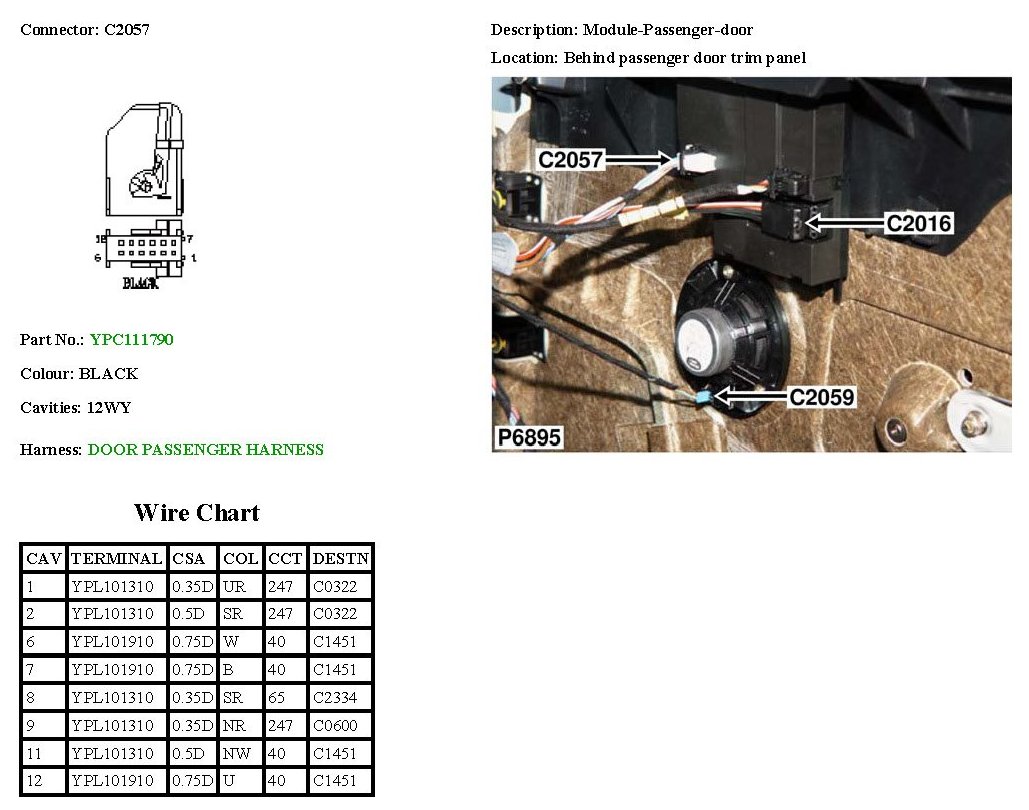

C2057:
