Entertainment System Control Module
>>
Module-Rear Seat-Entertainment
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Module-Rear Seat-Entertainment
Module-Rear Seat-Entertainment

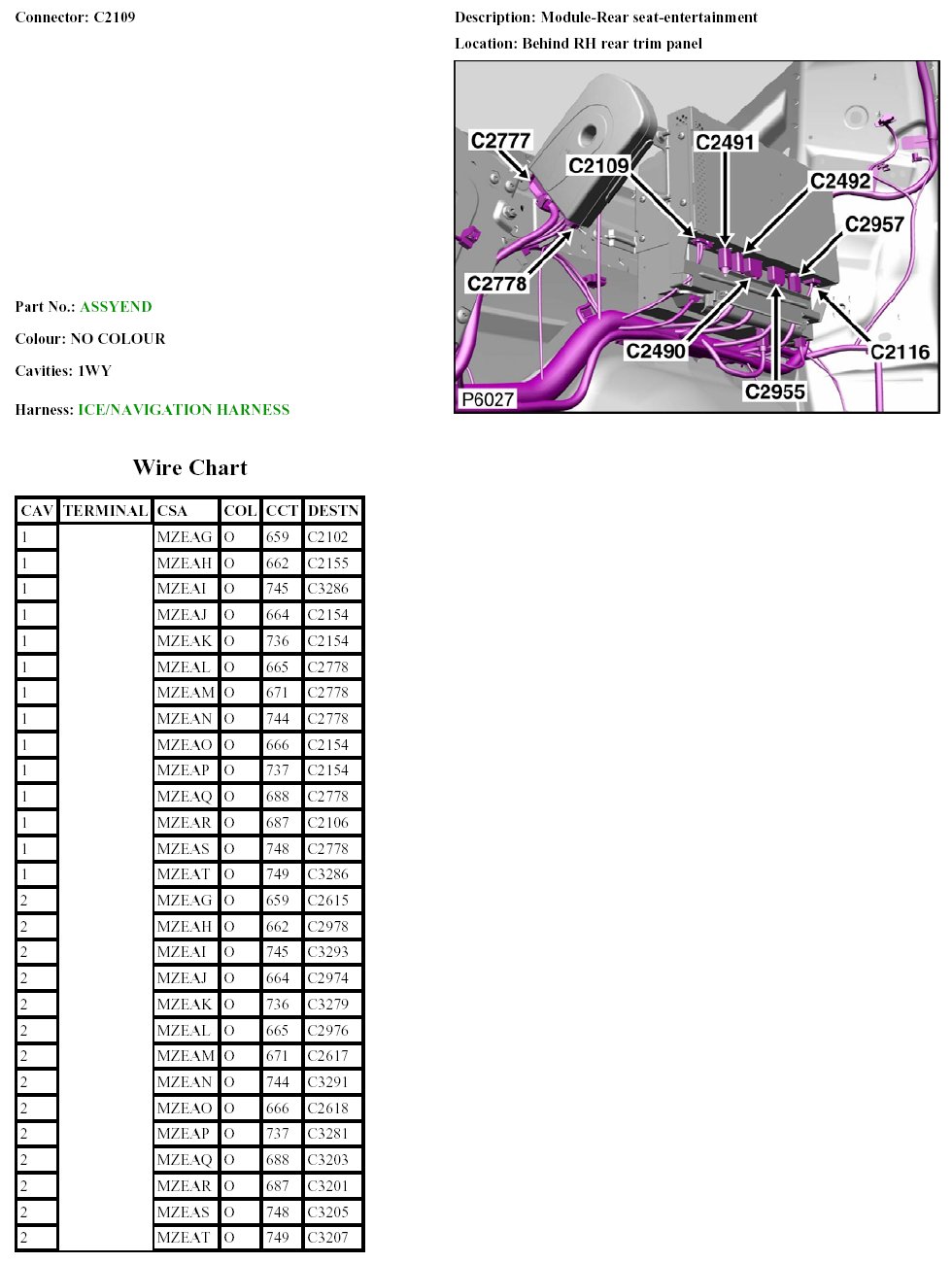

C2109:

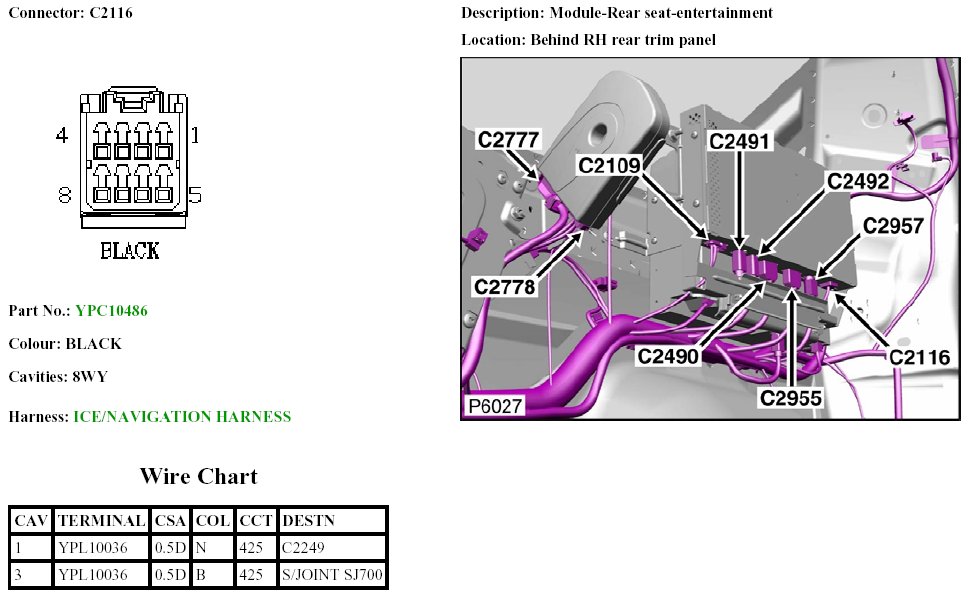

C2116:

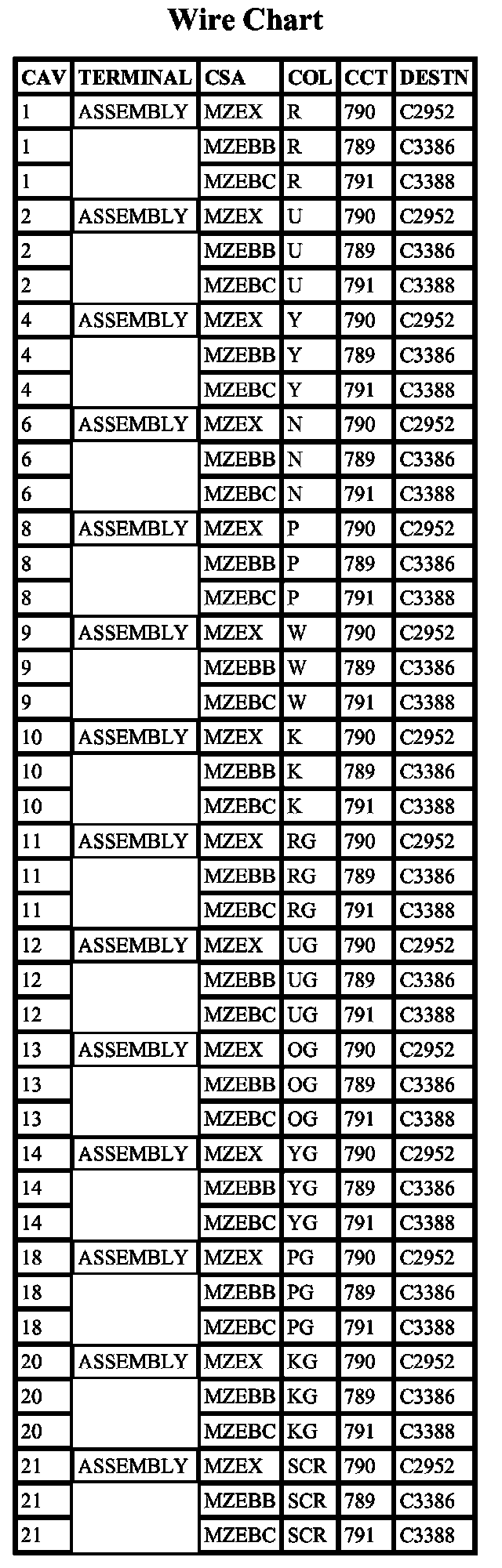

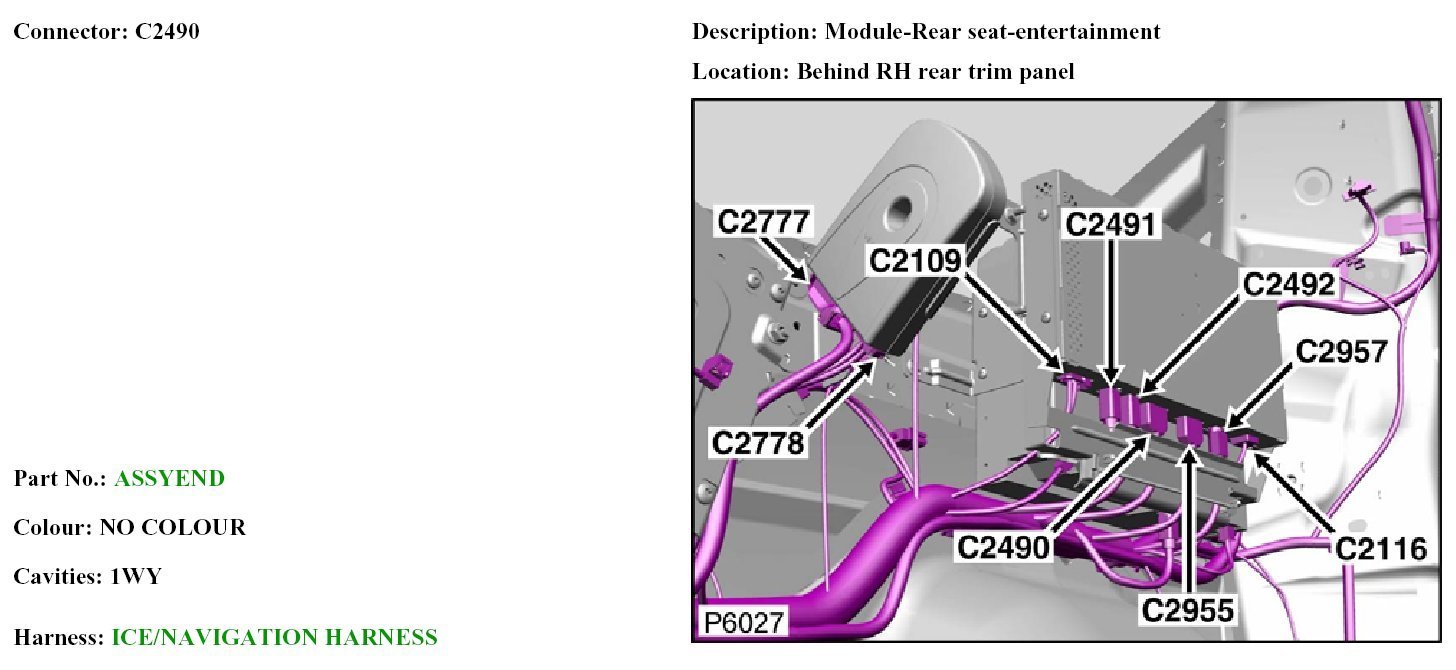

C2490 (Part 1):

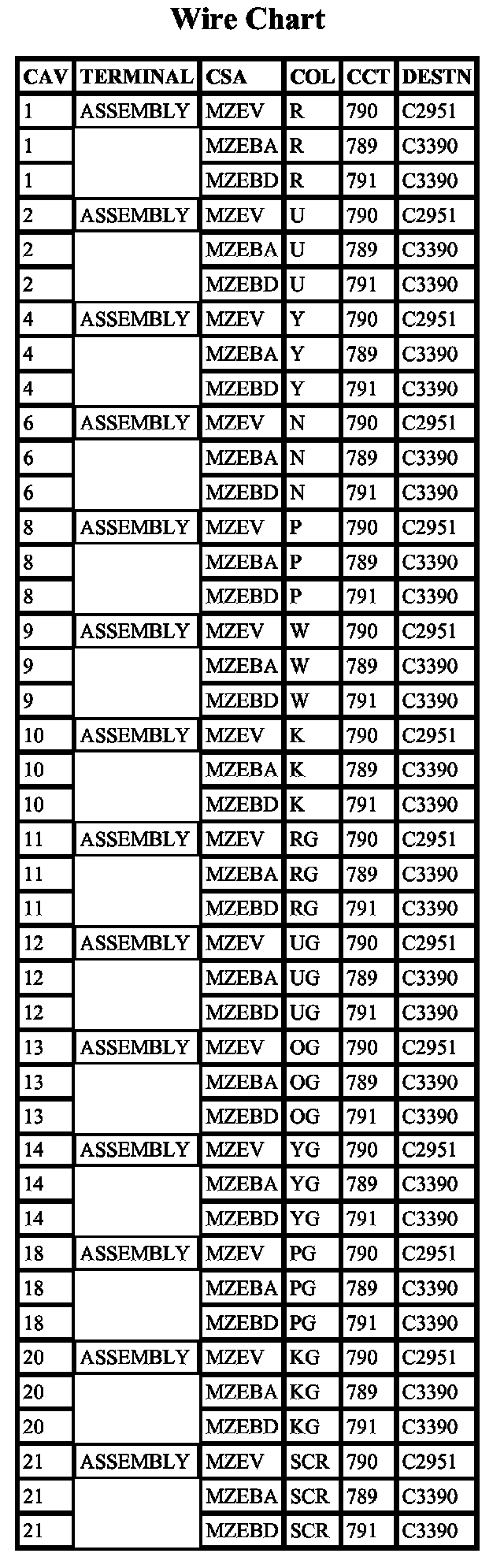

C2490 (Part 2):

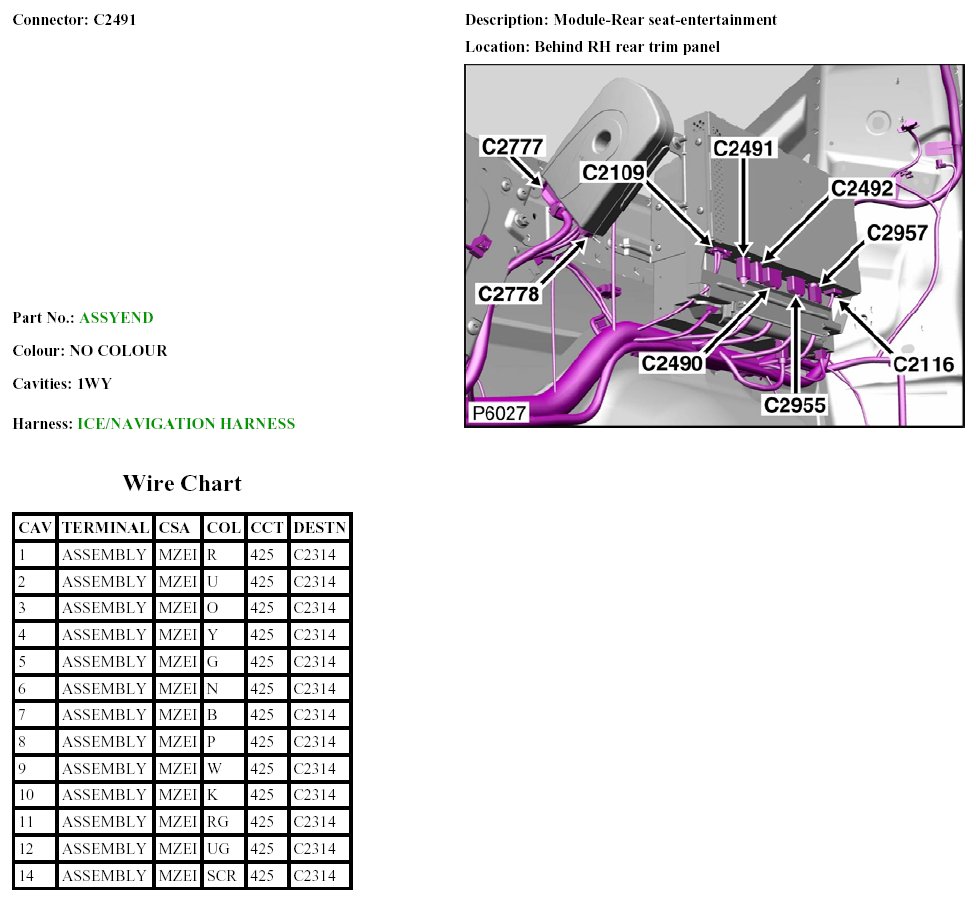

C2491:

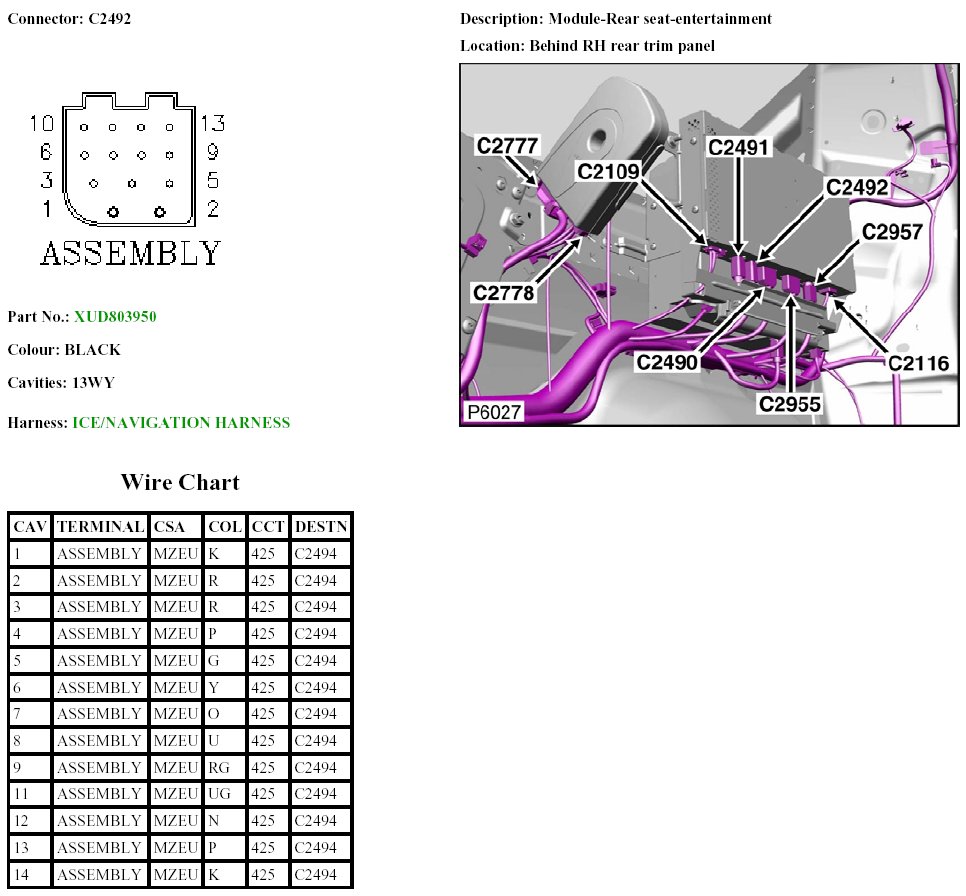

C2492:

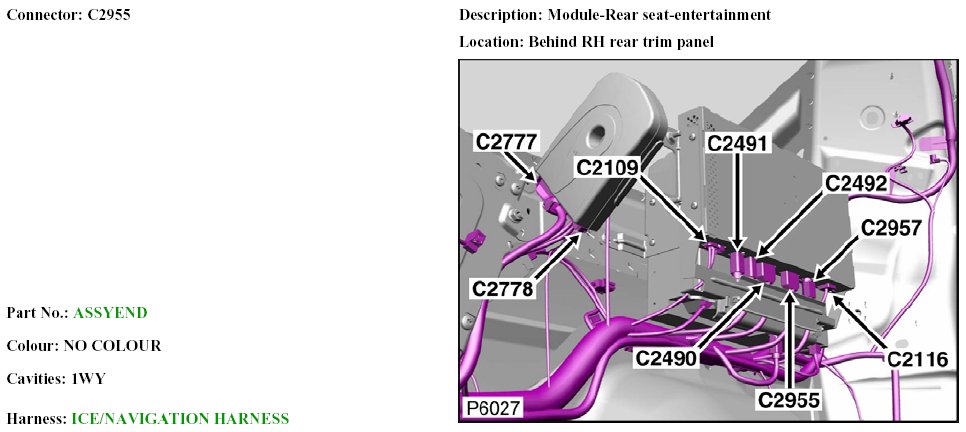

C2955 (Part 1):
C2955 (Part 2):

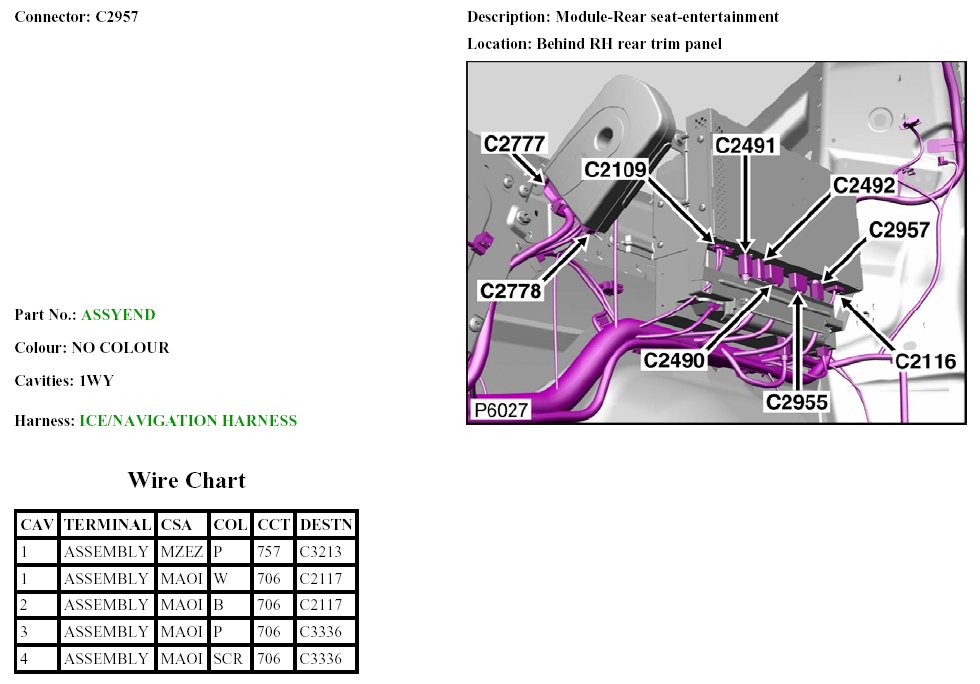

C2957:
