Spark Plug: Service and Repair

Spark Plugs

Removal

CAUTION: After switching of the ignition, wait for 2 minutes before disconnecting the battery. Failure to wait for 2 minutes will damage the navigation computer.

1. Disconnect the battery ground cable.
2. Remove the ignition coil-on-plugs.

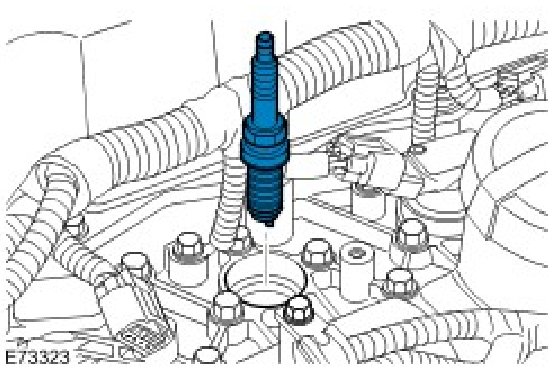

3. Torque: 28 Nm

Installation
1. To install, reverse the removal procedure.
