Air Flow Meter/Sensor: Service and Repair

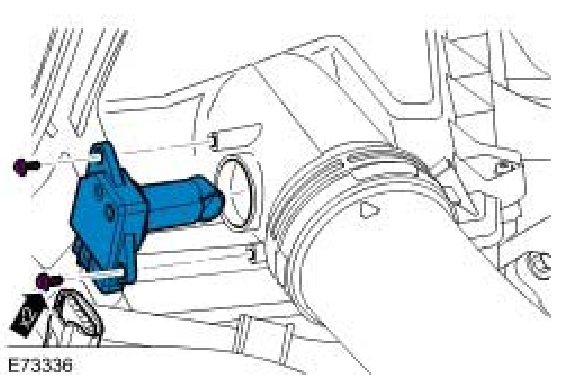

Mass Air Flow (MAF) Sensor

Service Repair No - 19.22.25

Removal
1. Torque: 2 Nm





Installation
1. To install, reverse the removal procedure.
