Control Assembly: Service and Repair



Climate Control Assembly

Removal
1. Remove the instrument panel console.

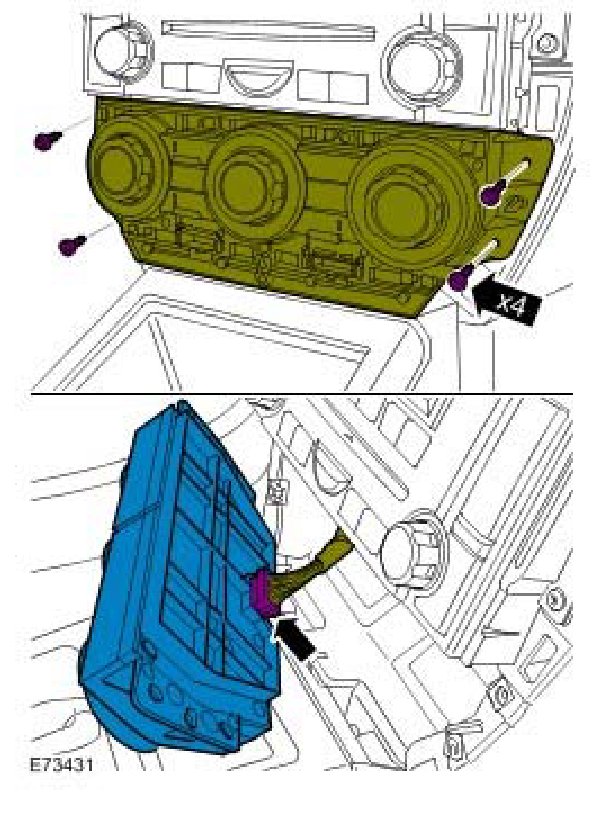

2. Remove the climate control assembly.





Installation
1. Install is the reverse of removal.
