Home >> Land Rover >> 2008 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brakes and Traction Control >> Wheel Speed Sensor >> Wheel Speed Sensor-Rear-RH

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

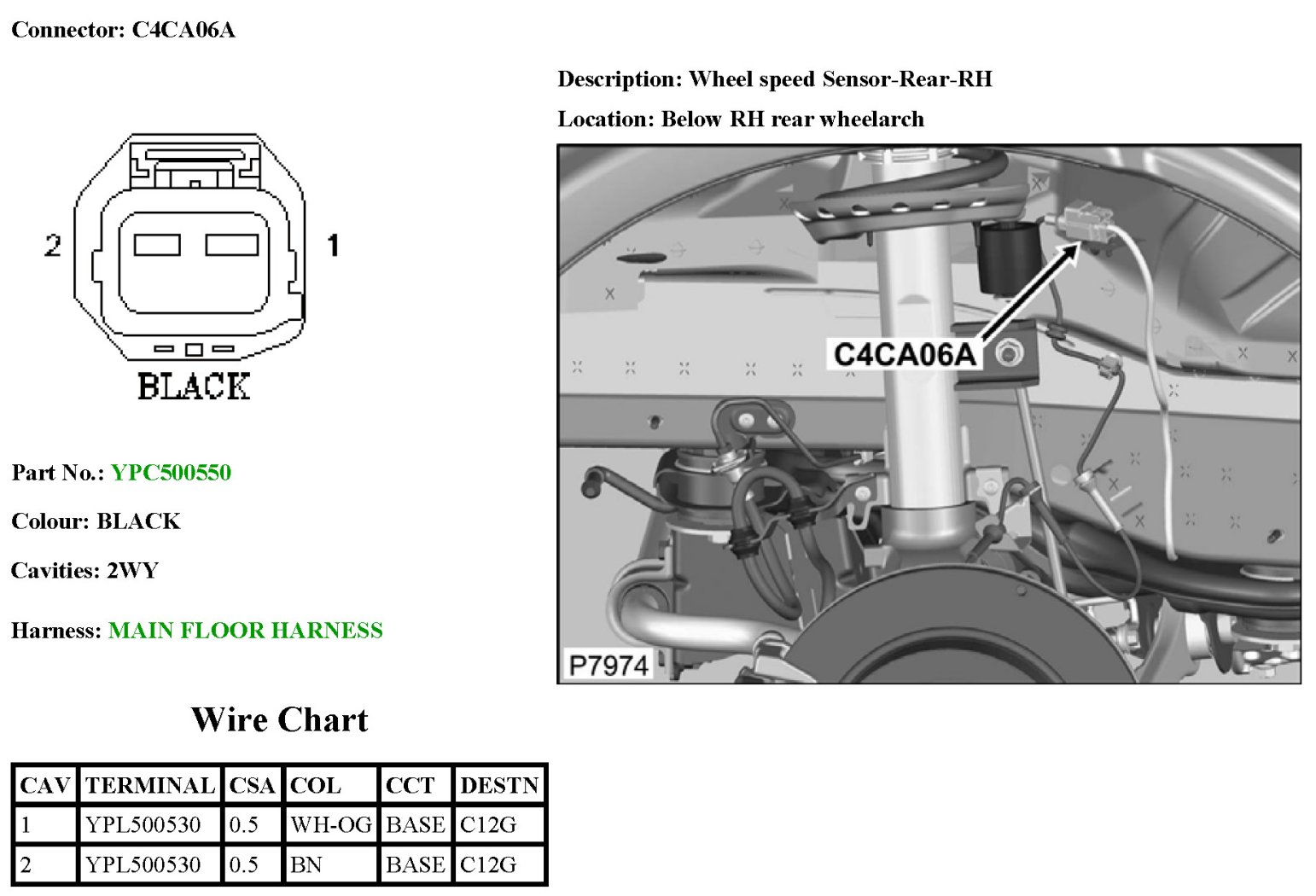

Wheel Speed Sensor-Rear-RH

C4CA06A:
