Alternator: Service and Repair

Generator

Service Repair No - 86.10.02

Removal
1. Raise and support the vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Disconnect the battery ground cable.
3. Remove the accessory drive belt.
4. Remove the radiator splash shield.
5. Remove the battery positive cable.
^ Release the battery positive cable cover.
^ Remove the retaining nut.
^ Disconnect the generator electrical connectors.

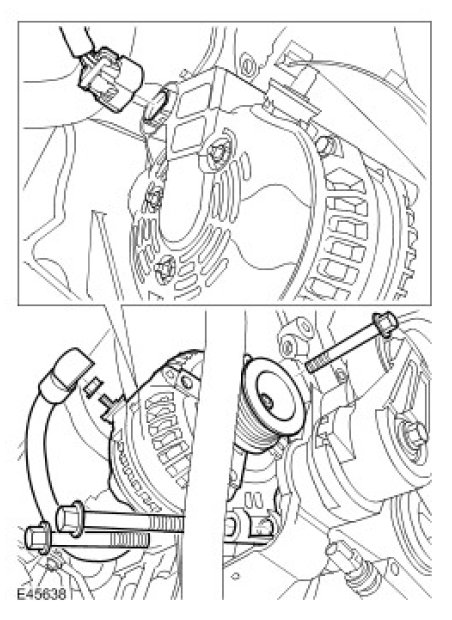

6. Remove the generator.
^ Remove the 3 bolts.





Installation
1. Install the battery positive cable.
^ Connect the battery positive cable.
^ Tighten the nut to 10 Nm (7 ft. lbs.).
^ Connect the generator electrical connector.

2. Install the generator.
^ Install and tighten the generator upper fixing bolt, before the lower bolts.
^ Tighten the 3 bolts to 48 Nm (35 ft. lbs.).

3. Install the accessory drive belt.
4. Install the radiator splash shield.
5. Connect the battery ground cable.
