Range Rover (LM) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
C0634B - PV8NA
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

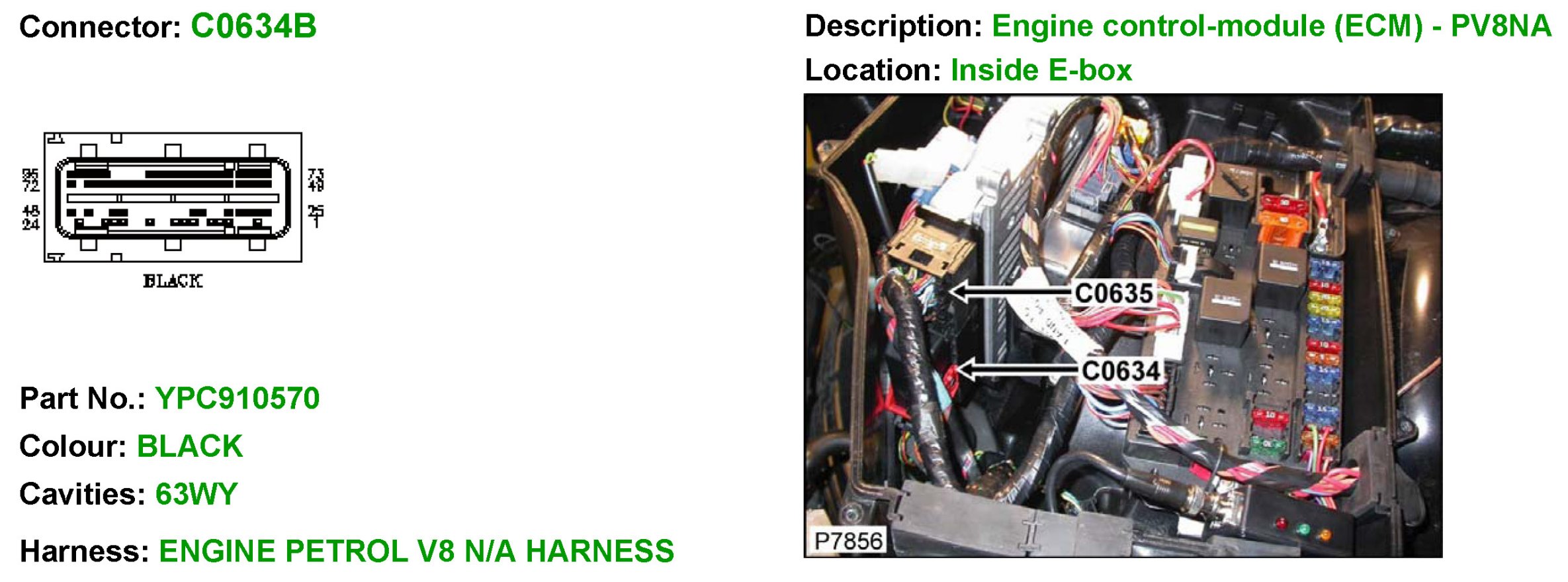

C0634B - PV8NA

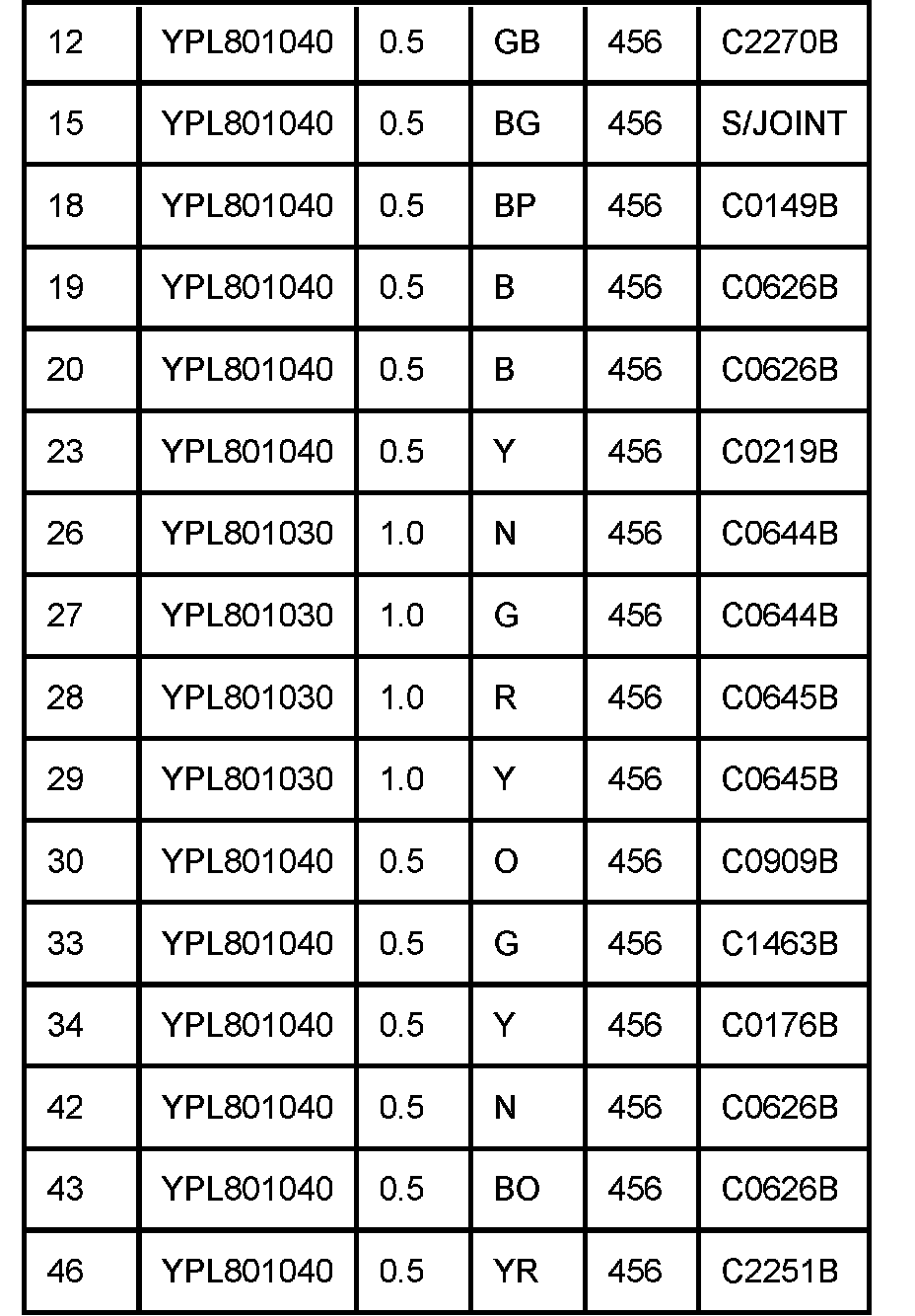

C0634B (Part 1):

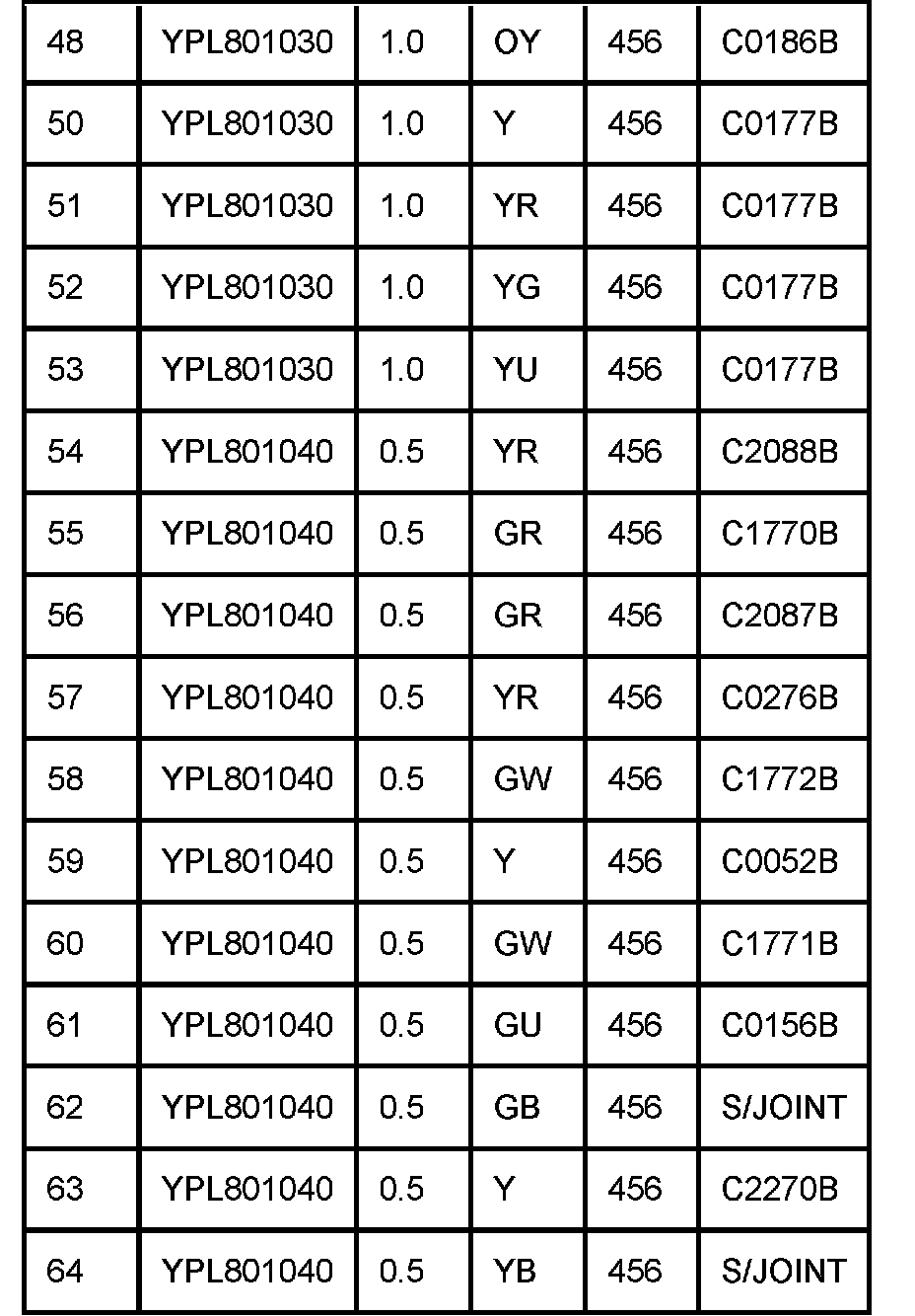

C0634B (Part 2):

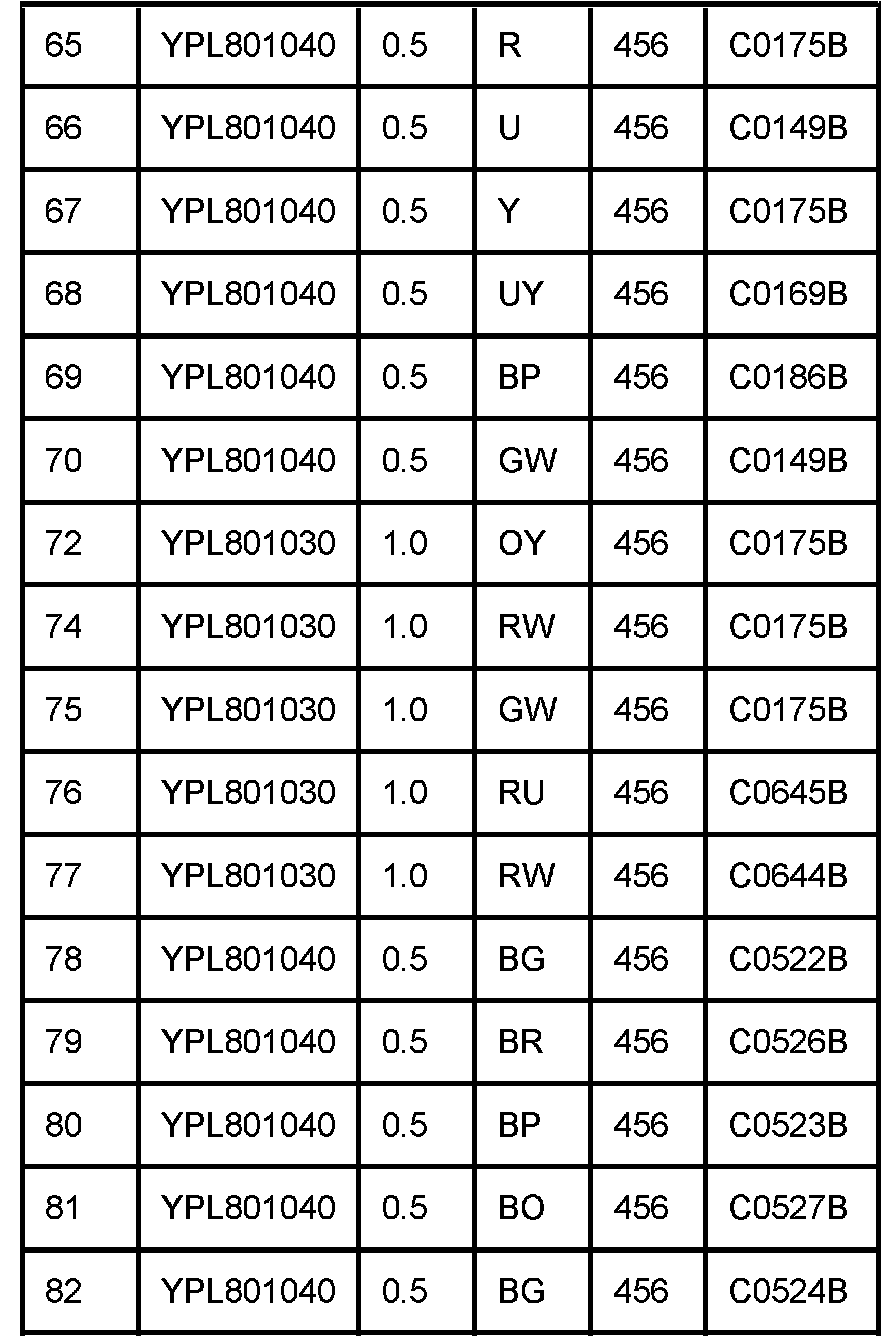

C0634B (Part 3):
C0634B (Part 4):
C0634B (Part 5):
C0634B (Part 6):
