Ignition Coil: Service and Repair

Ignition Coil-On-Plug

Service Repair No - 18.20.44

Removal
1. Disconnect the battery ground cable.
2. Remove the engine cover.

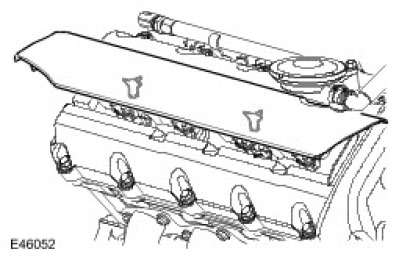

3. Remove the ignition coil cover.
^ Release from the 2 clips.

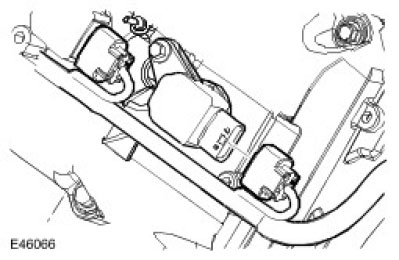

4. Disconnect the ignition coil-on-plug electrical connector.

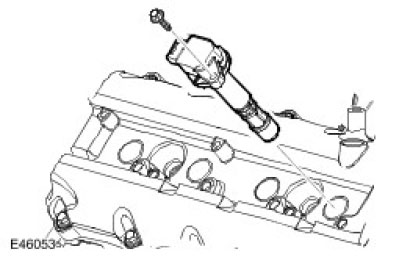

5. Remove the ignition coil-on-plug.
^ Remove the bolt.
^ Remove and discard the seal.





Installation
1. To install, reverse the removal procedure.
^ Tighten the bolt to 6 Nm (4 ft. lbs.).
