Climate Control Assembly: Removal

  1. Remove the instrument panel console.

    For additional information, refer to: Instrument Panel Console information.

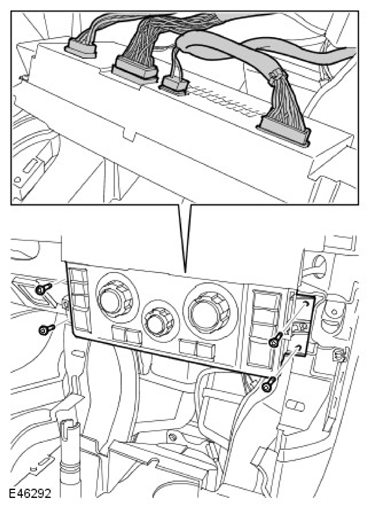

  2. Remove the climate control assembly.
    • Remove the 4 Torx screws.
    • Disconnect the 4 electrical connectors.
      G08766653
