Window Control Diagram



WINDOW CONTROL DIAGRAM

NOTE: A = Hardwired

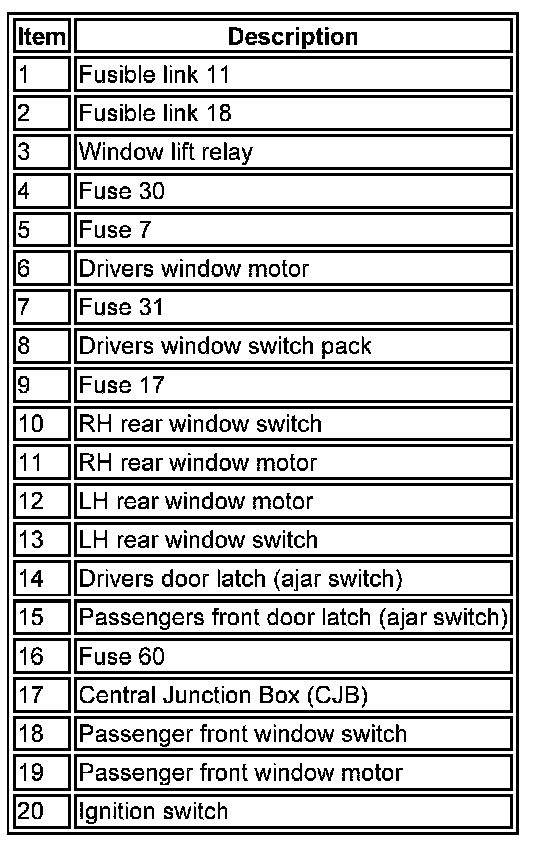

Window Control Diagram - Part 1:

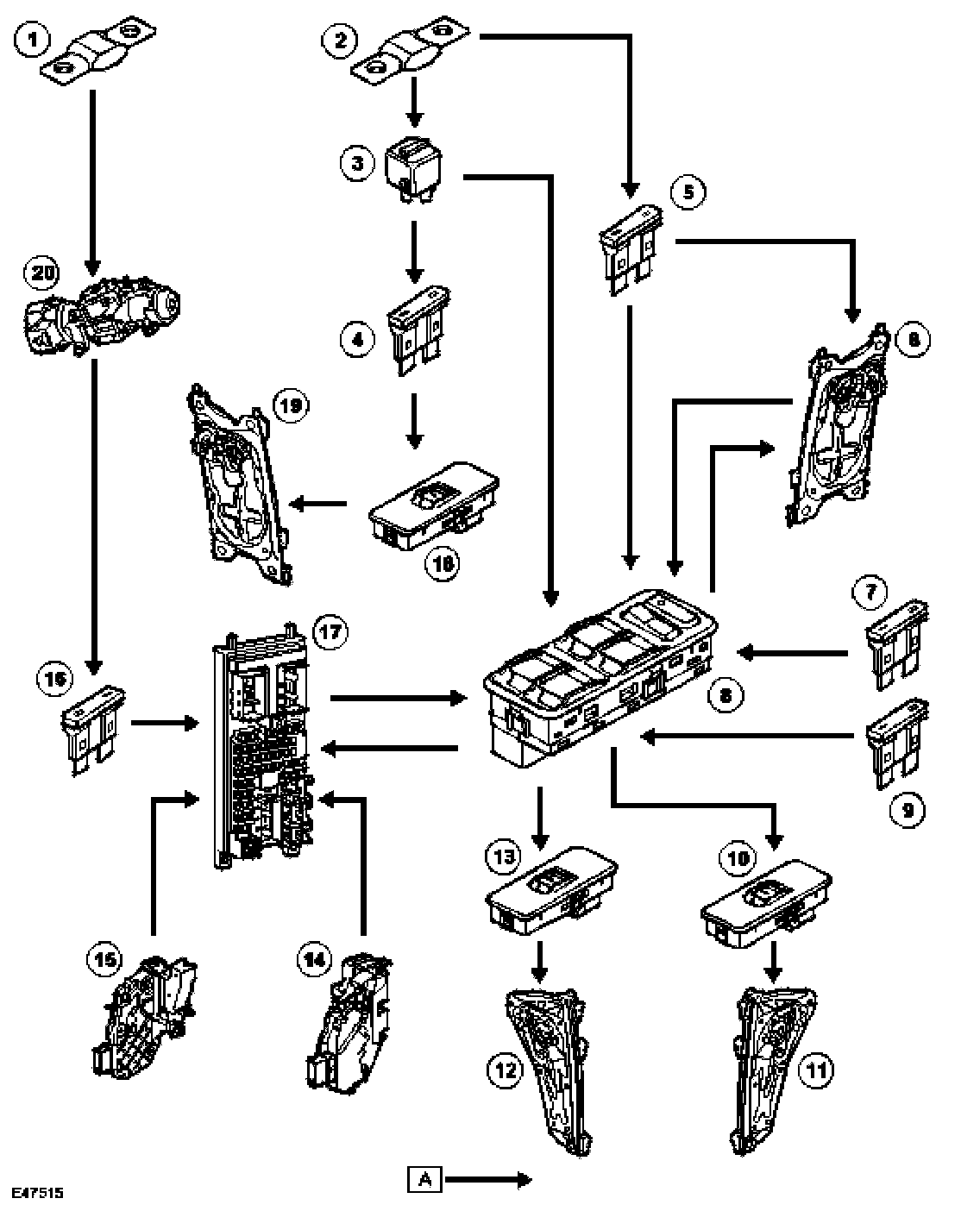

Window Control Diagram - Part 2:
