Computers and Control Systems: Locations

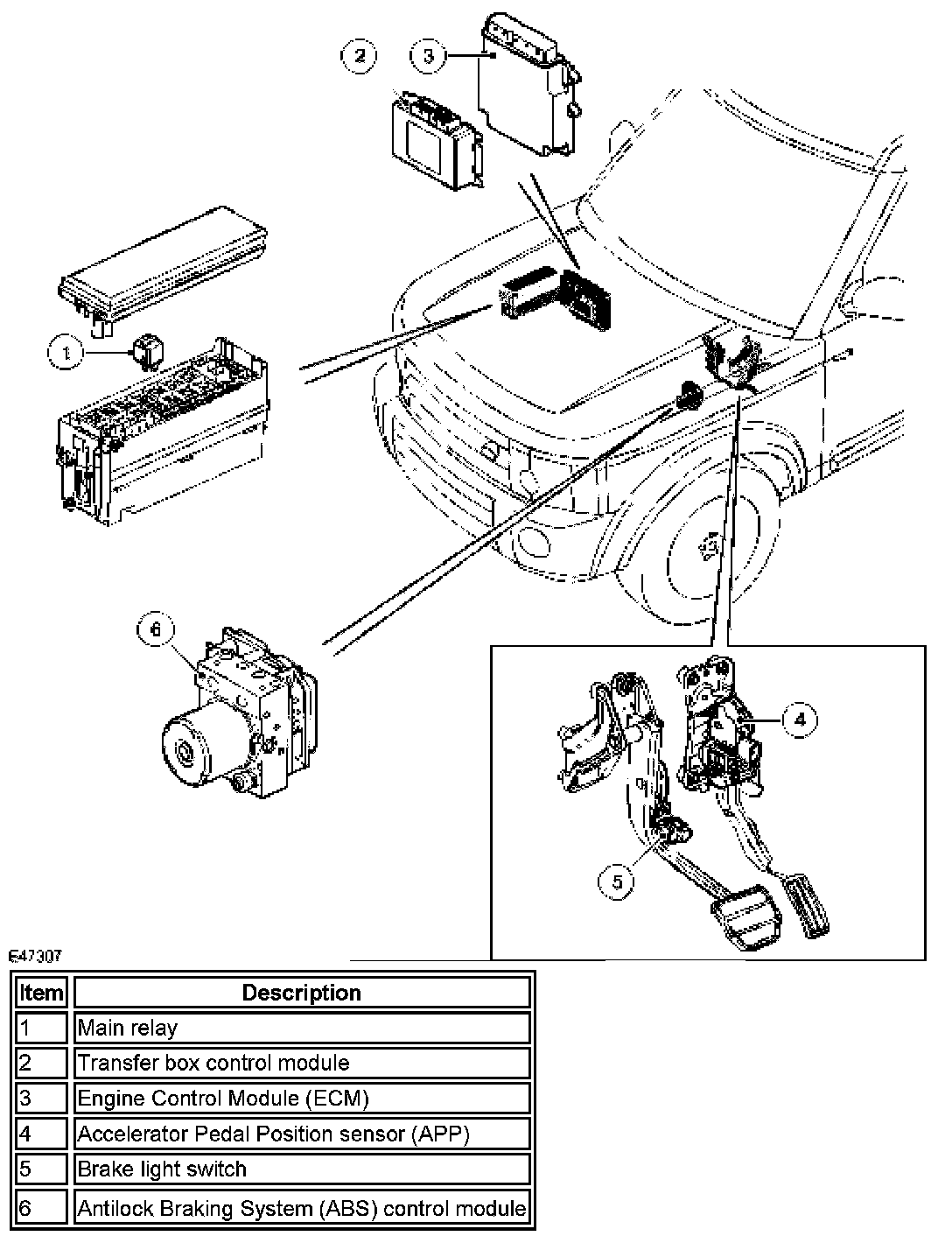

[Denso] Electronic Engine Controls Component Location Sheet 1 of 2:

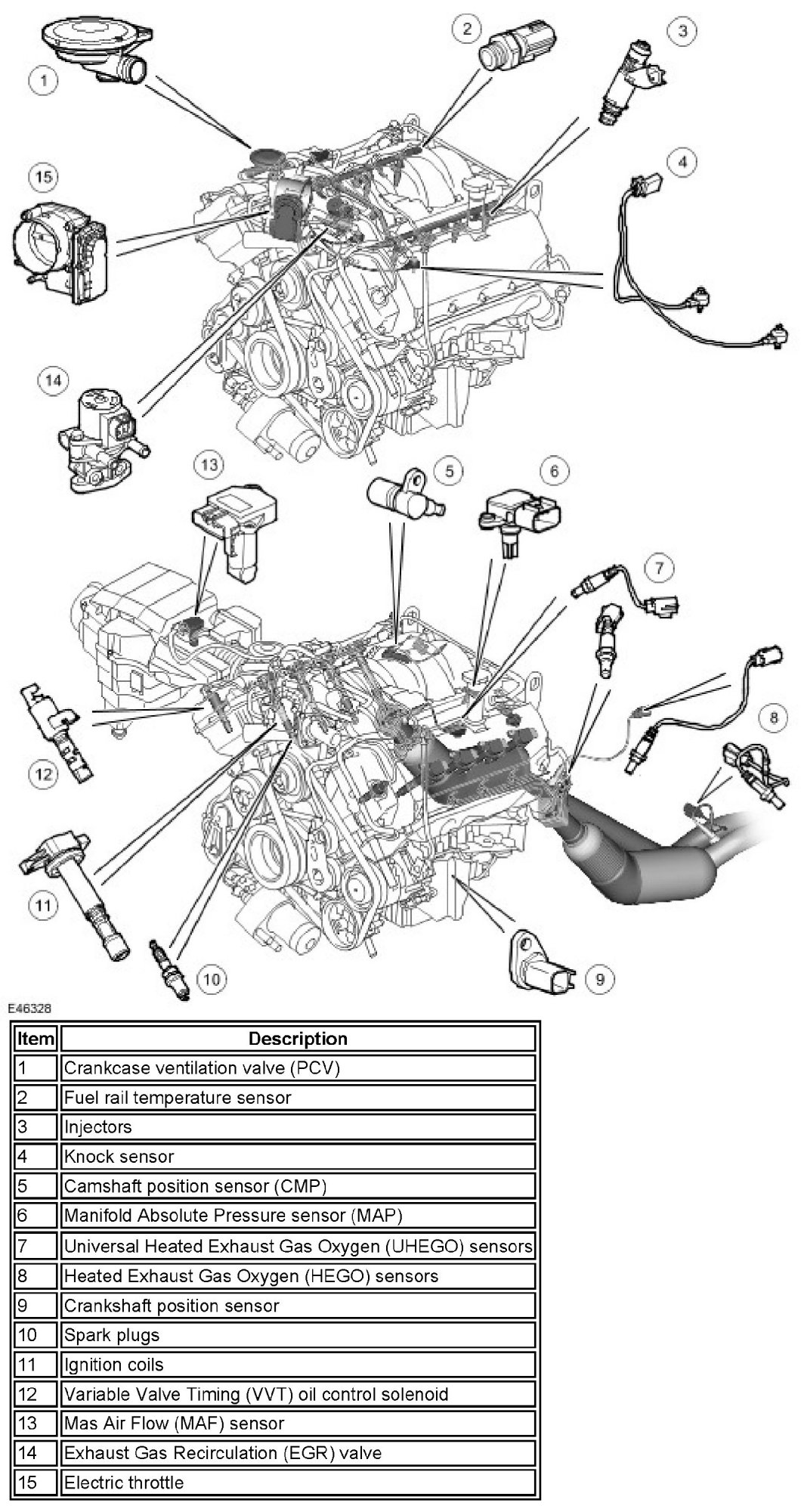

[Denso] Electronic Engine Controls Component Location Sheet (2 of 2):

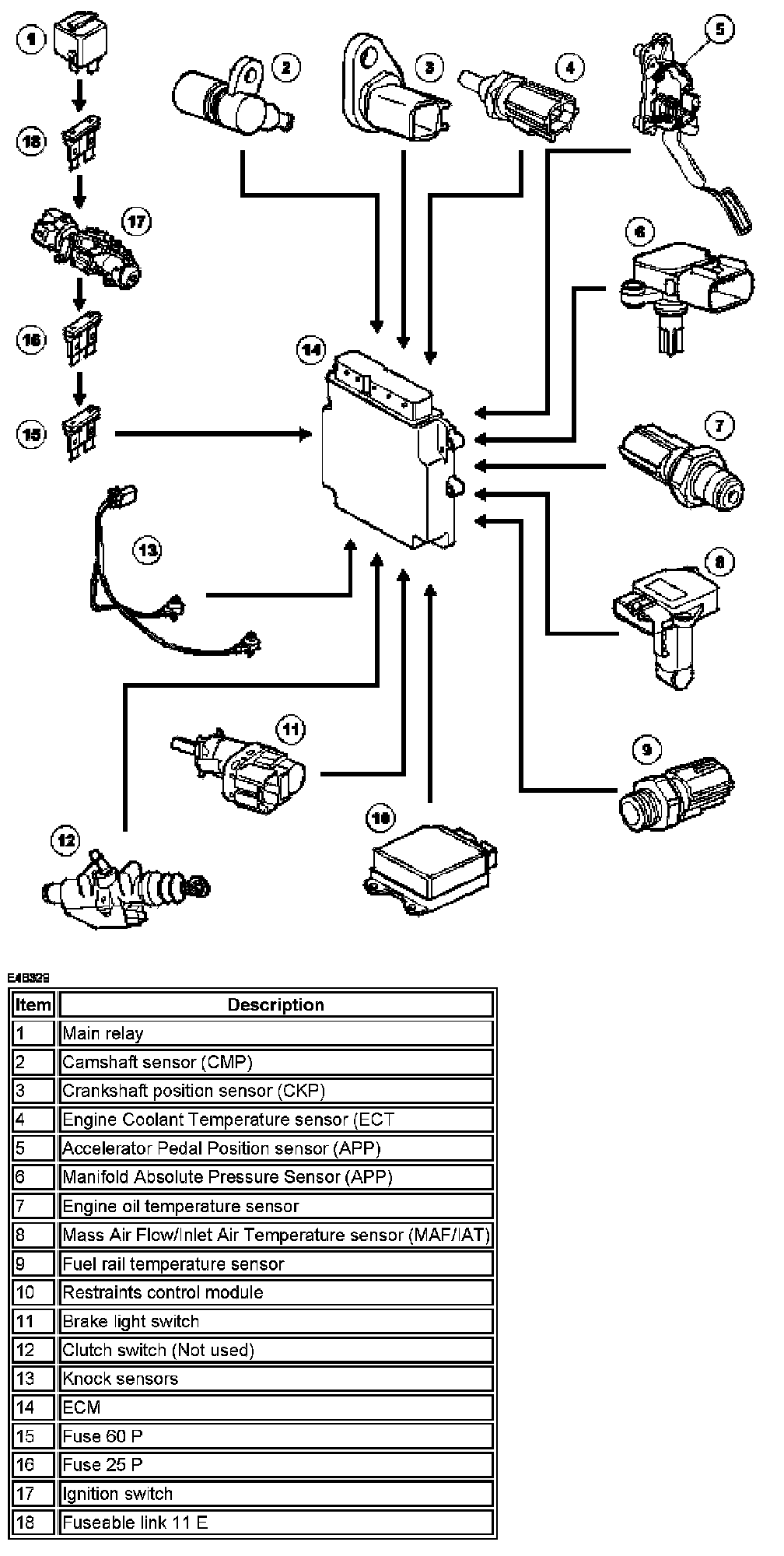

[Denso] Electronic Engine Controls-Input Control Diagram (Sheet 1 of 2):

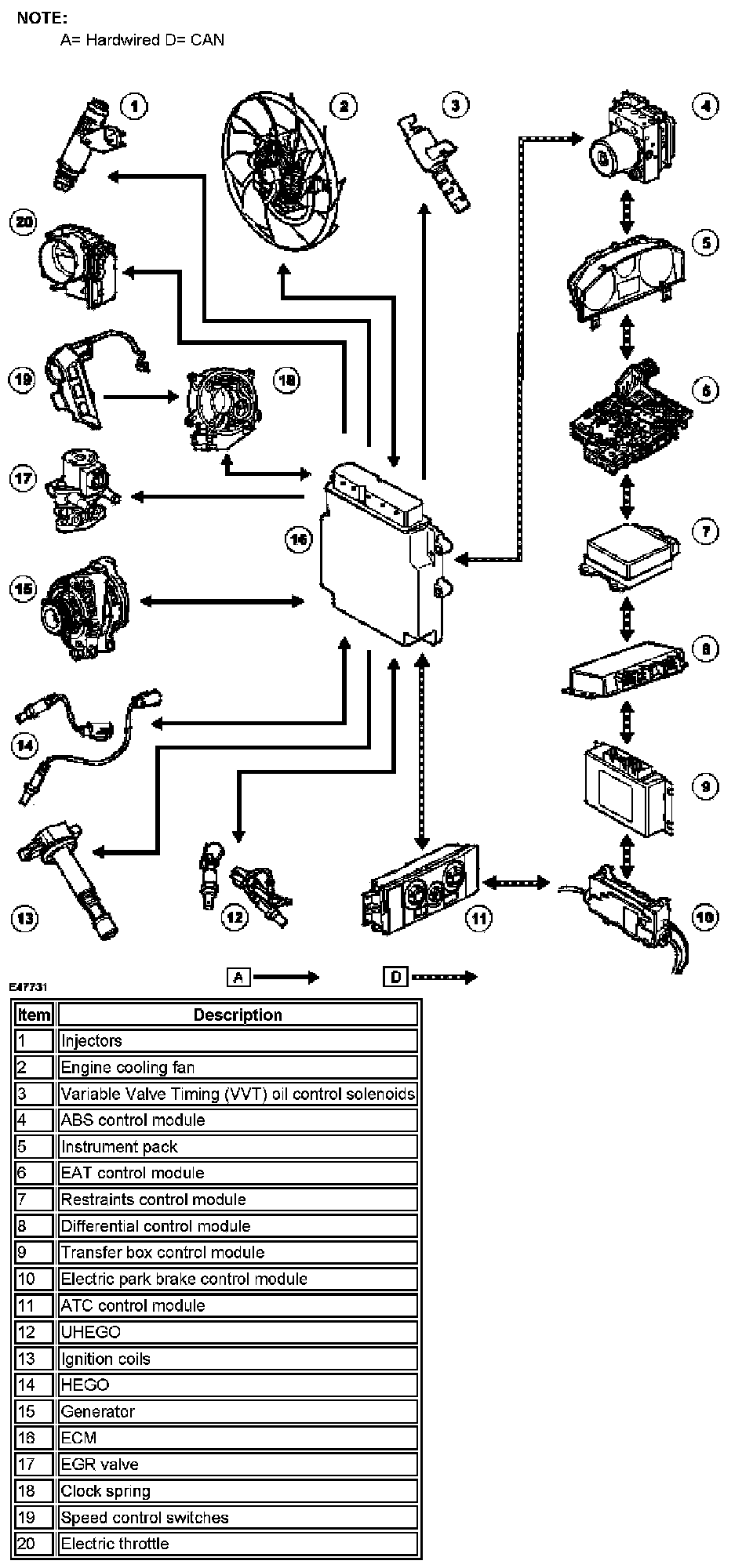

[Denso] Electronic Engine Controls-Control Diagram (Sheet 2 of 2):
