Home >> Land Rover >> 2007 >> LR3 (LA) V8-4.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Washer Fluid Level Switch
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

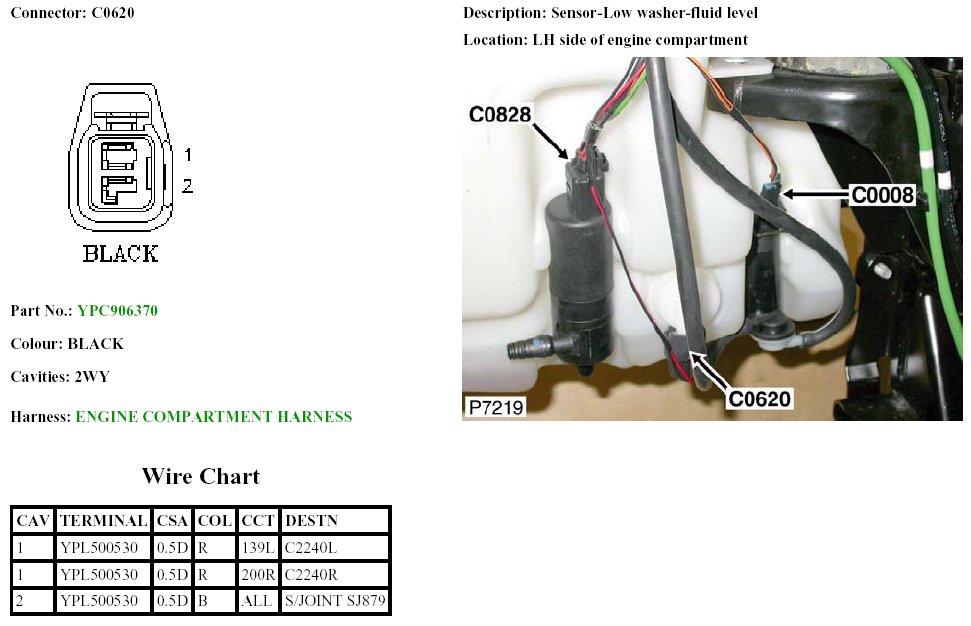

Washer Fluid Level Switch

Sensor-Low Washer-Fluid Level

C0620:
