Home
>>
Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Switch-Window-Driver Door
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Switch-Window-Driver Door
Switch-Window-Driver Door

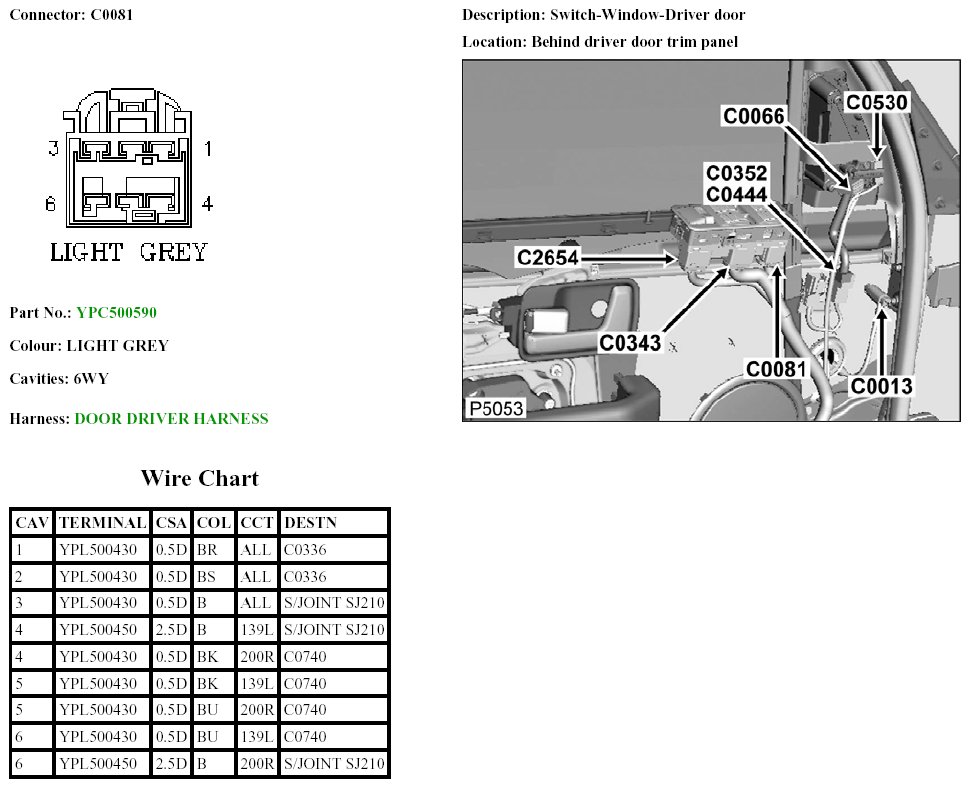

C0081:

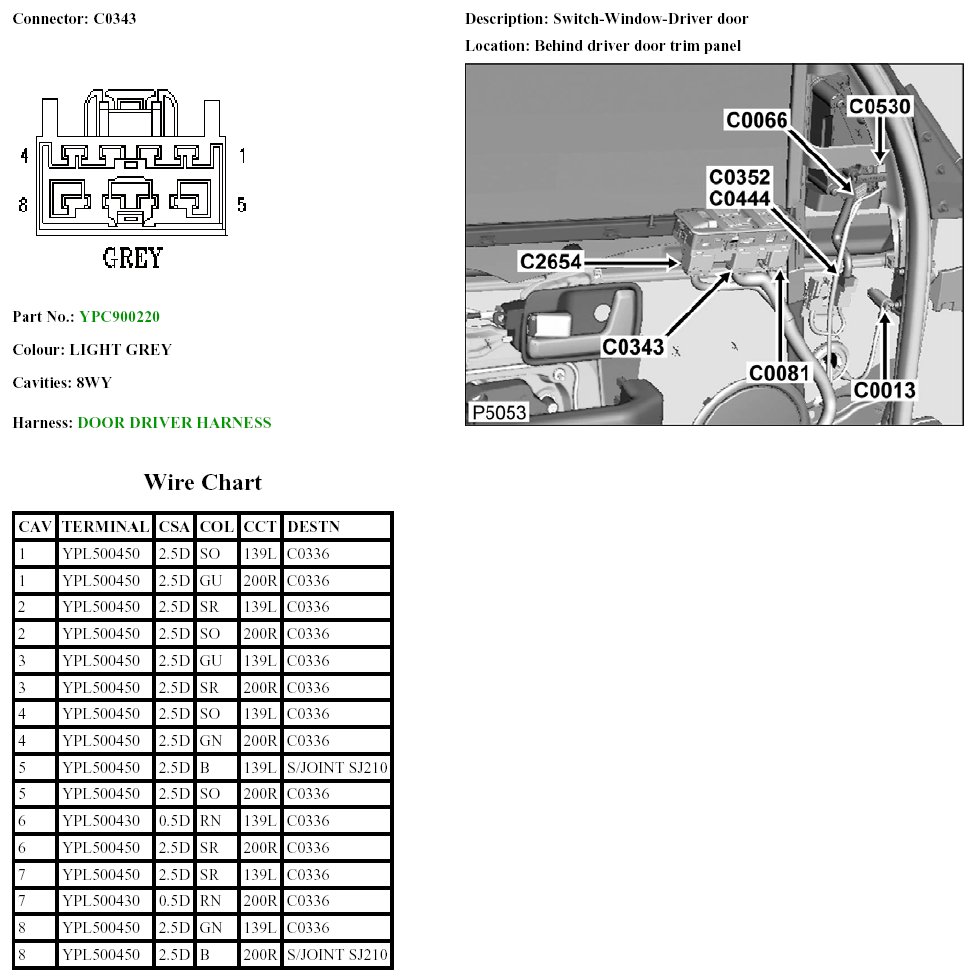

C0343:

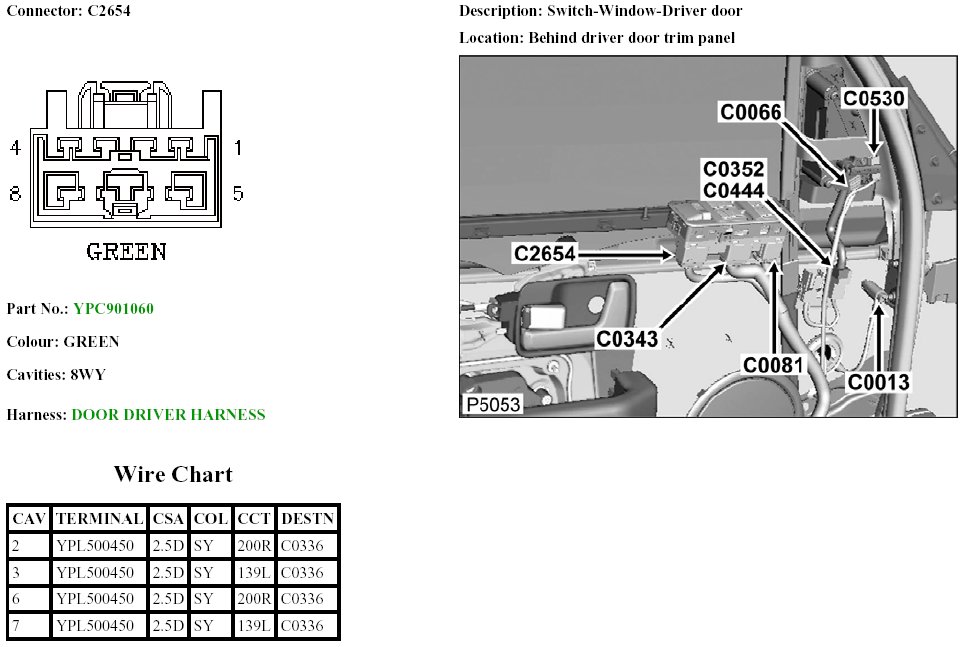

C2654:
