Headlamp Control Module: Service and Repair



Adaptive Front Lighting Module

Service Repair No - 86.54.06

Removal

NOTE: The position of the adaptive front lighting module will change with hand of drive.

1. Disconnect the battery ground cable.
2. Passenger side: Remove the cowl side trim panel.
3. Remove the CJB.

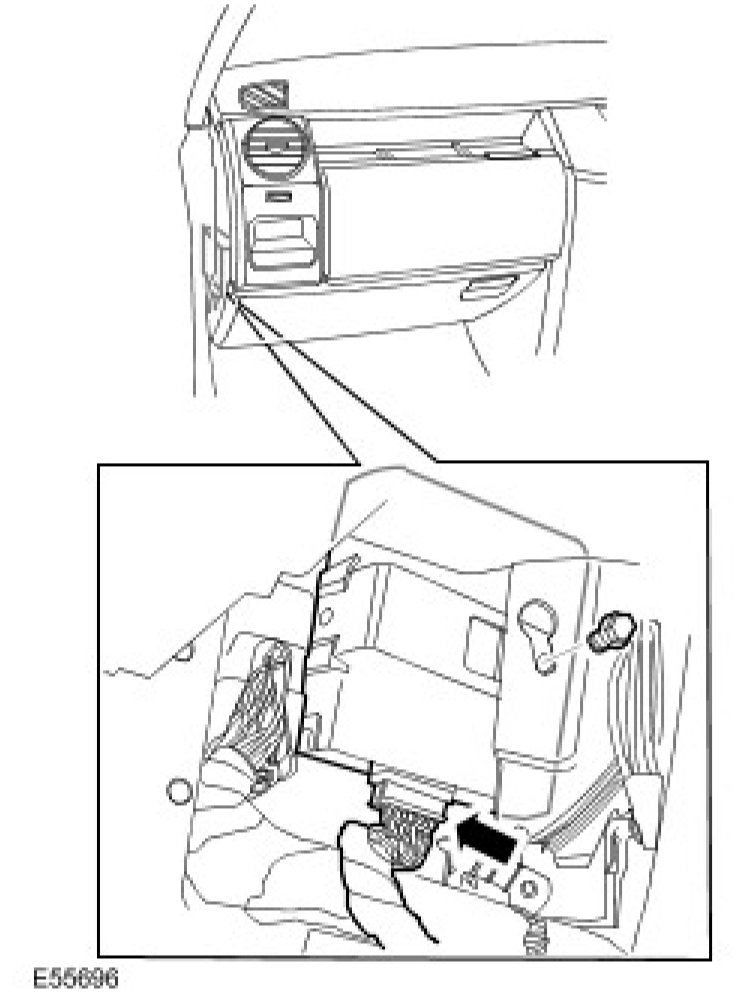

4. Remove the adaptive front lighting module.
^ Disconnect the electrical connector.
^ Remove the bolt.





Installation
1. Install the adaptive front lighting module.
^ Tighten the bolt to 10 Nm (7 lb.ft).
^ Connect the electrical connector.
2. Install the CJB.
3. Install the cowl side trim panel.
4. Connect the battery ground cable.
