Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

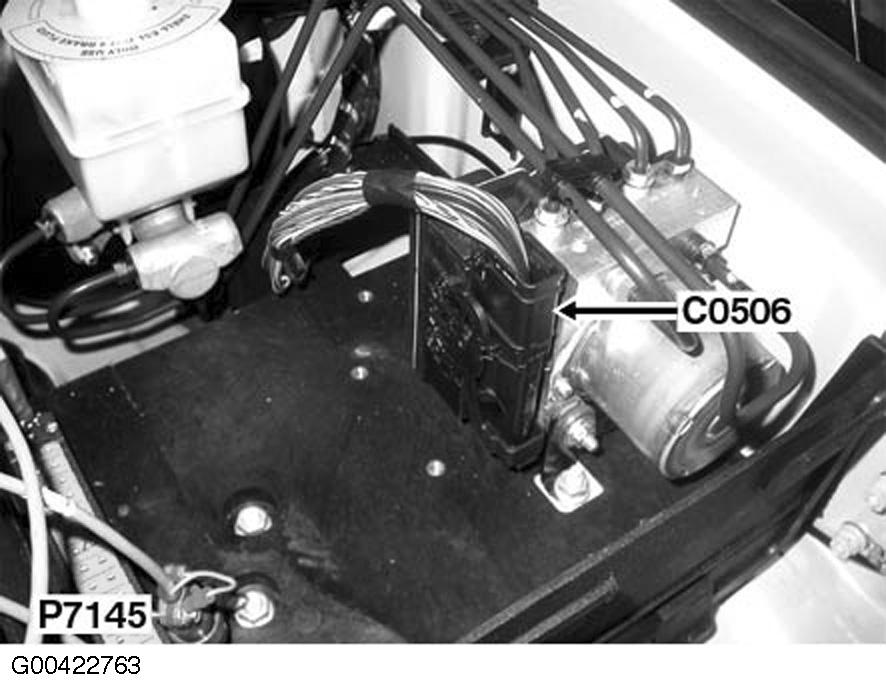

| ABS Module (C0506) | Left rear of engine compartment. See Figure . |
| Air Bag DCU Connector (C0256) | Under center console. See Figure . |
| Air Suspension ECU Connector (C0867) | Base of left "A" pillar. See Figure . |
| Air Suspension ECU Connector (C2030) | Base of left "A" pillar. See Figure . |

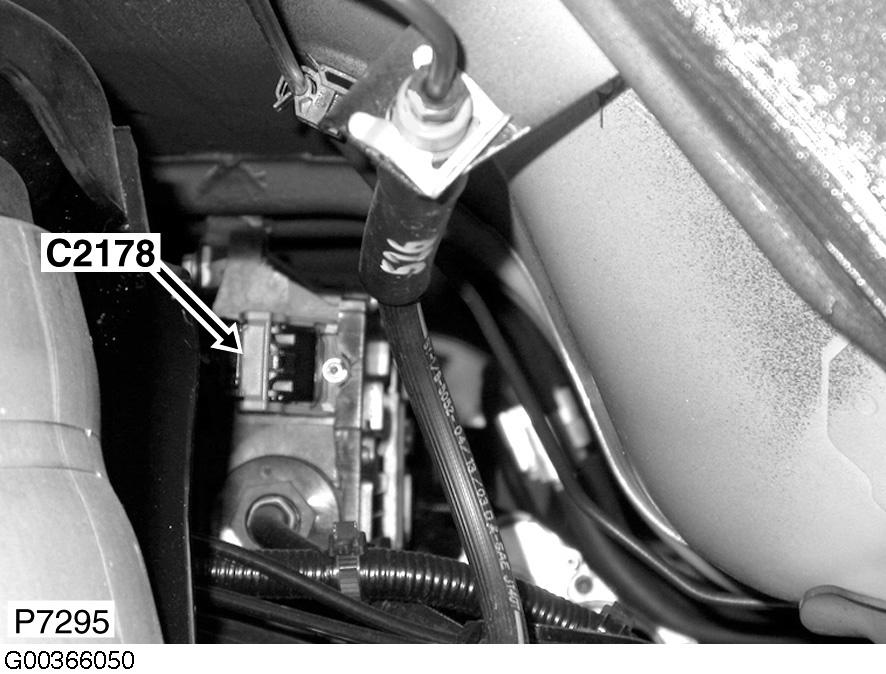

| Electric Park Brake Module Connector (C2178) | Under center of vehicle. See Figure . |

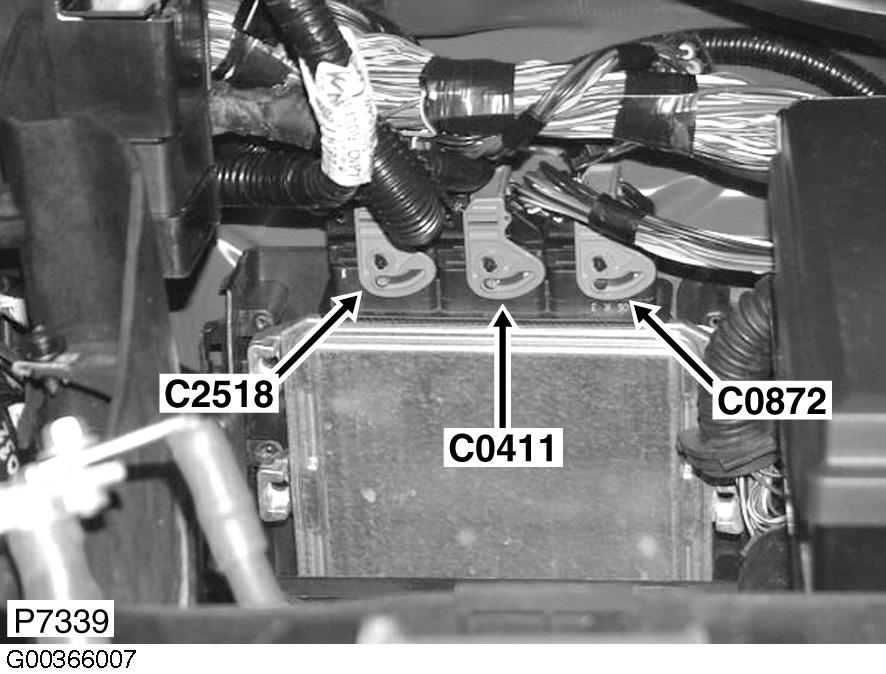

| Engine Control Module (ECM) Connector (C0872) | Left side of engine compartment. See Figure . |
| Front Blower Motor Control Unit (C2281) | On front blower motor assembly. See Figure . |
| HEVAC Control Module Connector (Rear) (C0695) | Center of headliner. See Figure . |
| Multi-Media Module Connector (C2113) | Under front passenger's seat. See Figure . |
| Park-Distance Control ECU Connector (C0957) | Base of left "C" pillar. See Figure . |
| Park-Distance Control ECU Connector (C0958) | Base of left "C" pillar. See Figure . |
| Park-Distance Control ECU Connector (C1457) | Base of left "C" pillar. See Figure . |
| Rear Blower Control Unit (2282) | On rear blower motor assembly. See Figure . |

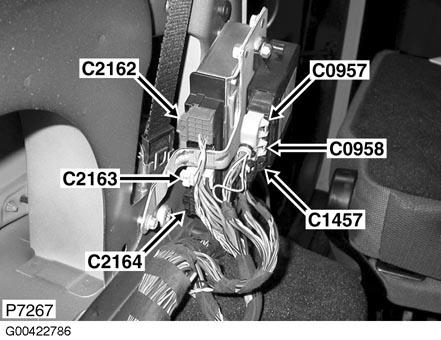

| Rear Differential Control Module (C2162) | At left "C" pillar. See Figure . |

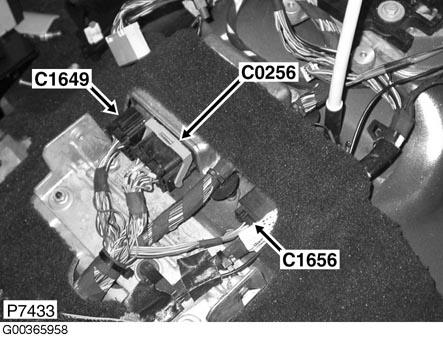

| Restraints Control Module (C1649) | Under center console. See Figure . |

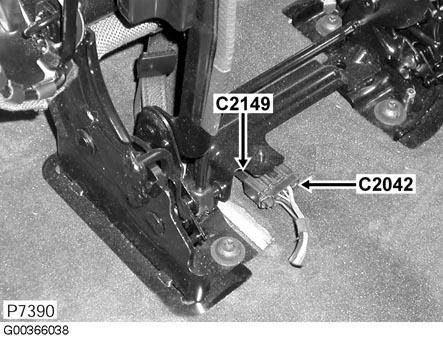

| Seat Heater Module Connector (Left Rear) (C2042) | Under rear seat. See Figure . |
| Seat Heater Module Connector (Right Rear) (C2043) | Under rear seat. See Figure . |
| Seat Memory ECU Connector (C2383) | Under driver's seat. See Figure . |
| Slip Control ECU (C0506) | Left rear of engine compartment. See Figure . |
| Sun Roof ECU Connector (C0784) | At center front of roof. See Figure . |
| Tire Pressure Monitoring ECU Connector (C1537) | Center of headliner. See Figure . |
| Transfer Box ECU Connector (C1319) | At rear of engine compartment. See Figure . |
| Transmission Control Module (C0193) | On transmission. See Figure . |
