General Data: Brakes

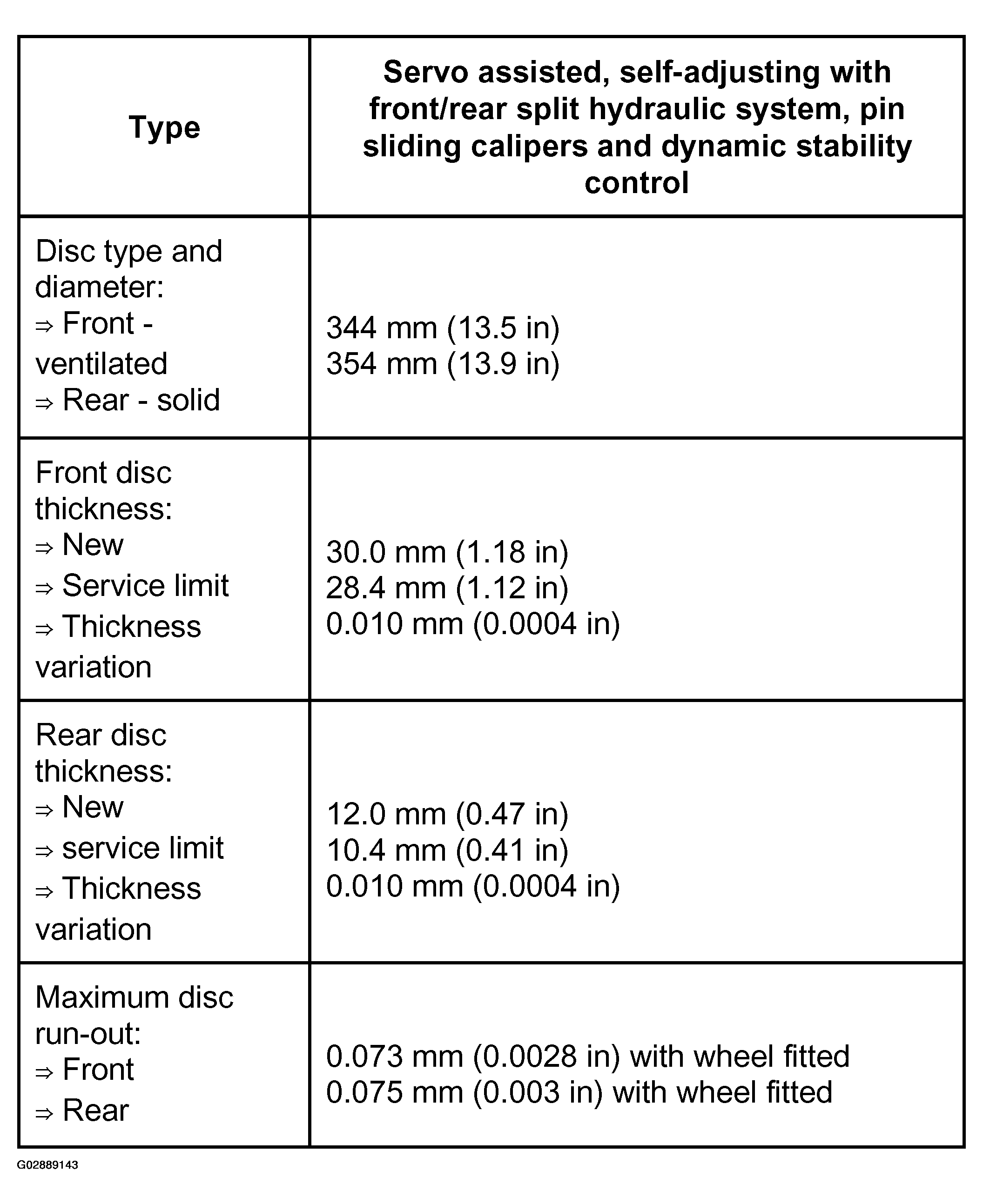

Fig 1: Brakes Specifications(I Of 2)
G02889143Courtesy of LAND ROVER NORTH AMERICA, INC.

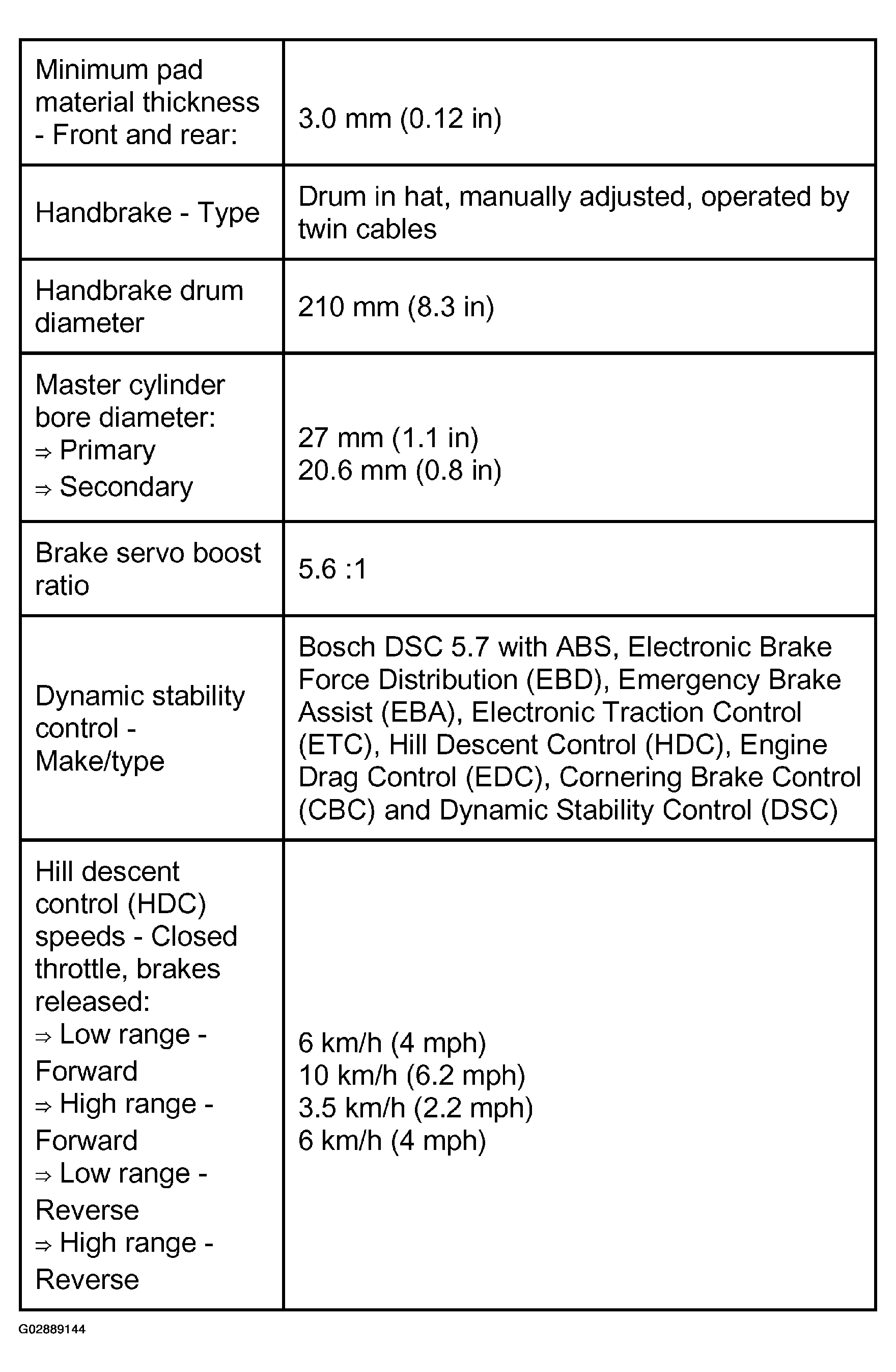

Fig 2: Brakes Specifications(2 Of 2)
G02889144Courtesy of LAND ROVER NORTH AMERICA, INC.
