Electrical Data
Nominal resistance values for applicable brake control components are as detailed. See
Fig 1
.

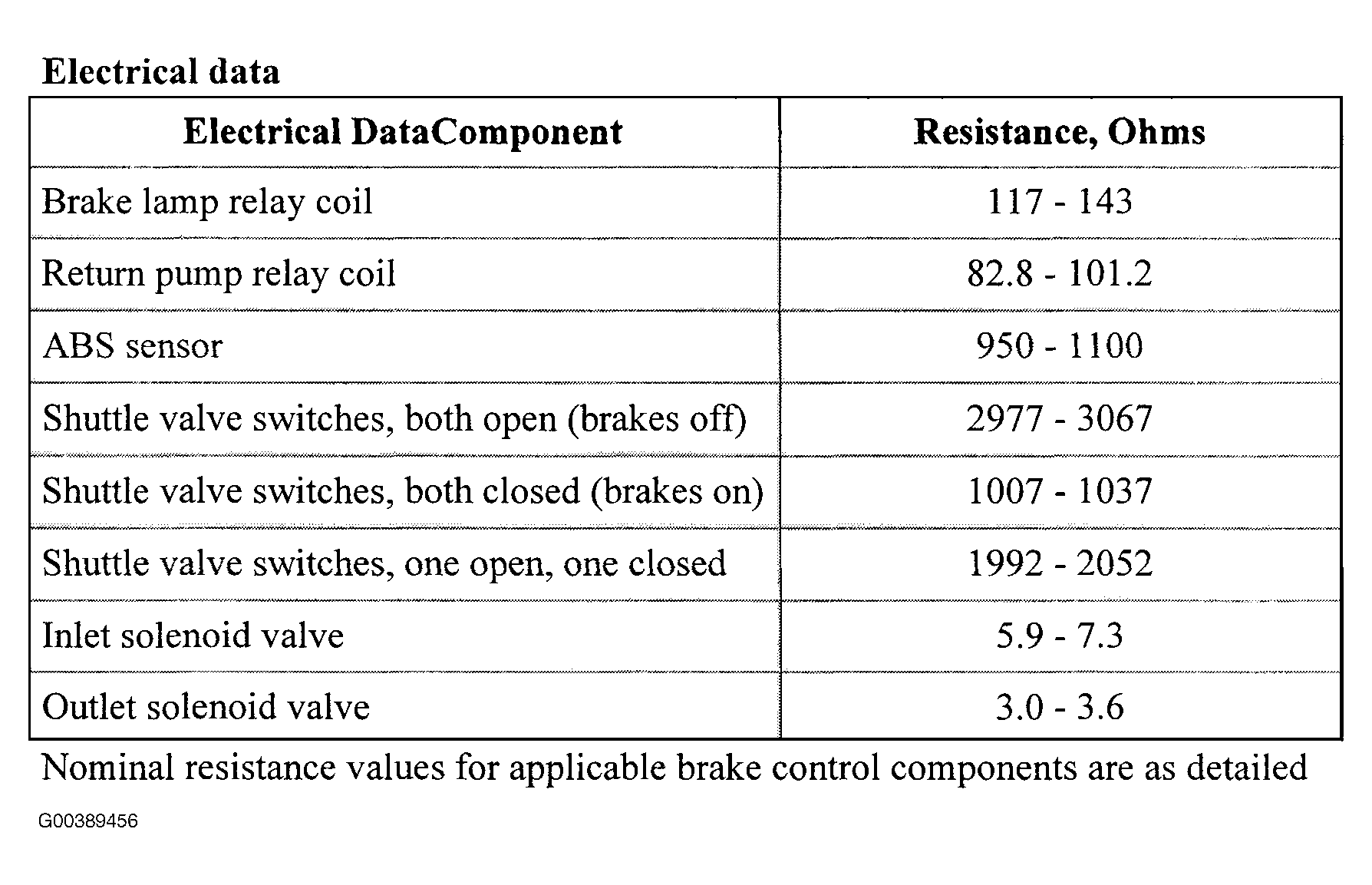

Fig 1: Electrical Data
Courtesy of LAND ROVER NORTH AMERICA, INC.
