Switch - Column Adjustment - Control: Removal

Remove rotary coupler:
- For 2002 models, see ROTARY COUPLER (CLOCKSPRING) .
- For 2003 models, see ROTARY COUPLER (CLOCKSPRING) .
- For 2004-05 models, see ROTARY COUPLER (CLOCKSPRING) .
Release clip securing switch to rotary coupler and remove switch assembly. See Fig 1.

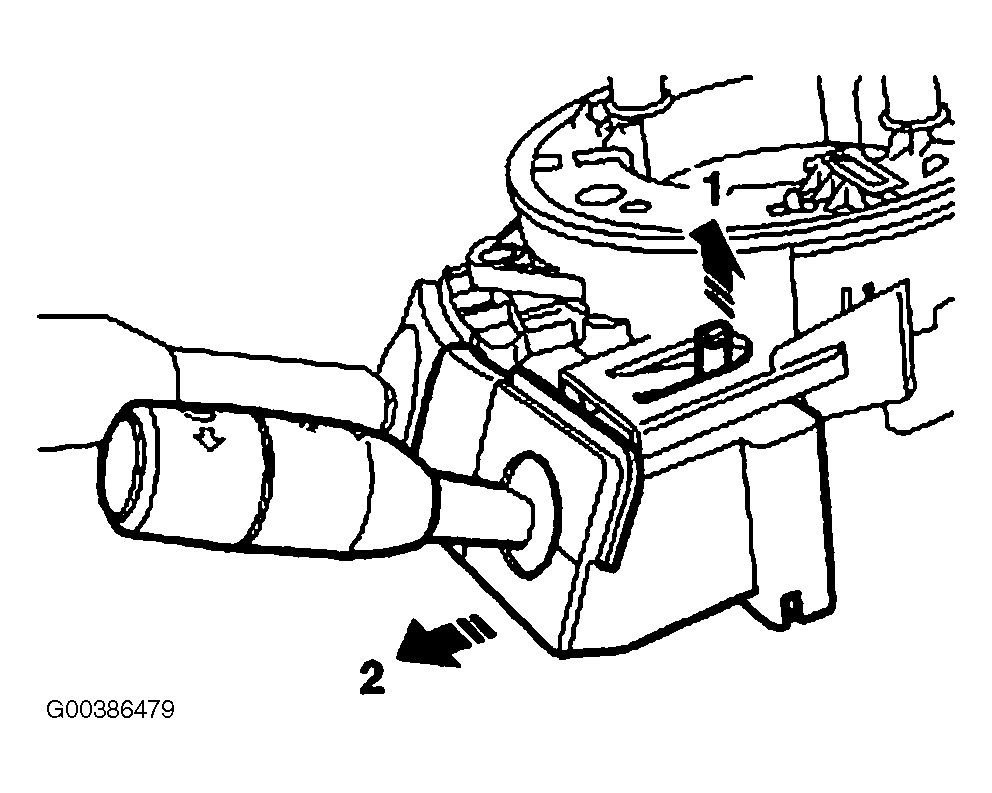

Fig 1: Removing Column Adjustment Control Switch

Courtesy of LAND ROVER NORTH AMERICA, INC.
