Steering Control Diagrams: Servotronic

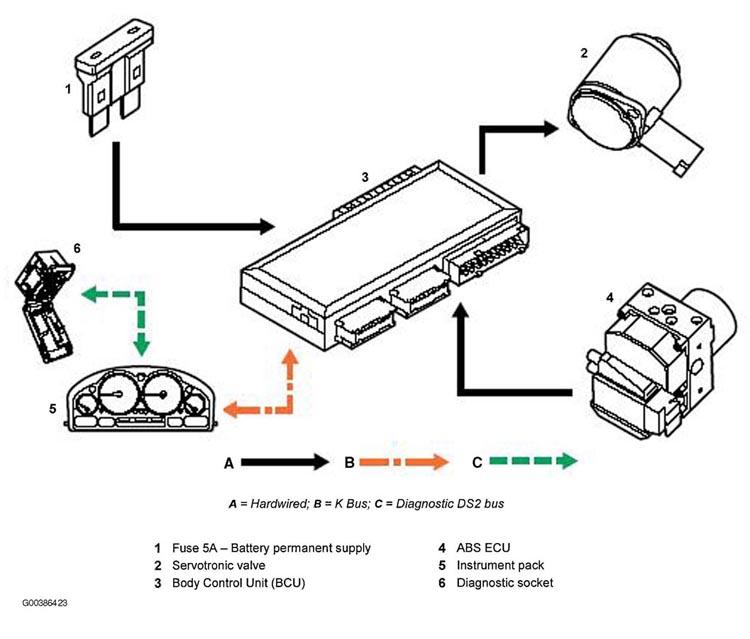

For control diagram of Servotronic steering controls, see Fig 1.

Fig 1: Steering Control Diagram - Servotronic
G00386423Courtesy of LAND ROVER NORTH AMERICA, INC.
