Communication Data Buses Control Diagram - Sheet

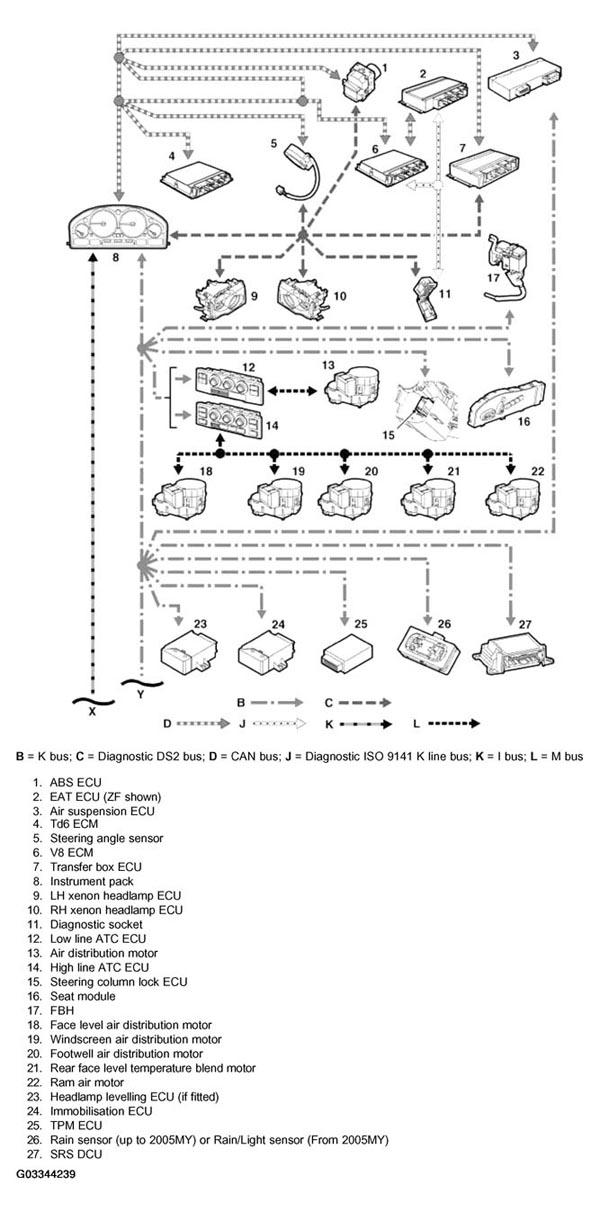

Fig 1: Identifying Communication Data Buses Control Diagram
G03344239Courtesy of LAND ROVER NORTH AMERICA, INC.
