Automatic Transmission

WARNING: This page is about a different car, the 2005 Land Rover Range Rover, 2004 Land Rover Range Rover, and 2003 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position vehicle on lift. Apply handbrake and position chocks under front and rear wheels. Connect TestBook/T4 to monitor transmission fluid temperature.
  2. Start engine and move selector lever from Park through all gear positions, pausing in each gear position for 2-3 seconds and return to Park position.
  3. Clean area around filler/level plug. See Fig 1 . With the engine running, remove filler/level plug and allow excess fluid to drain off.
  4. If no fluid loss is apparent when filler/level plug is removed, with the engine at idle, continue to fill transmission with recommended fluid until a small thread of fluid runs from oil filler/level plug hole.
  5. Move selector lever from Park through each gear position and return to Park, allowing any excess fluid to drain off. See RECOMMENDED FLUID  .
  6. Fit NEW sealing washer and tighten filler/level plug to 35 N.m (26 lbs. ft.). Lower vehicle. Turn engine off. Disconnect TestBook/T4.

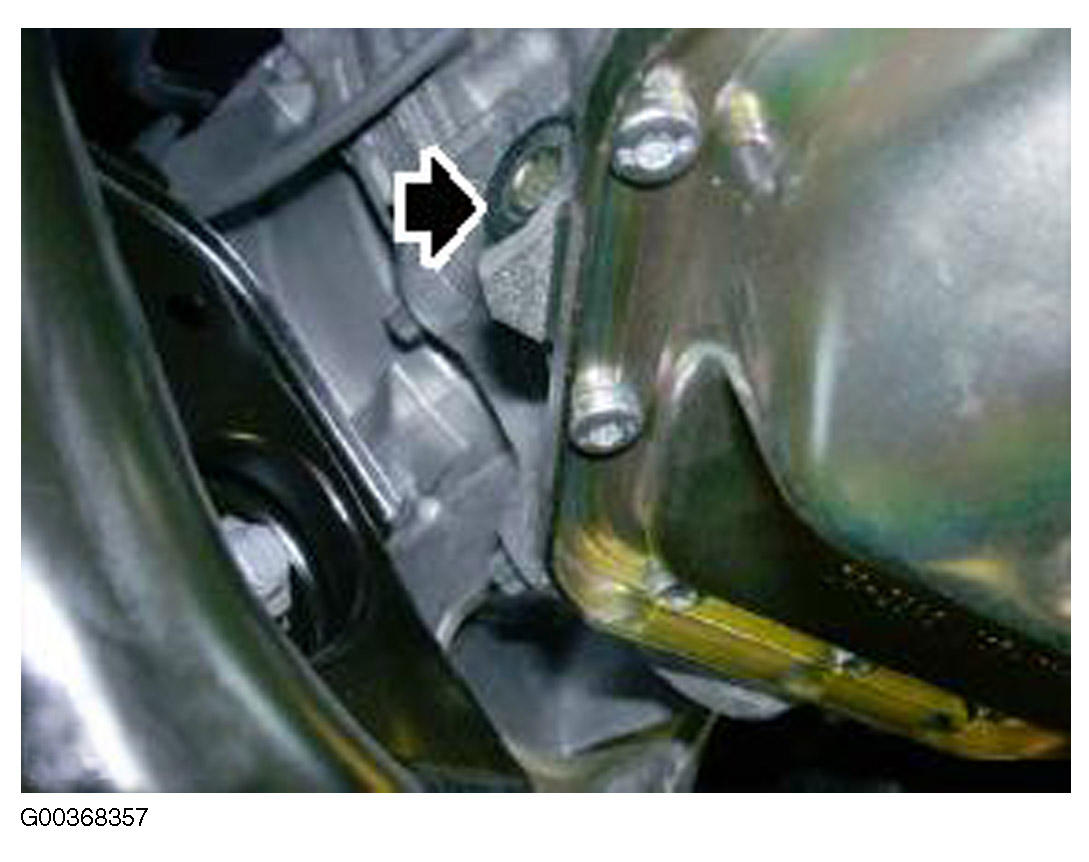

Fig 1: Check & Top-Up A/T Fluid
G00368357Courtesy of LAND ROVER NORTH AMERICA, INC.
