88.15.07 Clock: Remove

  1. Remove clock finisher from fascia.

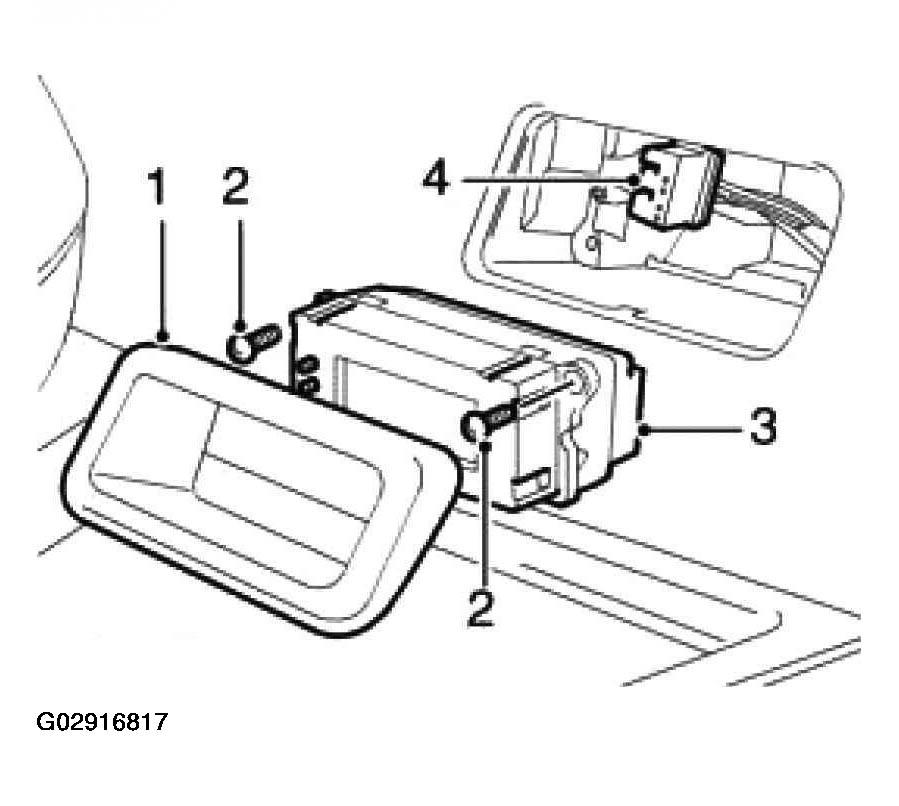

    Fig 1: Removing Clock
    G02916817Courtesy of LAND ROVER NORTH AMERICA, INC.
  2. Remove 2 screws securing clock to fascia.
  3. Release clock to gain access to multiplug.
  4. Disconnect multiplug and remove clock.
