Automatic Transmission/Transaxle





JATCO Automatic Gearbox

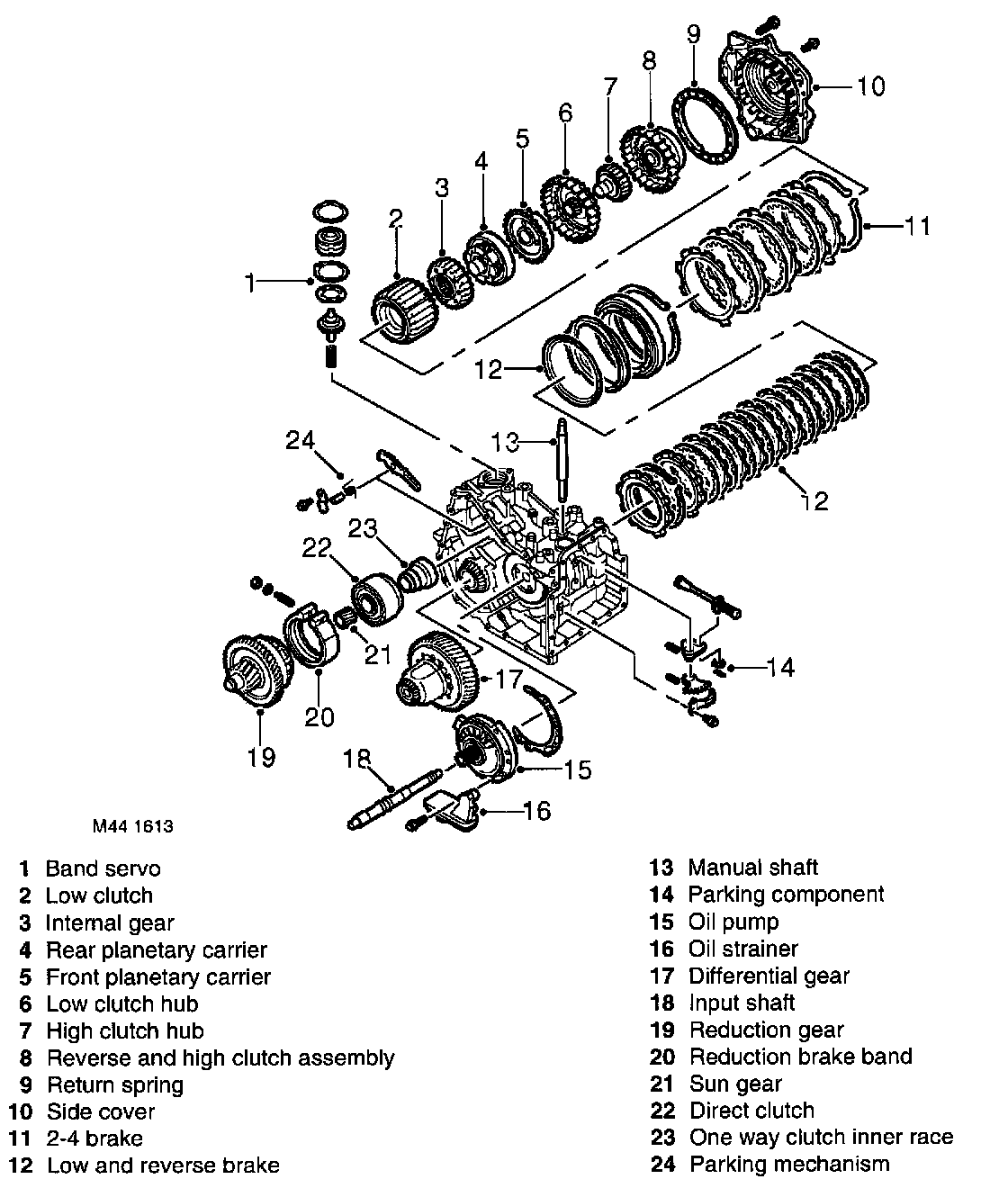

JATCO Automatic Gearbox - Exploded View

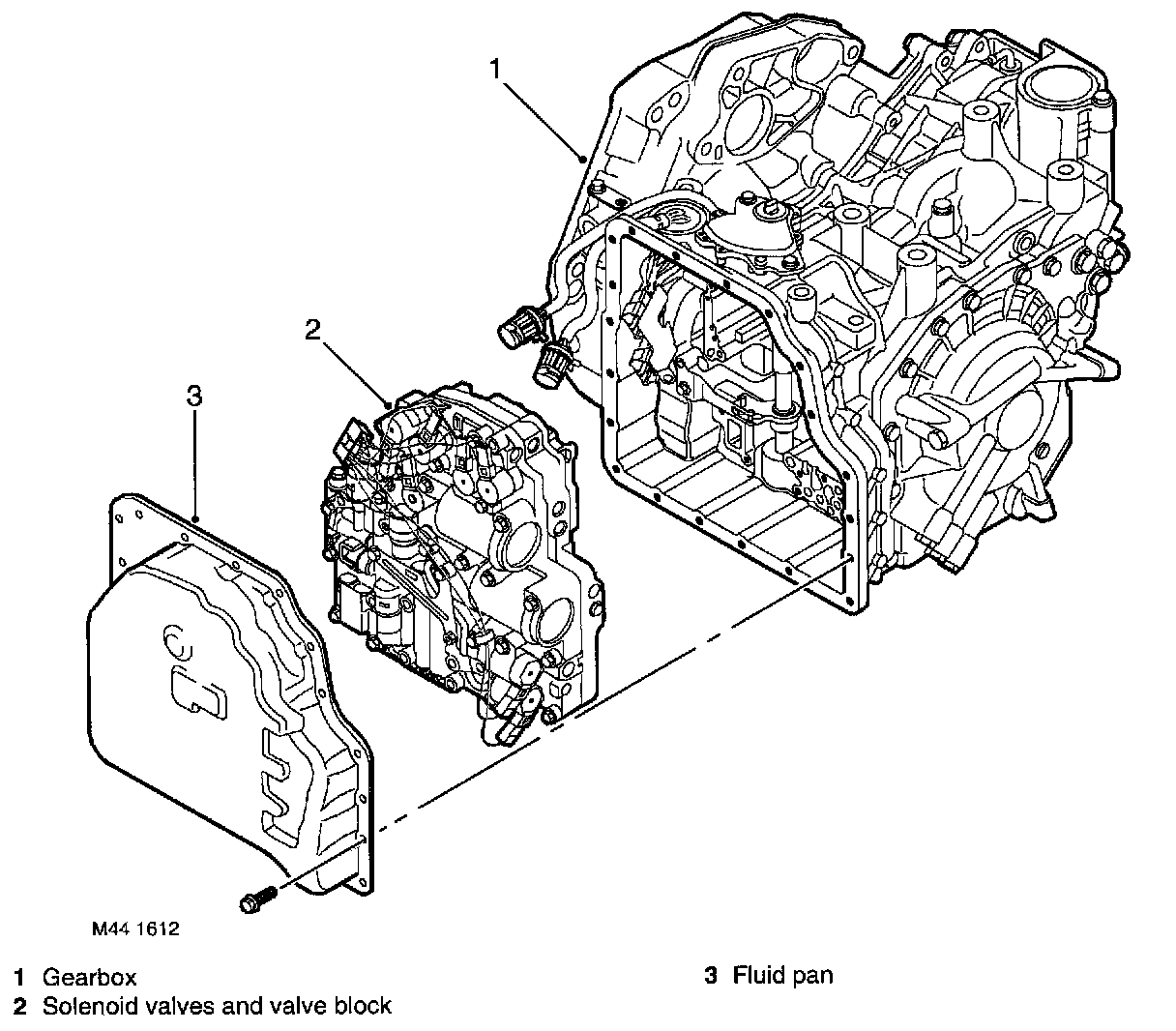

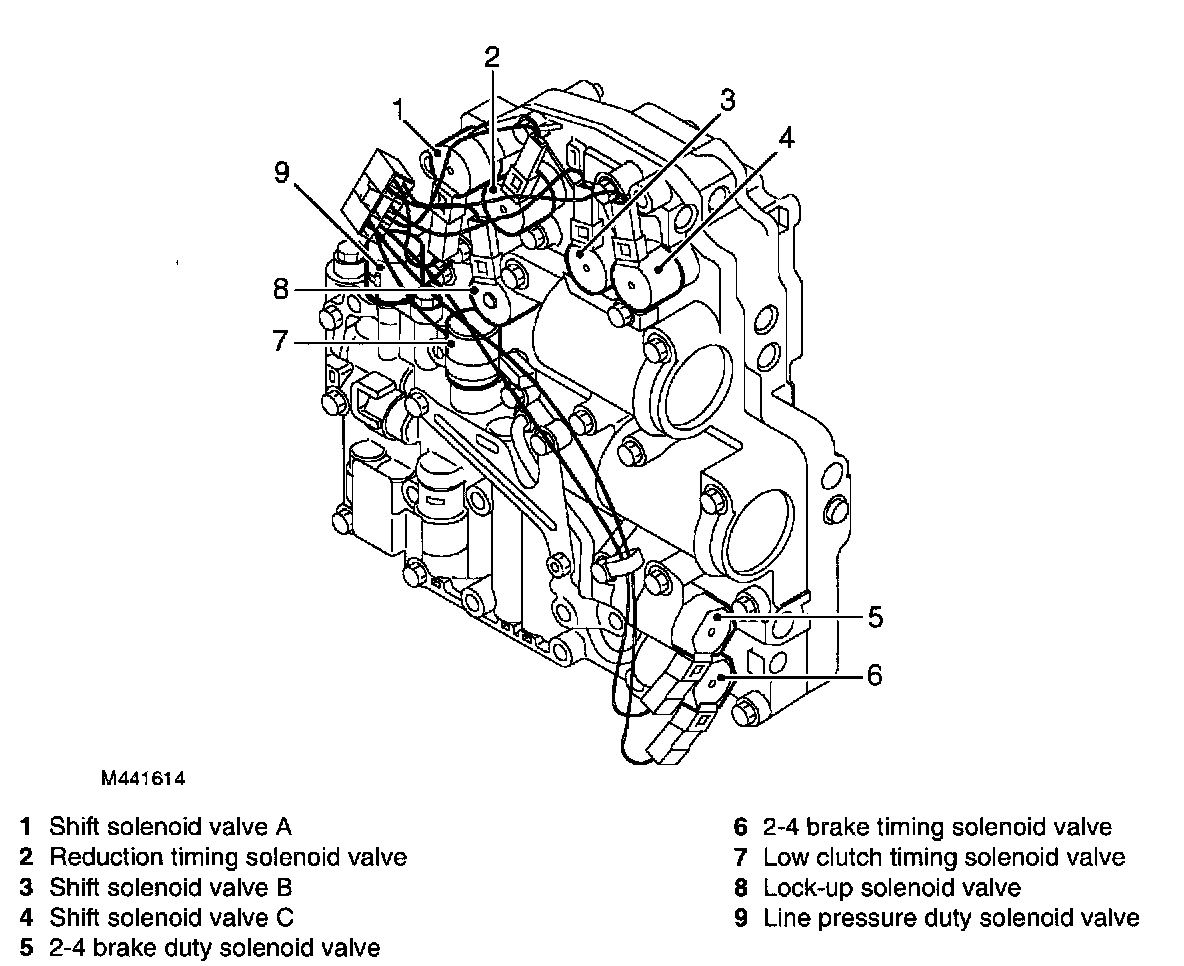

JATCO Automatic Gearbox - Valve Block and Solenoid Valves
