Shift Cable: Adjust

  1. Position vehicle on ramp. See JACKING & HOISTING .
  2. Select position Park.
  3. Loosen selector cable trunnion nut. See Fig 1.
  4. Ensure that gearbox selector lever is in Park position, (fully forward) and tighten trunnion nut.
  5. Lower ramp.

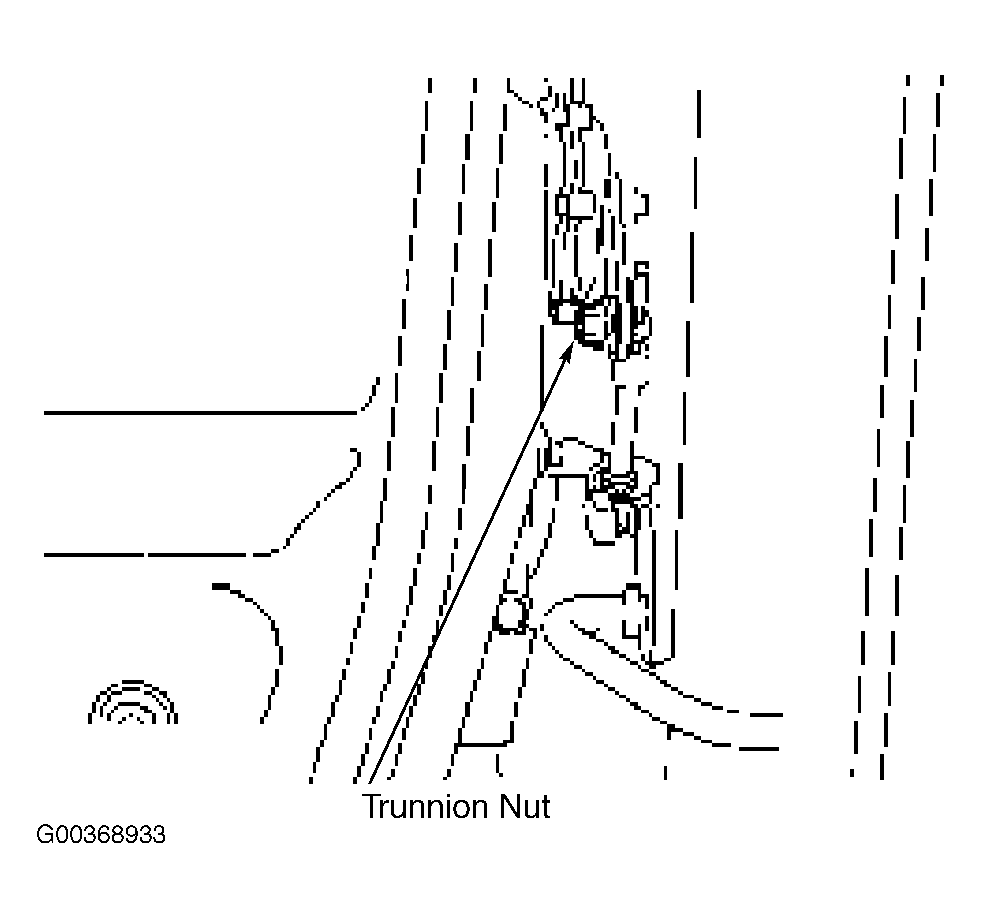

Fig 1: Adjusting Shift Cable
G00368933Courtesy of LAND ROVER NORTH AMERICA, INC.
