Damper - Steering: Removal

    WARNING: DO NOT work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  1. Raise front of vehicle.
  2. Remove 2 nuts and bolts securing steering damper to drag link and chassis. See Fig 1.
  3. Compress damper and remove from vehicle.

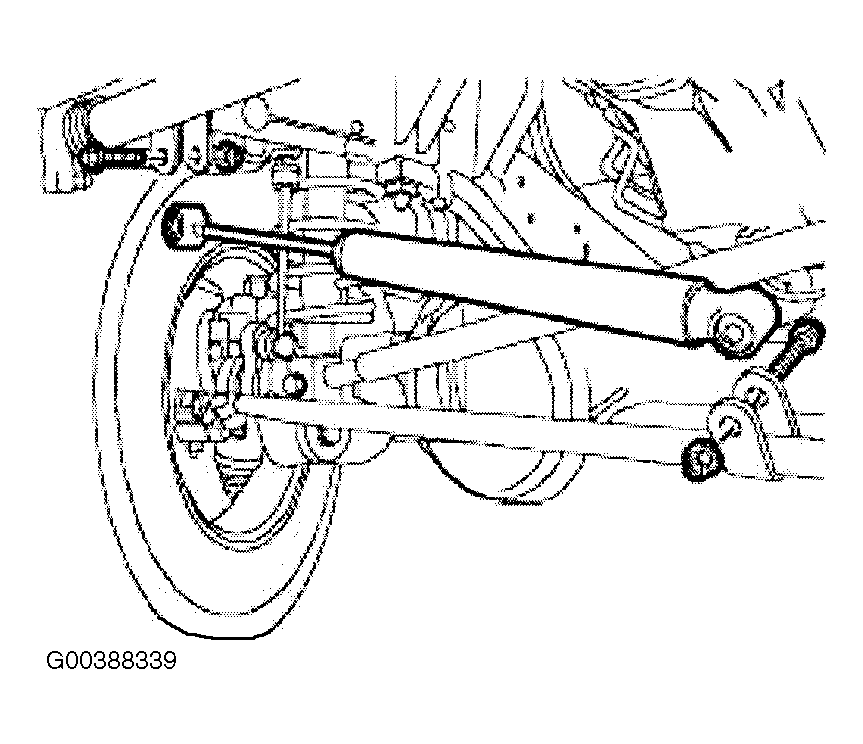

Fig 1: Removing Steering Damper-To-Drag Link Nuts & Bolts
G00388339Courtesy of LAND ROVER NORTH AMERICA, INC.
