Ignition Switch: Service and Repair

Remove

1. Disconnect battery negative lead.
2. Remove steering column nacelle.

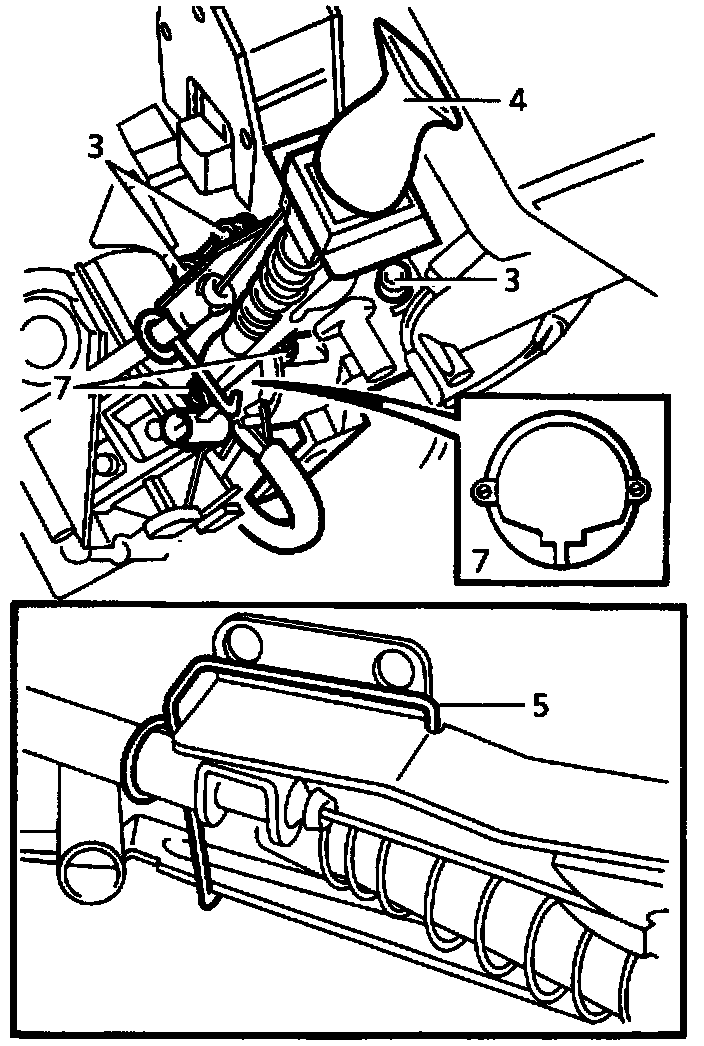

3. Remove 3 bolts securing steering tilt lever to column.
4. Release column tilt lever assembly and plunger.
5. Collect lever return spring.
6. Collect plunger and spring if necessary.
7. Remove 2 screws securing ignition switch.
8. Release harness clip from steering column.




9. Release switch multi plug from bracket.
10. Remove ignition switch.

Refit
11. Reverse removal procedure.
