Section 2 (Disc): Overhaul

WARNING: This page is about a different car, the 1998 Land Rover Range Rover, 1998 Land Rover Discovery, 1997 Land Rover Range Rover, 1997 Land Rover Discovery, and 1997 Land Rover Defender 90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: DO NOT separate caliper halves. If caliper halves leak or are separated, caliper assembly must be replaced.

NOTE: For exploded view of front brake caliper, see Fig 1 or Fig 2. For exploded view of rear brake caliper, see Fig 3. For exploded view of master cylinder, see Fig 4.

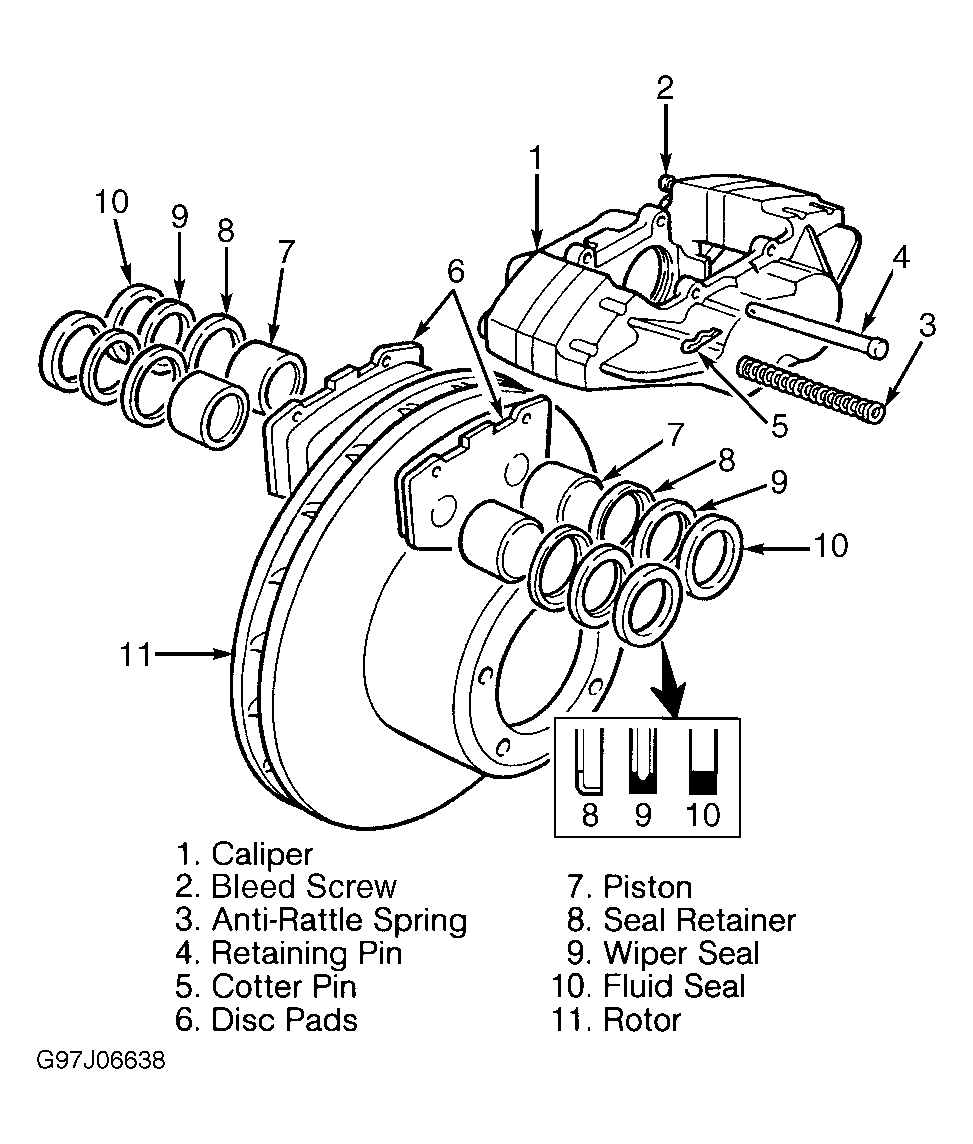

Fig 1: Exploded View Of Front Caliper Assembly (Defender & Discovery)

Courtesy of LAND ROVER NORTH AMERICA, INC.

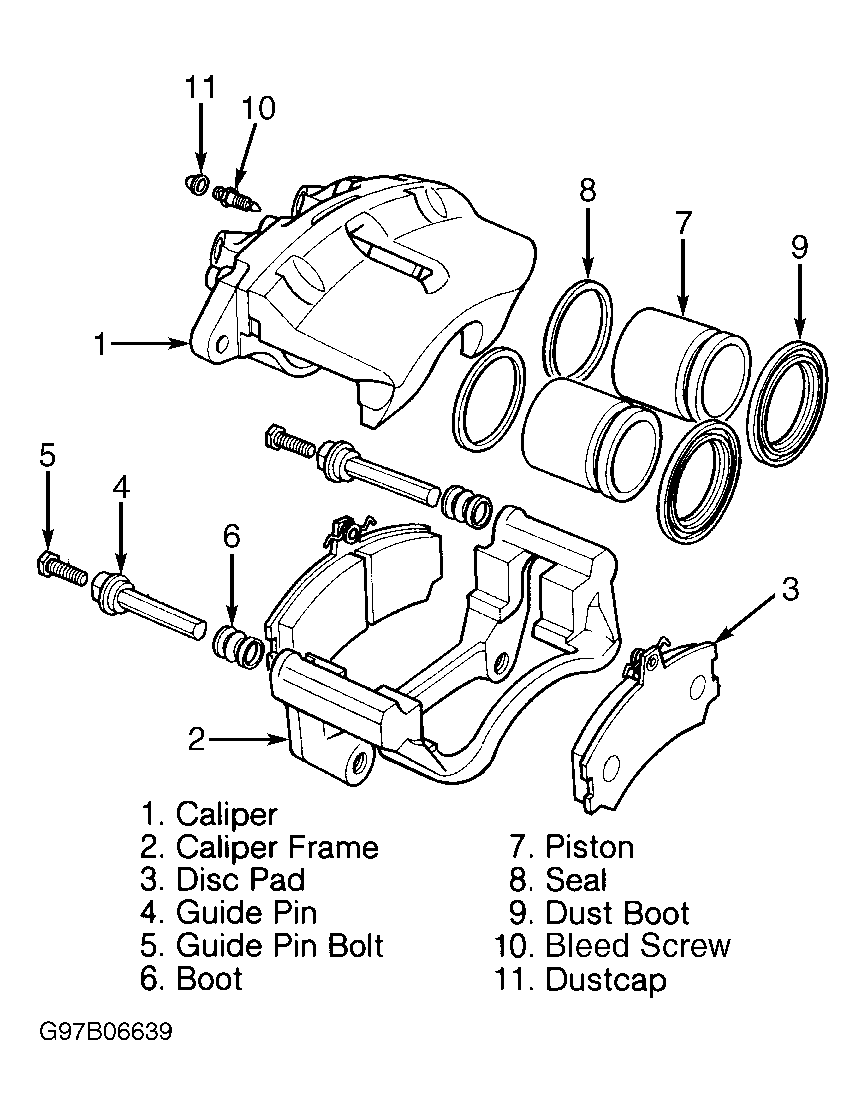

Fig 2: Exploded View Of Front Caliper Assembly (Range Rover)

Courtesy of LAND ROVER NORTH AMERICA, INC.

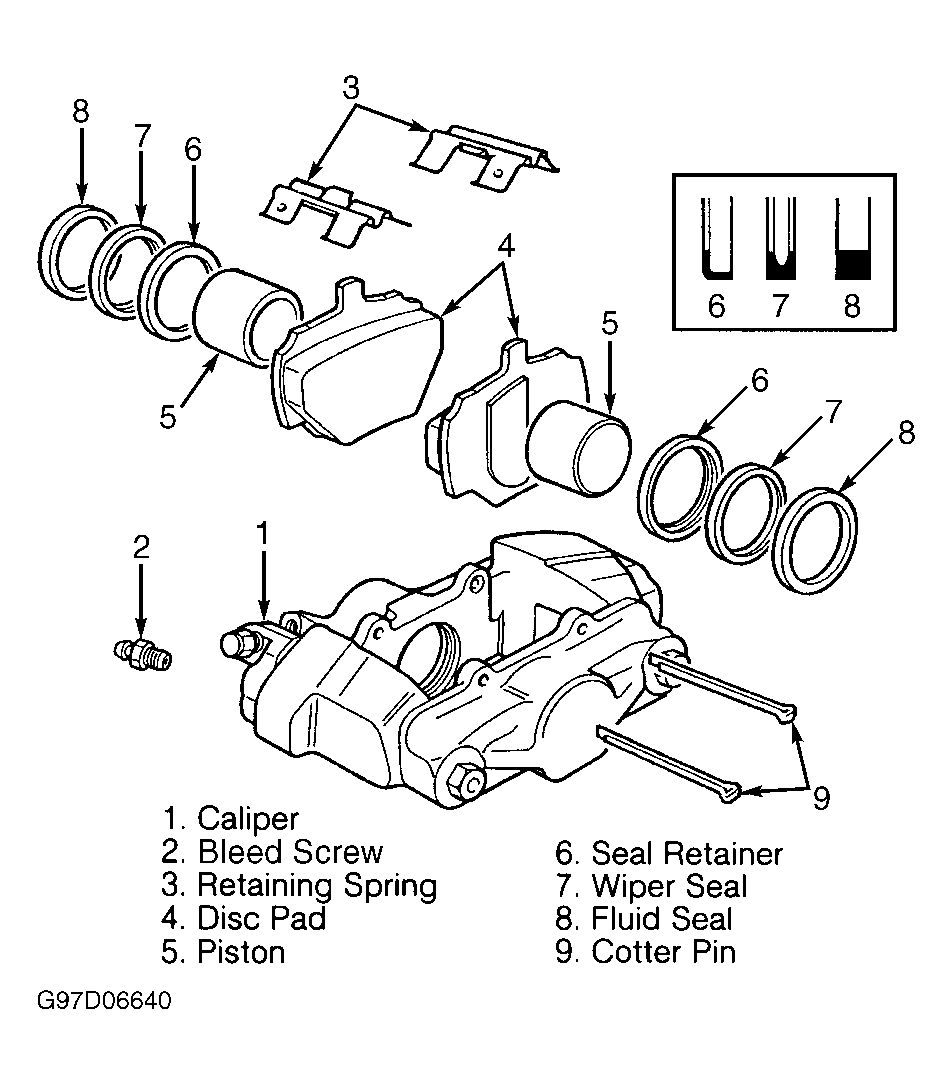

Fig 3: Exploded View Of Rear Caliper Assembly (Defender & Discovery)

Courtesy of LAND ROVER NORTH AMERICA, INC.

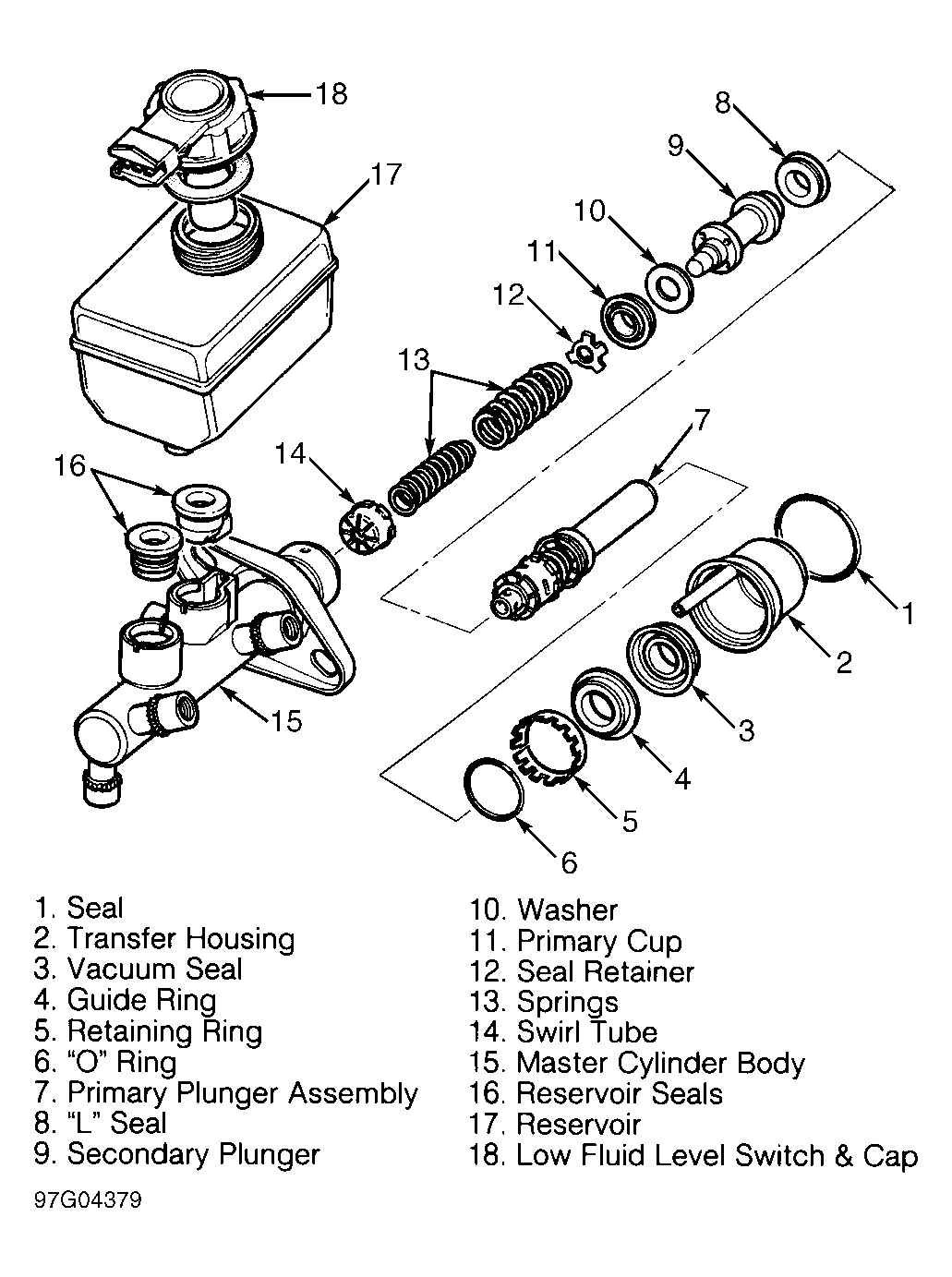

Fig 4: Exploded View Of Master Cylinder Assembly (Defender & Discovery)

Courtesy of LAND ROVER NORTH AMERICA, INC.
