Wiring Diagrams

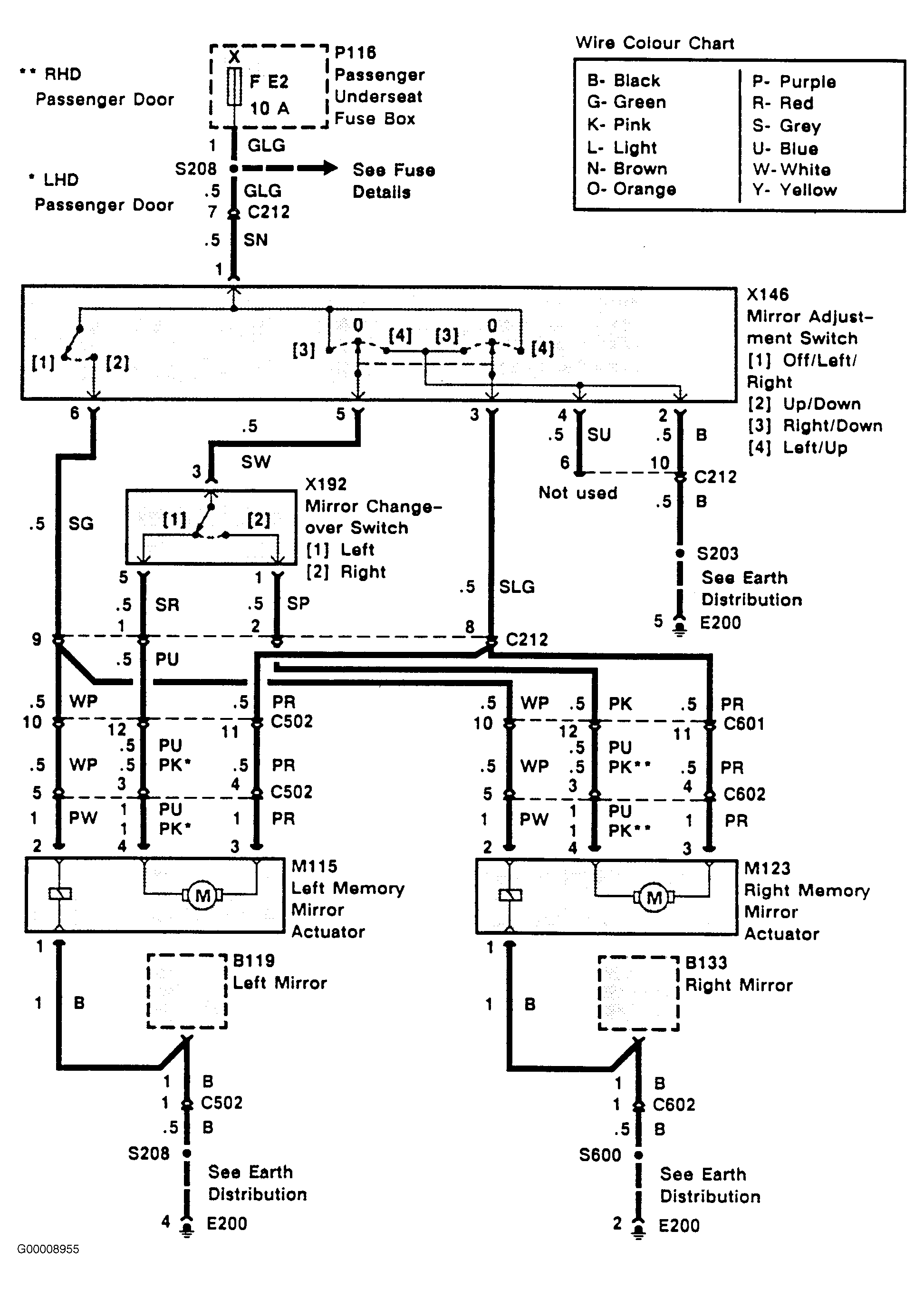

Fig 1: Power Mirrors Wiring Diagram

Courtesy of LAND ROVER NORTH AMERICA, INC.

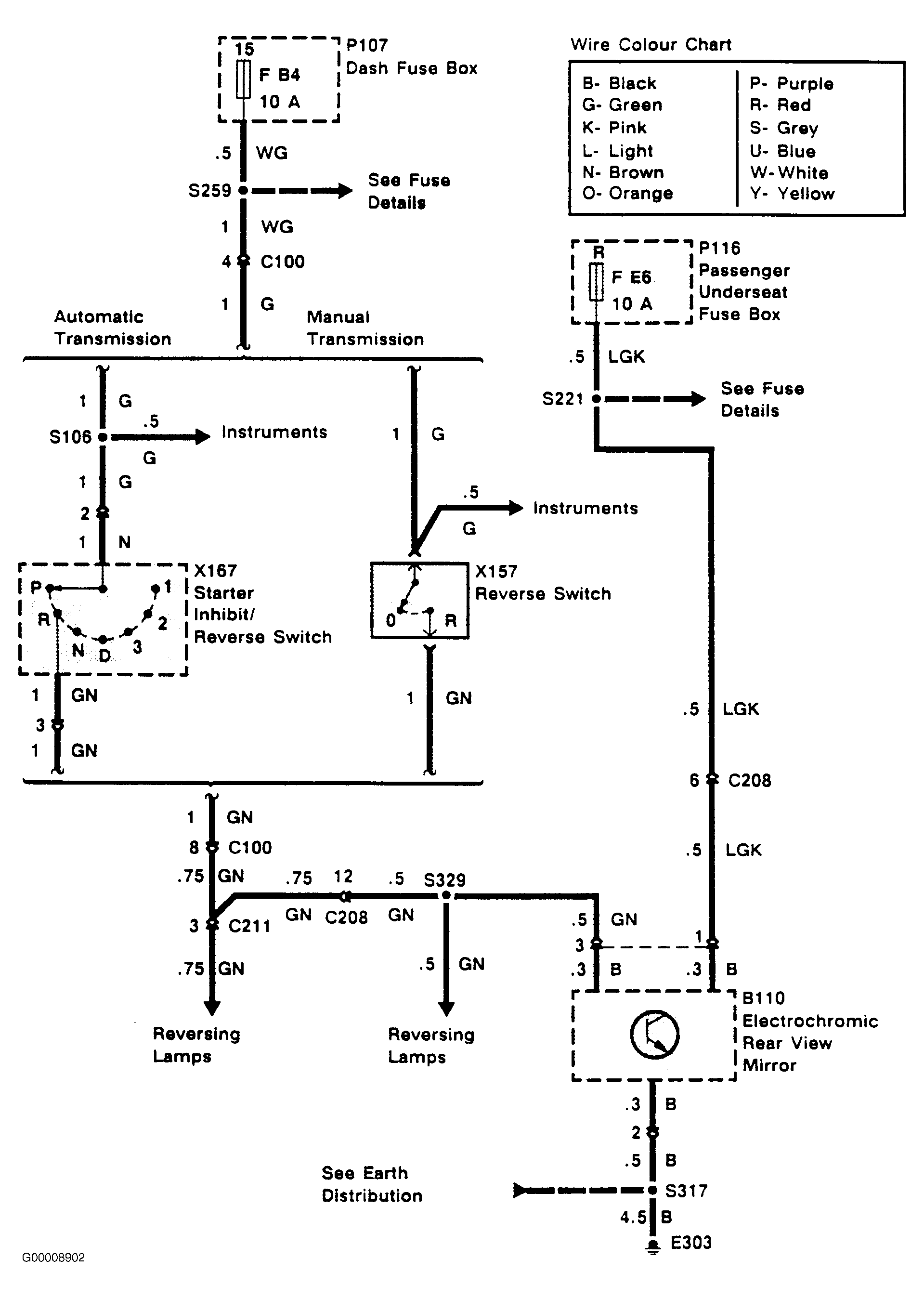

Fig 2: Electrochromic Mirror Wiring Diagram (1992)

Courtesy of LAND ROVER NORTH AMERICA, INC.

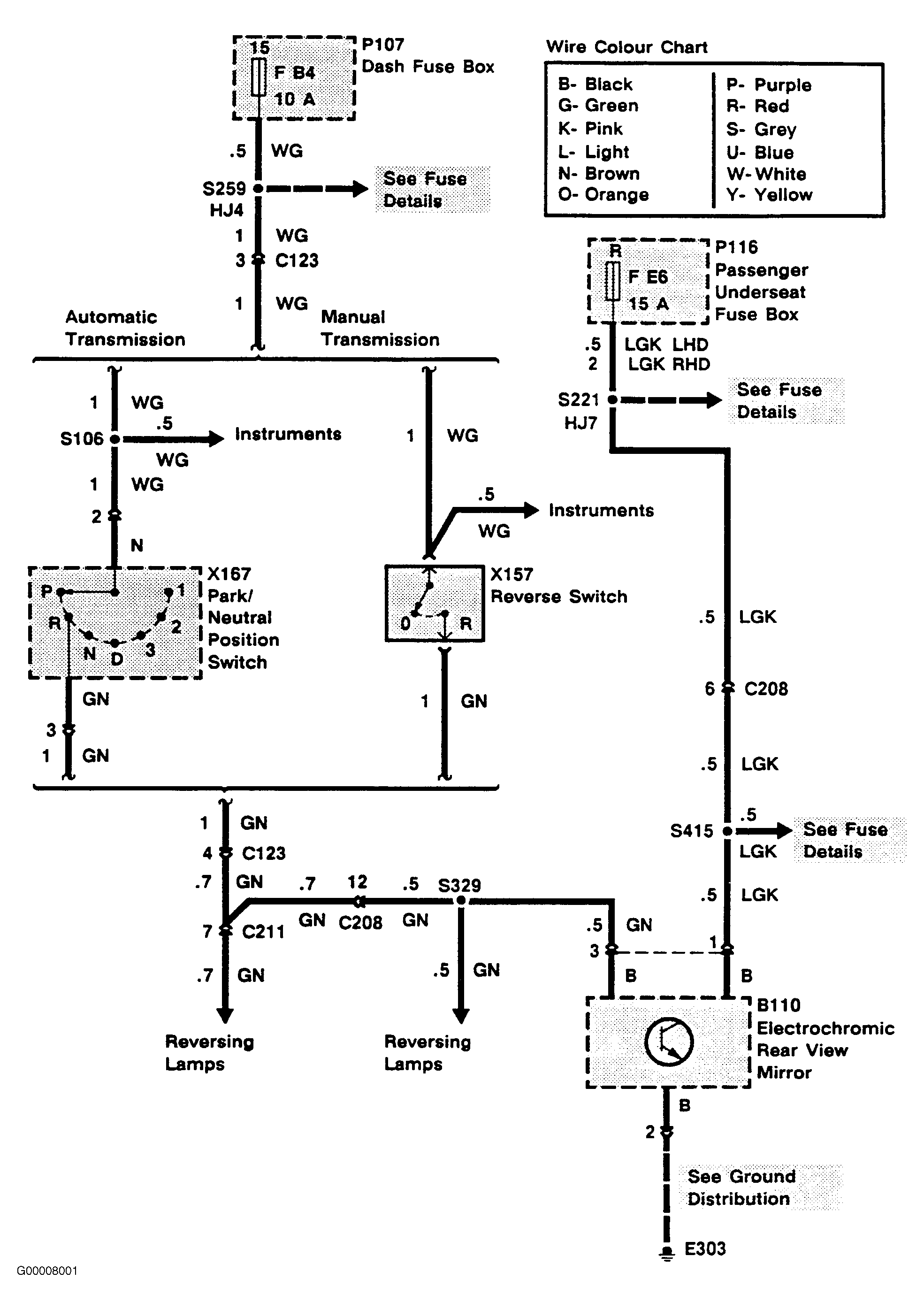

Fig 3: Electrochromic Mirror Wiring Diagram (1993-94)

Courtesy of LAND ROVER NORTH AMERICA, INC.
