Components

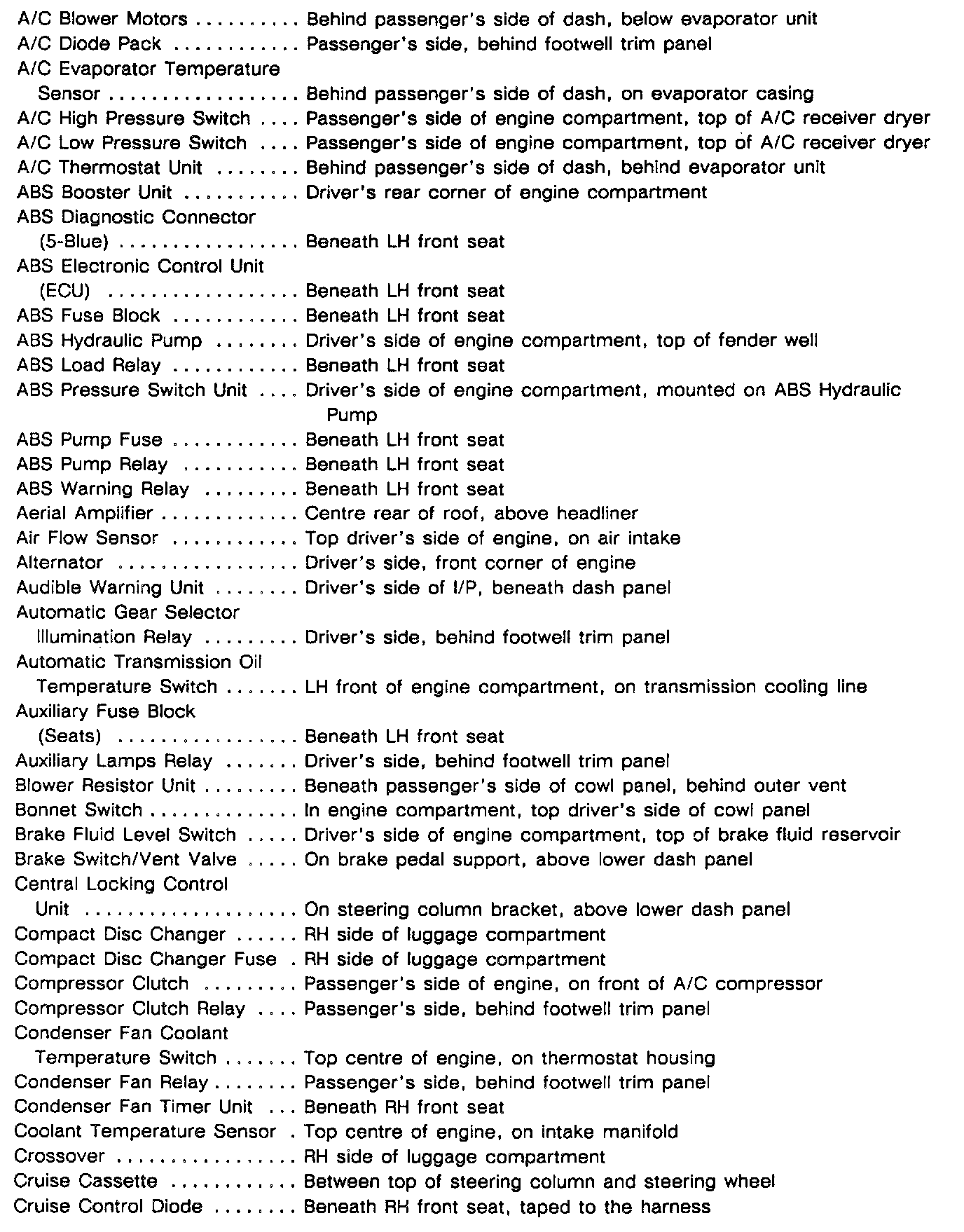

A/C Blower Motors - Cruise Control Diode:

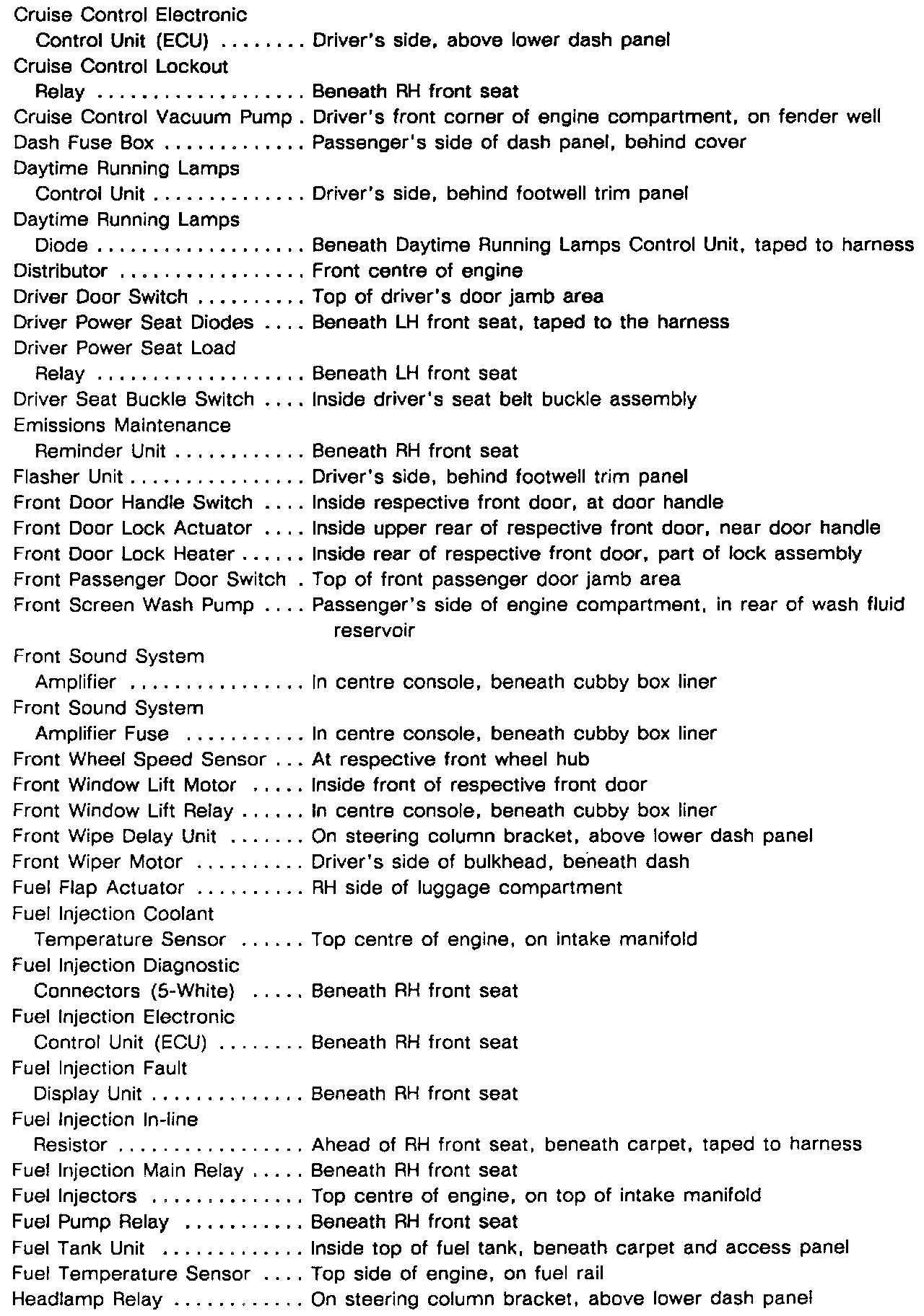

Cruise Control ECU - Head Lamp Relay:

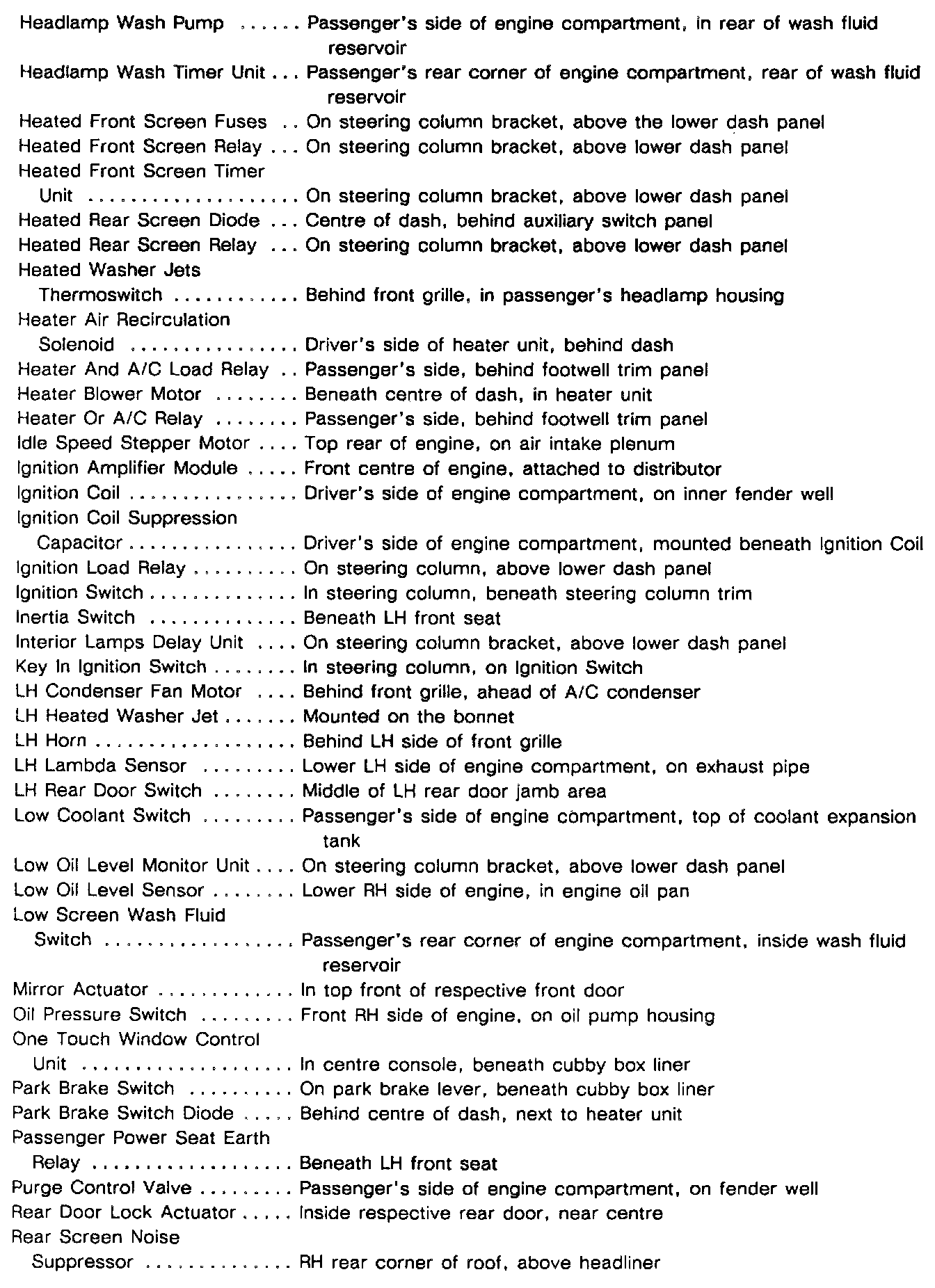

Headlamp Wash Pump - Rear Screen Noise Suppressor:

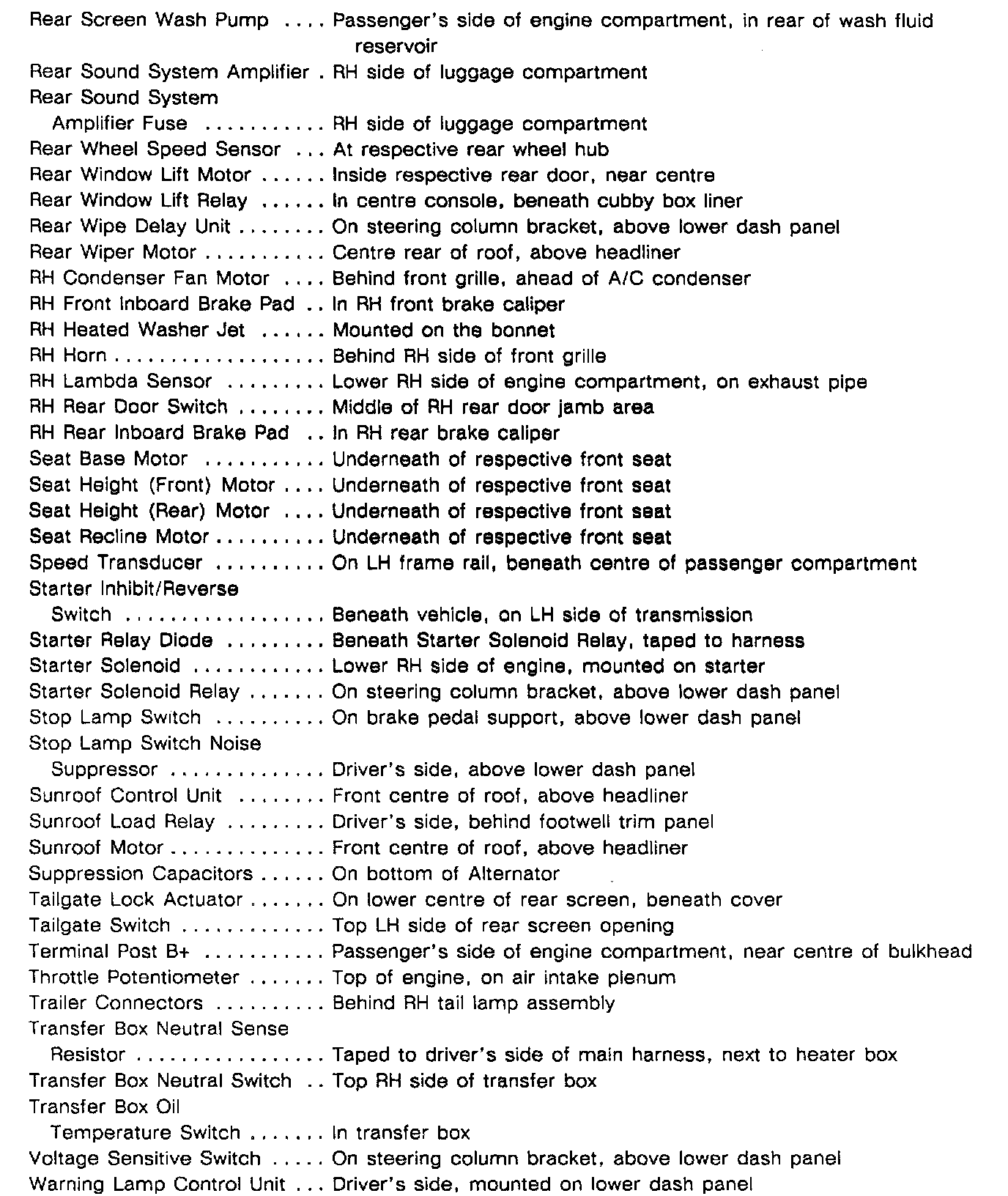

Rear Screen Wash Pump - Warning Lamp Control Unit:
