Drop Arm Ball Joint: Disassembly

Remove drop arm. See DROP ARM .
Remove spring rings and dust cover. See Fig 1 .
Compress ball joint to relieve spring tension while supporting housing as shown. See Fig 2 . Remove circlip and release pressure.
Remove spring, top socket and "O" ring.
Tap threaded end of ball pin to release components, remove retainer and ball pin. See Fig 3 .
Using a punch, drive out lower ball joint socket. See Fig 4 .
Clean housing and remove any burrs.

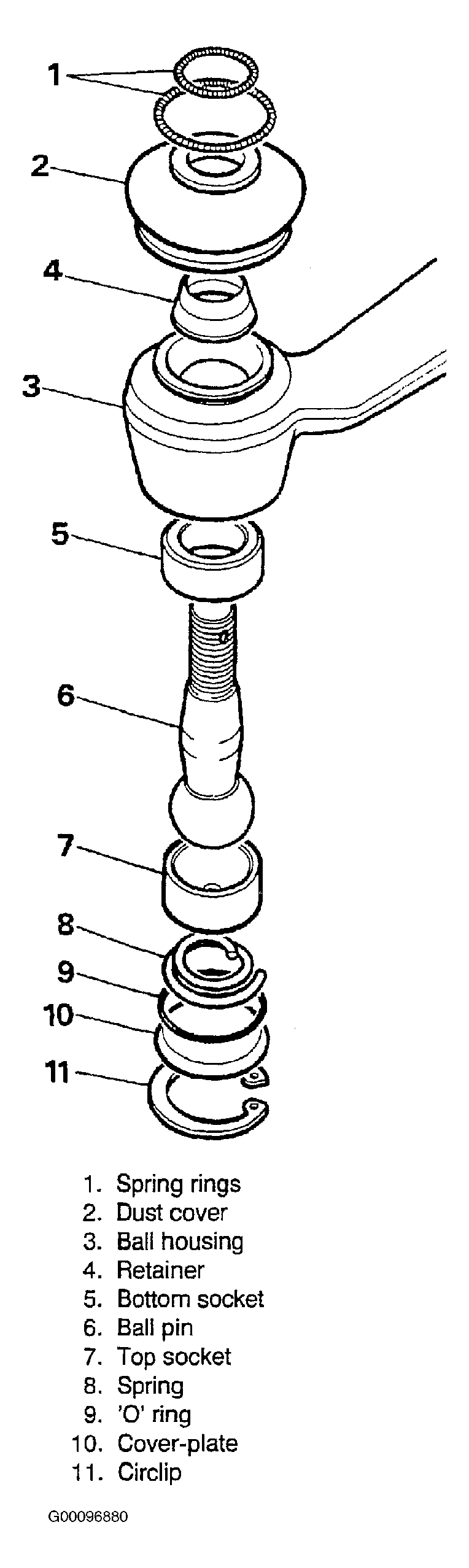

Fig 1: Exploded View Of Ball Joint Components

Courtesy of LAND ROVER NORTH AMERICA, INC.

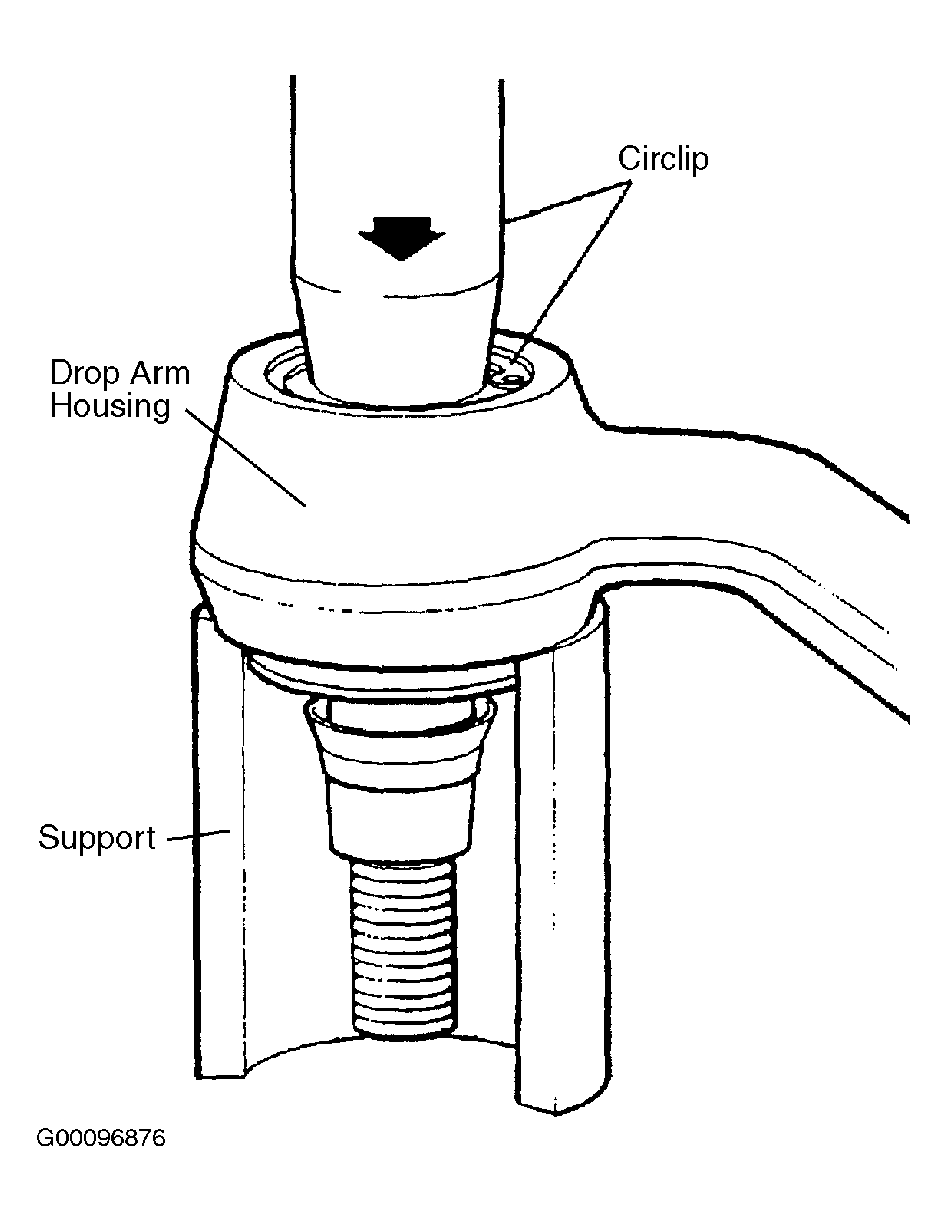

Fig 2: Removing Circlip

Courtesy of LAND ROVER NORTH AMERICA, INC.

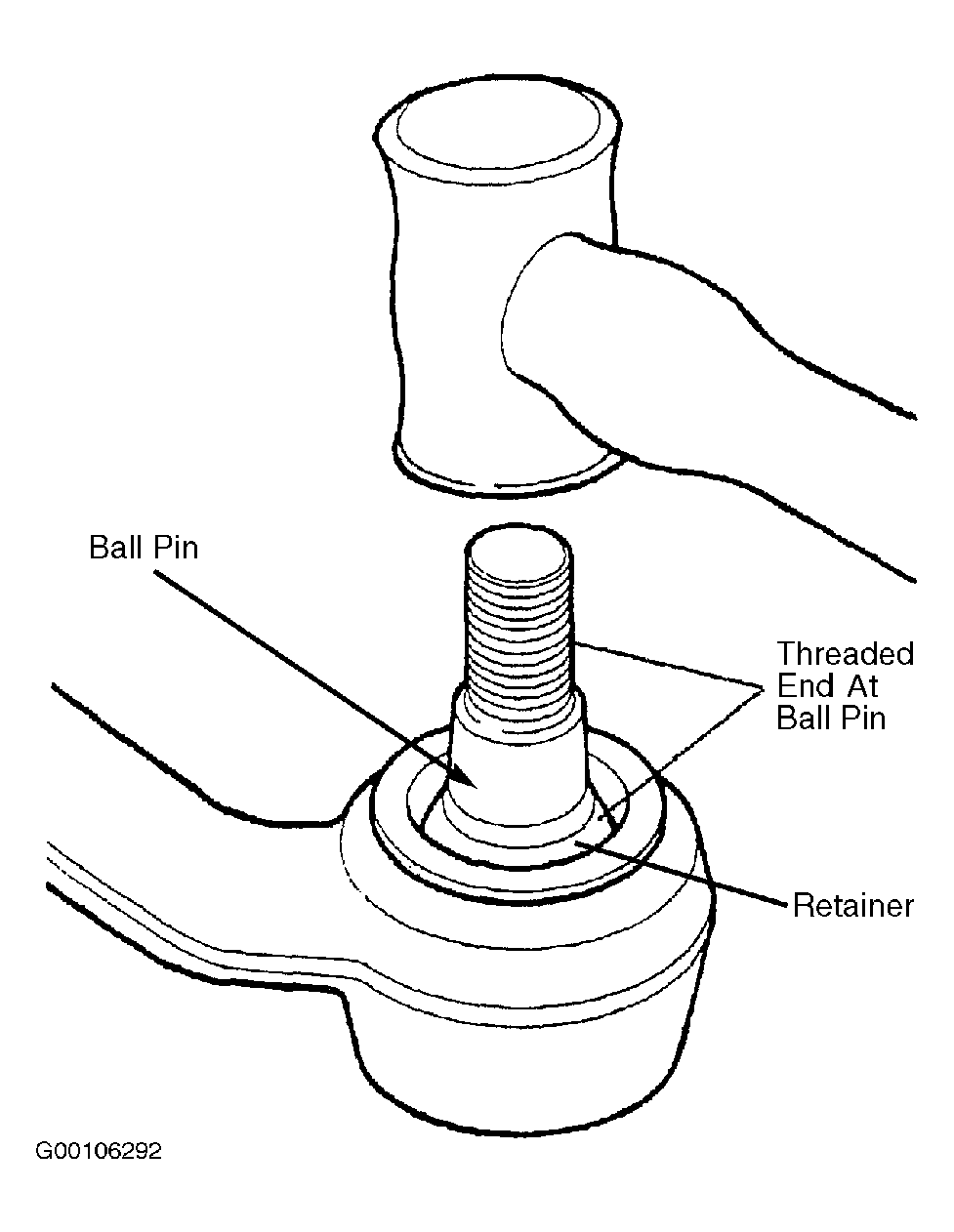

Fig 3: Disassembling Lower Ball Joint Socket Components

Courtesy of LAND ROVER NORTH AMERICA, INC.

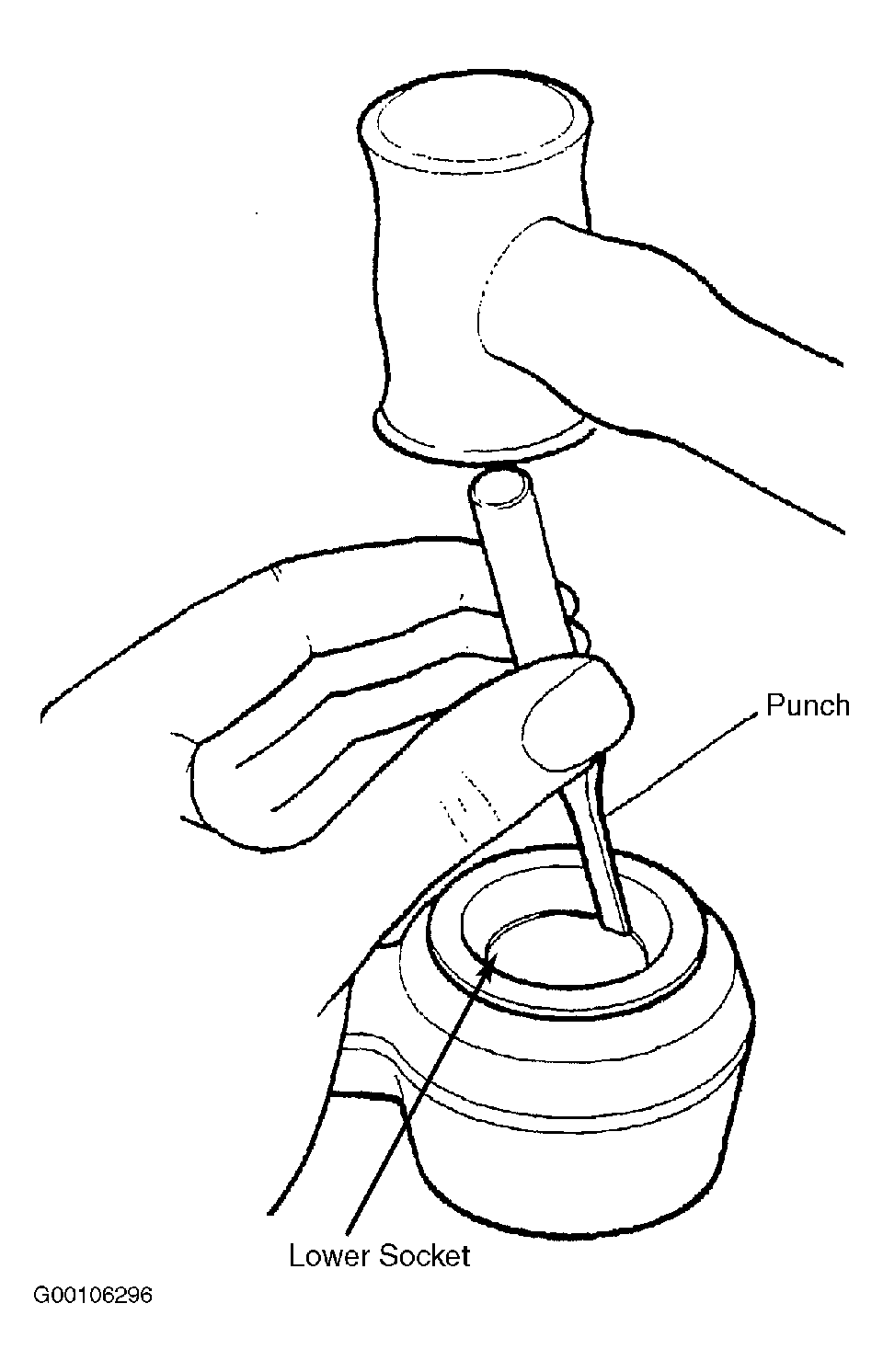

Fig 4: Disassembling Lower Socket

Courtesy of LAND ROVER NORTH AMERICA, INC.
