Drive Belt

WARNING: Disconnect the battery negative terminal before adjusting drive belts to avoid the possibility of the vehicle being started.

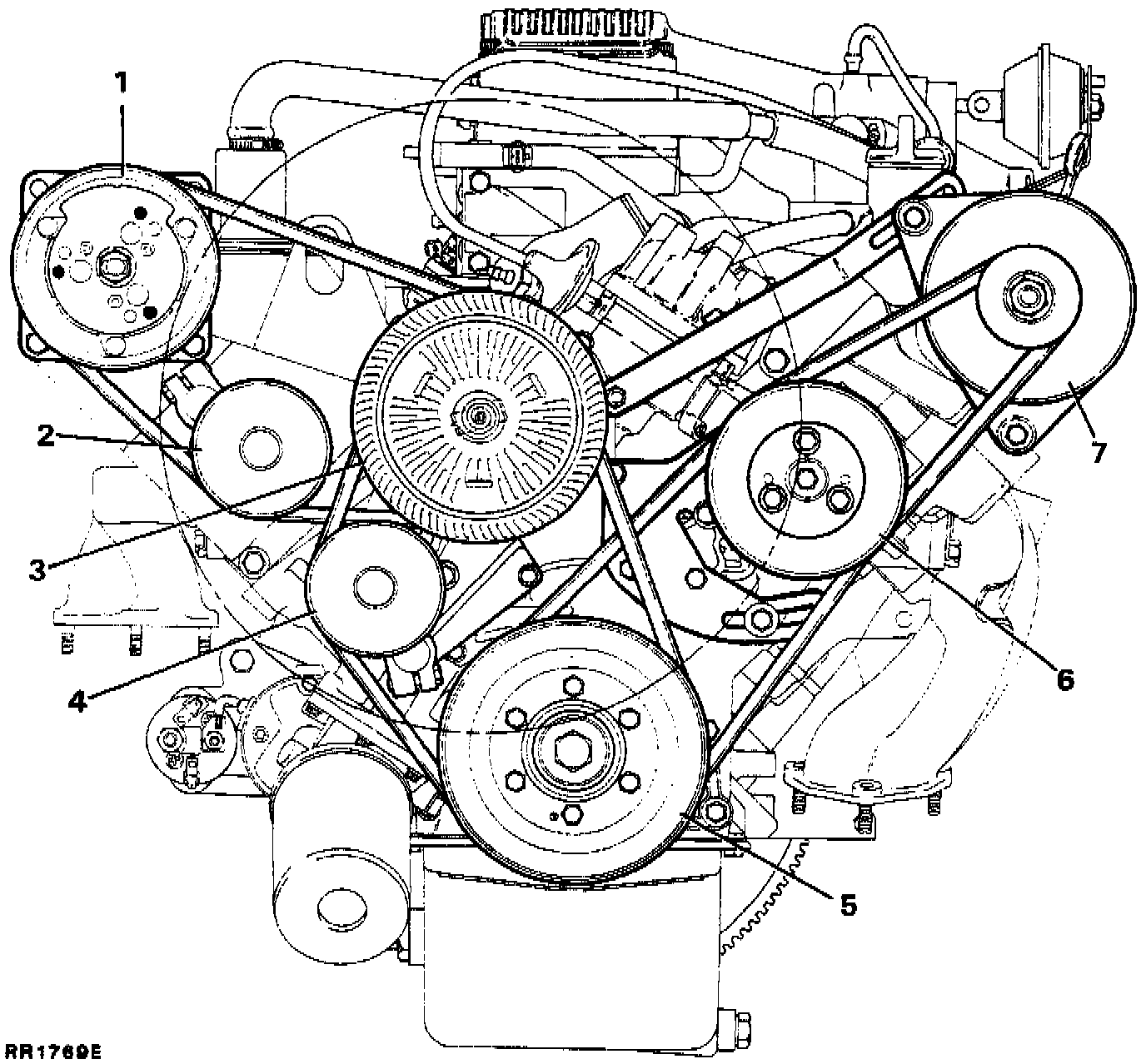

Drive Belts:





1. Air conditioning compressor
2. Idler pulley
3. Viscous fan-water pump unit
4. Idler pulley
5. Crankshaft
6. Power steering pump
7. Alternator
