Timing Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

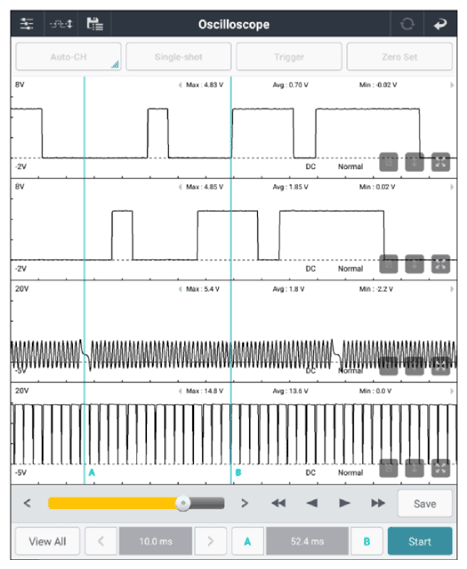

CKPS connector | 2 (signal) | CMPS - In connector | 3 (signal) | Fig. 1 |
| CMPS - Ex connector | 3 (signal) | OCV - In connector | 1 (control) | ||
Good
- Go to "IGNITION SYSTEM INSPECTION " procedure.
No Good
- Repair as necessary and than Go to "Verification Of Repair " procedure.
