Components Location

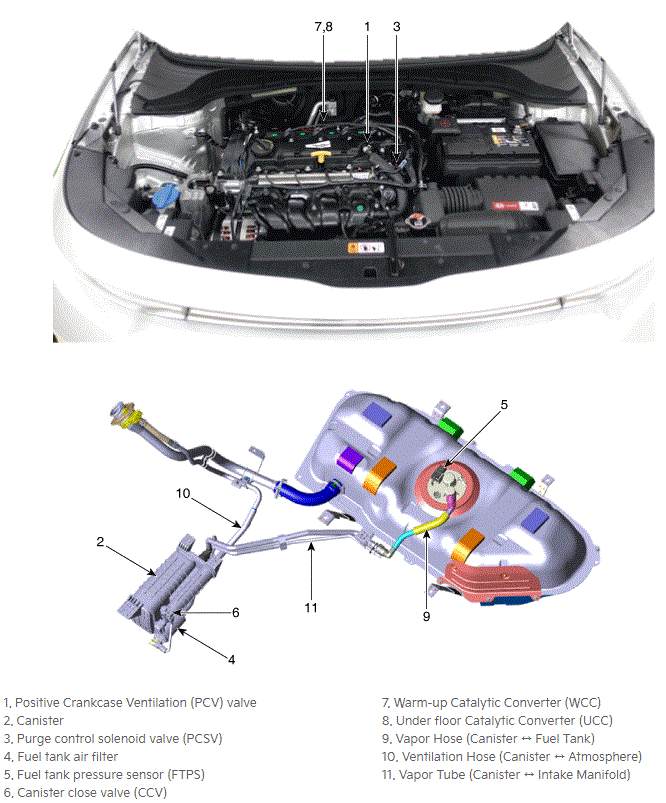

G15694426Courtesy of KIA MOTORS AMERICA, INC.

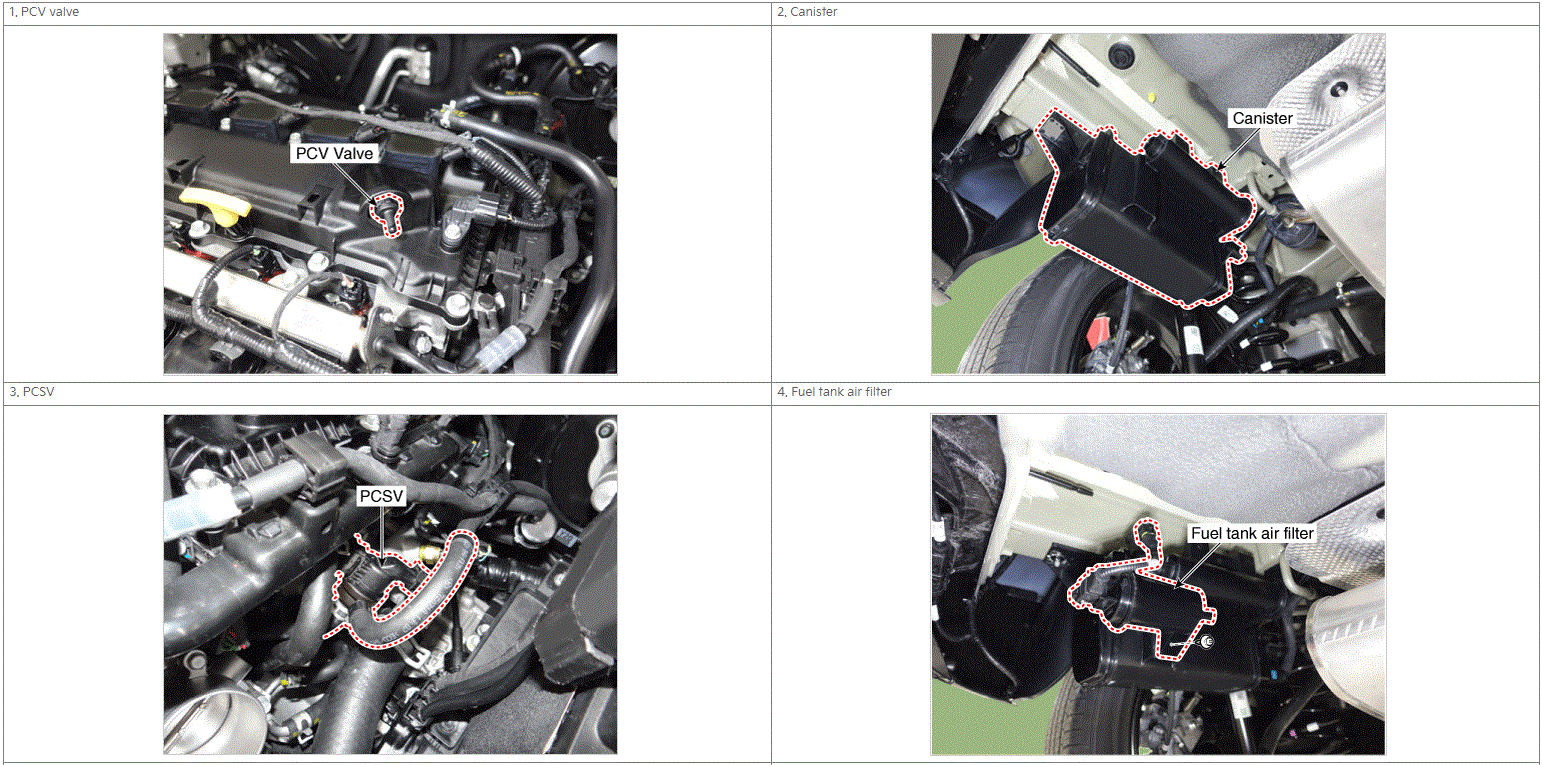

G15694427Courtesy of KIA MOTORS AMERICA, INC.

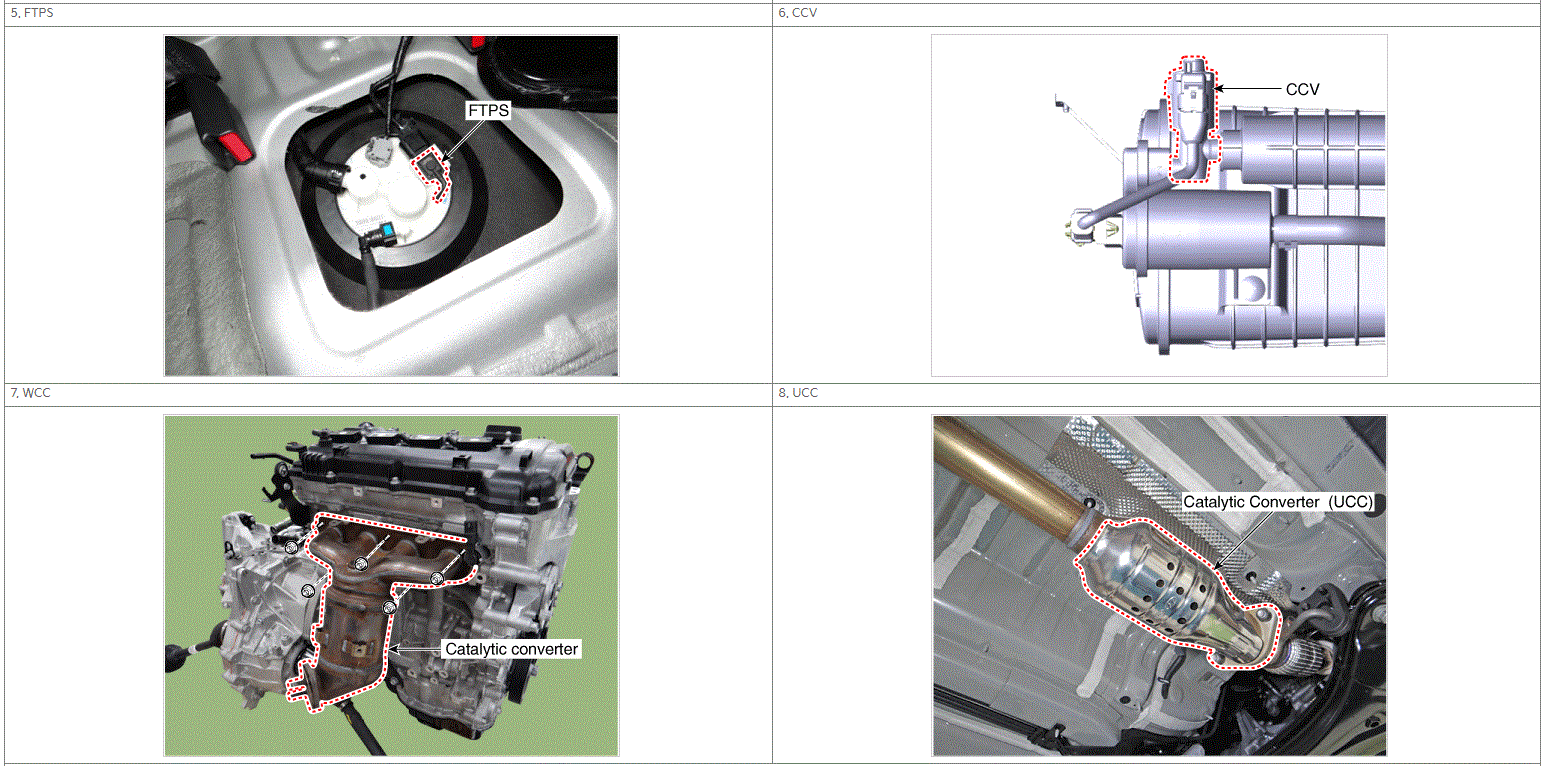

G00662650Courtesy of KIA MOTORS AMERICA, INC.

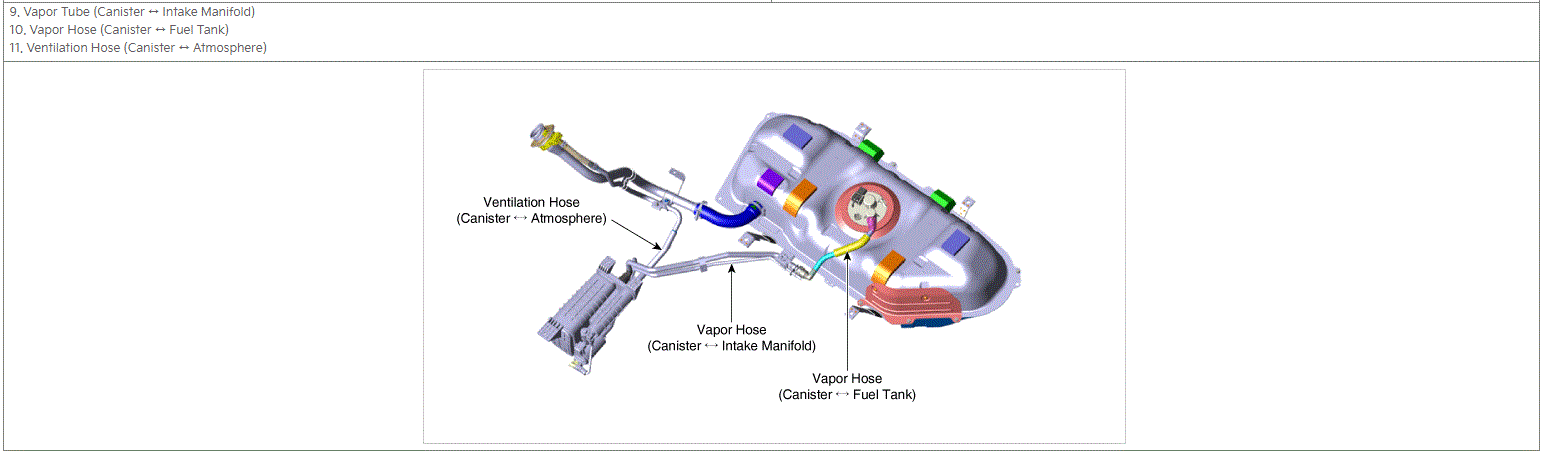

G00662651Courtesy of KIA MOTORS AMERICA, INC.
