Oil Level Sensor: Removal: Notes

Disconnect the battery negative ( - ) terminal.
Remove the engine room under cover.
(Refer to ("ENGINE ROOM UNDER COVER ")
Drain the engine oil.
(Refer to ("Engine Oil ")

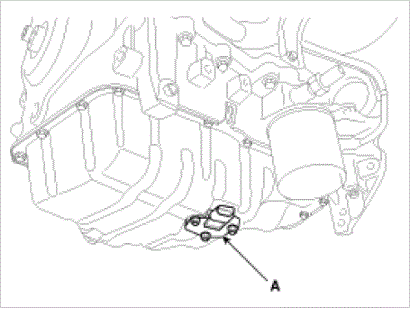

Disconnect the oil level sensor connector.
Disconnect the oil level sensor connector.
Tightening torque:

8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
