Water Pump Side

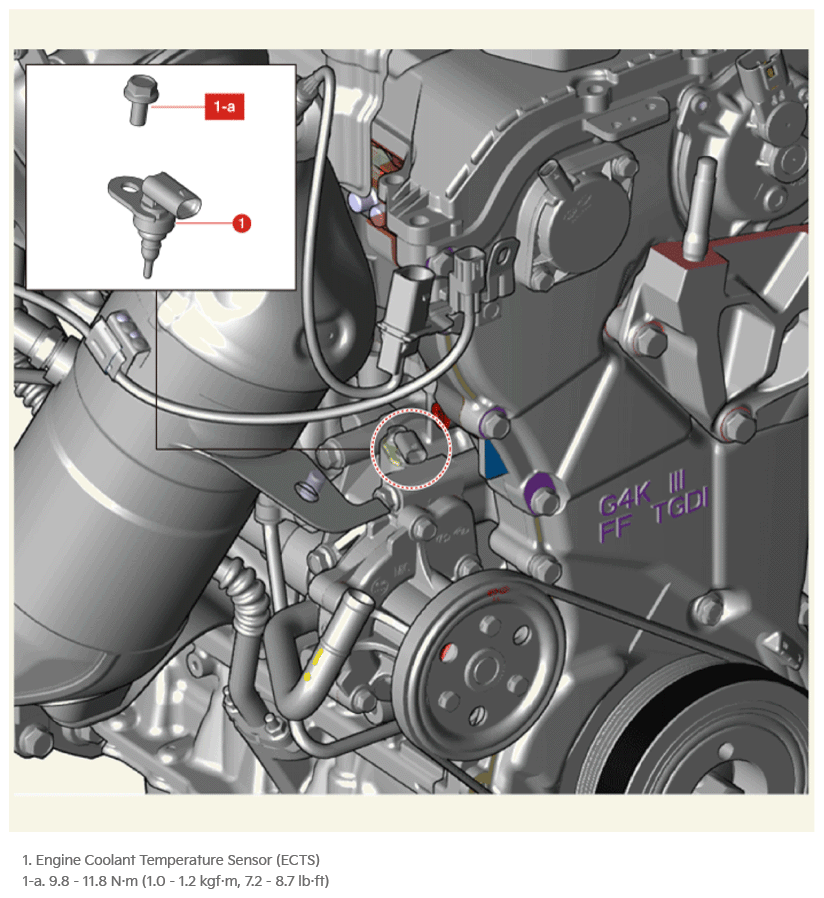

Fig 1: Engine Coolant Temperature Sensor Components Location With Torque Specification - Water Pump Side
G16515950Courtesy of KIA MOTORS AMERICA, INC.
