Component Location

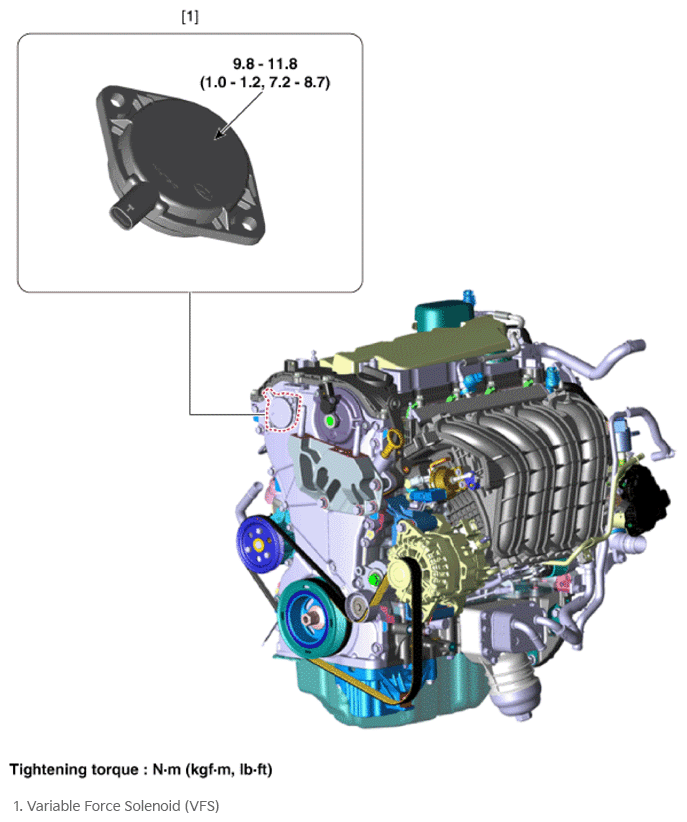

Fig 1: Variable Force Solenoid Components Location With Torque Specification
G16477675Courtesy of KIA MOTORS AMERICA, INC.
