Components Location

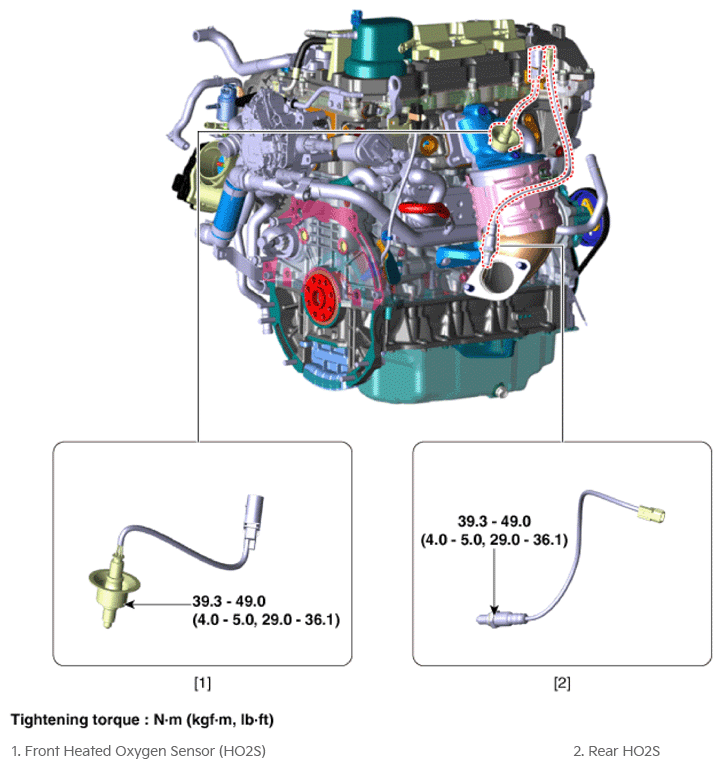

Fig 1: Heated Oxygen Sensor Components Location With Torque Specification
G16477651Courtesy of KIA MOTORS AMERICA, INC.
