Removal And Installation: Removal

  1. Disconnect the battery negative (-) terminal.

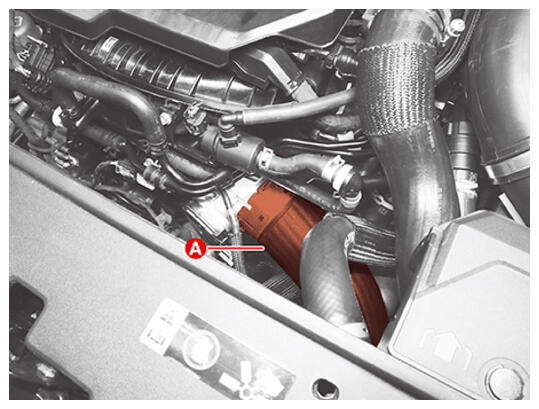

  2. Remove the intake hose (A).
    G16515965Courtesy of KIA MOTORS AMERICA, INC.

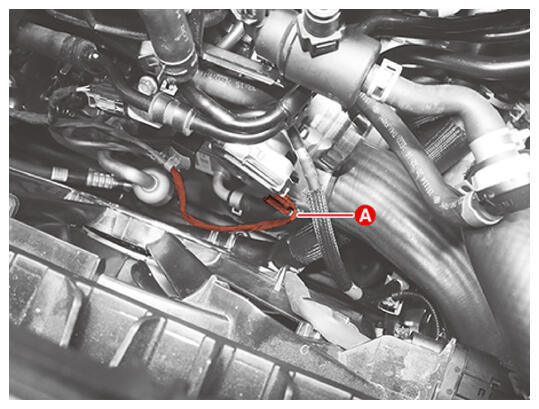

  3. Disconnect the Electronic Throttle Control (ETC) module connector (A).
    G16515966Courtesy of KIA MOTORS AMERICA, INC.

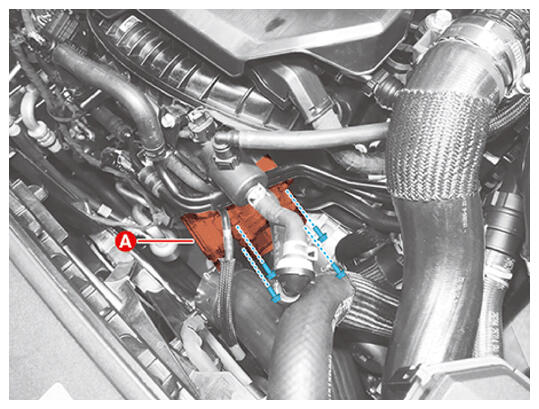

  4. Remove the ETC module (A) after removing the mounting bolts.

    Tightening torque:  9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G16515967Courtesy of KIA MOTORS AMERICA, INC.
