Engine Control System Diagnosis - 1.6L (8 Of 8)
>>
DTC U2002-00: Lost Communication With CVVD Motor Control Module
>>
DTC Information
>>
Diagnostic Flow Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

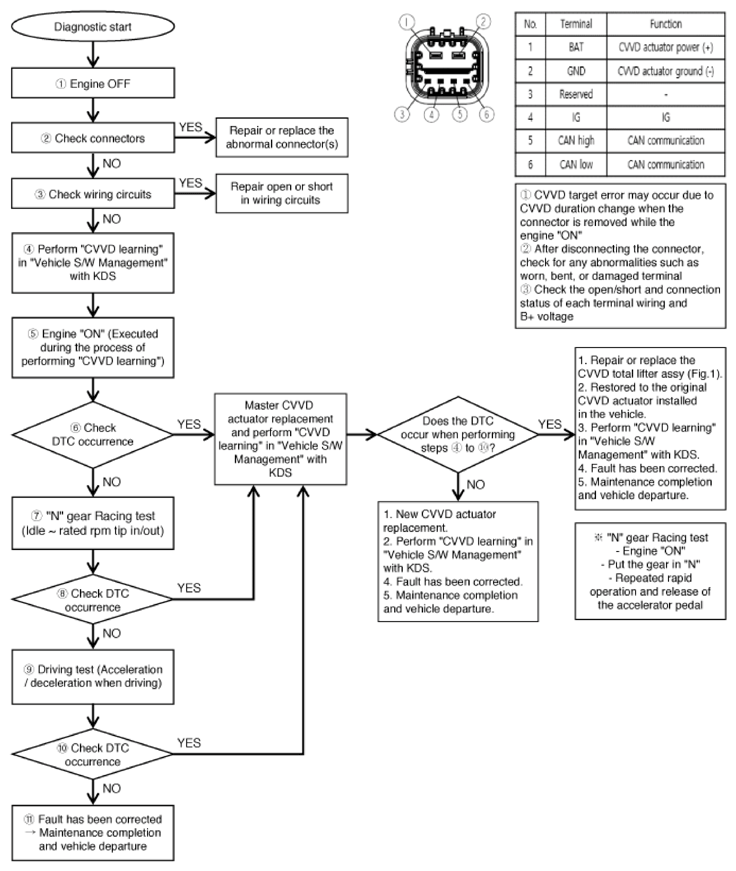

Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
