Visual Check

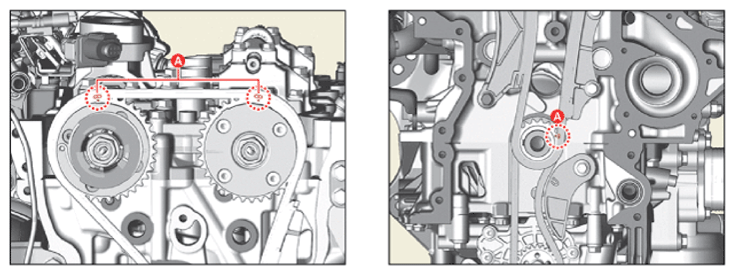

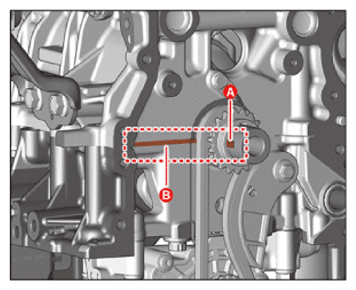

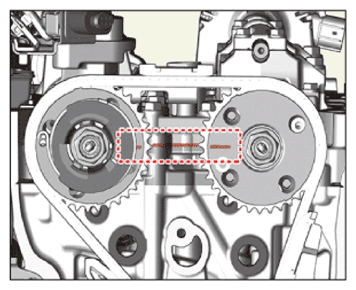

1. Check Camshaft and crankshaft alignment.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Carefully re-do this troubleshooting guide steps.
• If no problems were found with the circuits or connectors, replace the ECM and Go to "VERIFICATION OF REPAIR " procedure.

No Good

• Carefully re-do this troubleshooting guide steps.
• If no problems were found with the circuits or connectors, replace the timing chain and Go to "VERIFICATION OF REPAIR " procedure.
