Removal And Installation: Installation

  1. Install in reverse order of removal.
    NOTE:
    • Install the fuel line to the specified torque.

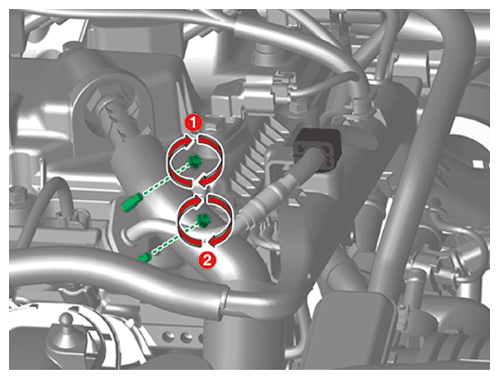

    • When installing the fuel feed tube to the delivery pipe, tighten the nuts alternately in order.

      Tightening torque:

      8.8 - 11.8 N.m (0.9 - 1.2 kgf.m, 6.5 - 8.7 lb.ft)

      G16427217Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for fuel leaks after installation.
